Features

Specifications

Applications: Automotive, Electronics, And Aerospace Sectors

Warranty: 3 Years

Work Rhythm: 5-7min / Basket

Power Supply: 380±10%/50HZ

Ultrasonic Frequency: 30-50 KHz

Drying Time: 5-7 Minutes

Basic Infomation

Place of Origin: Guangdong

Brand Name: Hongshun

Certification: CCC/CE

Model Number: HS-6368MFG

Payment & Shipping Terms

Packaging Details: film

Delivery Time: 55 days

Payment Terms: L/C,T/T

Supply Ability: 5 sets / month

Gallery

Full-Auto Vacuum Hydrocarbon Cleaning Machine with Digital Control & Long Warranty

Product Description

Full-Auto Vacuum Hydrocarbon Cleaning Machine with Digital Control & Long Warranty

Overview Of Vacuum Hydrocarbon Cleaning Machine:

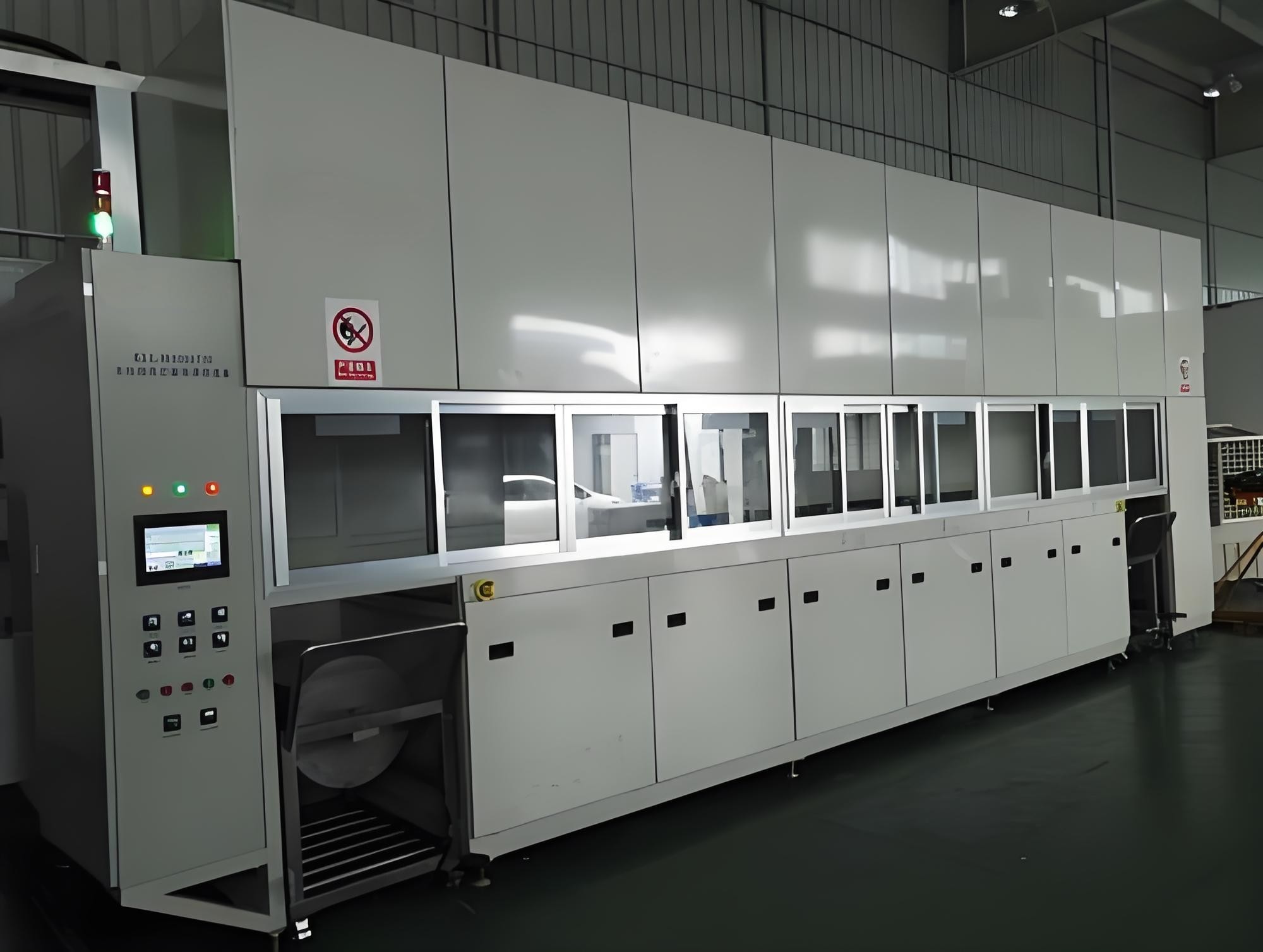

Our Full-Auto Vacuum Hydrocarbon Cleaning Machine streamlines precision part cleaning with hands-free operation, advanced digital control, and a long warranty—ideal for high-volume production in automotive, electronics, and aerospace sectors.

Its fully automated workflow covers every step: automatic part loading, vacuum-assisted hydrocarbon degreasing (penetrates blind spots to remove grease/oil), solvent regeneration, and post-cleaning drying. The intuitive digital control panel lets you preset 10+ cleaning programs, monitor real-time parameters (vacuum level, temperature), and track cycle data—ensuring consistent, repeatable results with zero manual error.

Built for durability, it comes with a 3-year comprehensive warranty (covering core components like vacuum pumps and control systems) to minimize maintenance risks. It also features 90% solvent recovery and oil separation, cutting operational costs. CE/RoHS compliant, it suits global factories. For manufacturers seeking efficient, low-risk cleaning solutions for mass-produced precision parts, this machine delivers reliability, automation, and long-term peace of mind.

Full-Auto Vacuum Hydrocarbon Cleaning Machine: Digital Control Panel Operation Guide

Operation Step	Action	Purpose	Key Tip
1. Program Selection	Tap the "Program" button, then use arrow keys to choose a preset (e.g., "Auto Gear Clean," "Electronics Mode")	Match cleaning parameters to part type	10+ preset programs cover most scenarios; custom programs can be saved via "Save" key
2. Parameter Check/Adjust	Press "Settings" to view vacuum level (50-500 mbar) and temperature (40-90℃); adjust with +/- keys if needed	Ensure compliance with part cleaning requirements	System locks unsafe adjustments (e.g., too-high temp for electronics) to avoid damage
3. Start Cleaning	Load parts into the chamber, close the door, and press the green "Start" button	Initiate fully automated workflow	Panel displays real-time progress (e.g., "Vacuuming → Cleaning → Drying")
4. Post-Cycle Check	After the "Complete" alert, press "Data" to view cycle time and solvent recovery rate	Track efficiency and maintain quality	Data auto-saves for 6 months; export via USB port for production reports
5. Troubleshooting	If an error code appears (e.g., "E1: Chamber Not Sealed"), tap "Help" for step-by-step fixes	Common issues have 1-click reset; warranty support contact is stored in "Support" tab

Consumption of Vacuum Hydrocarbon Cleaner for reference:

order number	name	wastage	remarks
1	hydrocarbons	Add as required	It depends on the amount of cleaning
2	Filter cotton core	About 12 per month	Replace as required
3	Heat medium oil	100L/2500 hours	Replace every 2500 hours of work
4	Vacuum pump lubricating oil	0.2L/200 hours	Check and add every 200 hours of work
5	power consumption	About 30kw/hour	average value
6	compressed air	400 NL/min	Drive use (cylinder, pneumatic valve)

For a complete technical solution Of Vacuum Hydrocarbon Cleaning Machine, please contact me. We will customize the design based on your product technical requirements and factory layout.

Our typical customers:

Full-Auto Vacuum Hydrocarbon Cleaning Machine with Digital Control & Long Warranty 1
