Cost-Effective Aluminum Profile Vertical Powder Coating Line for Southeast Asia Factories

ブランド名:	Hongshun
モデル番号:	HS-3600VPQ
MOQ:	1セット
価格:	$20,000 to $50,000
梱包の詳細:	膜
支払い条件:	L/C、T/T

起源の場所:

CCC/CE

ドキュメント:

アプリケーション:

アルミニウムプロファイル

最大ワークサイズ:

200mm×200mm×H7000mm

コンベアチェーンの標準速度:

3500mm/min（1000mm/min - 5000mm/min可変周波数調整可能）

380±10％/50Hz

標準ワークの重量:

熱リレー:

シュナイダー（フランス）

スプレールームフィルター要素素材:

Toray East（日本）

供給の能力:

5セット/月

ハイライト:

アルミプロファイル粉末塗装ライン

垂直粉末塗装機

保証付き自動粉体塗装ライン

製品説明

Cost-Effective Aluminum Profile Vertical Powder Coating Line for Southeast Asia Factories

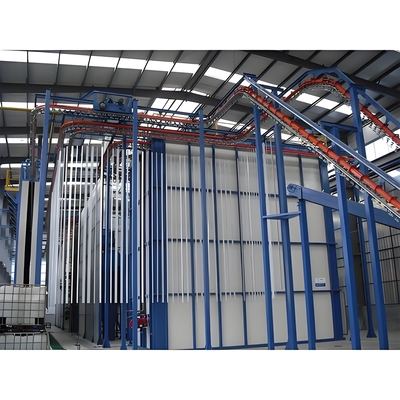

Vertical Powder Coating Production Line Overview:

Our Cost-Effective Aluminum Profile Vertical Powder Coating Line is tailored to meet the budget and operational needs of Southeast Asia factories, delivering reliable performance for aluminum profiles (doors, windows, furniture frames) without compromising quality.

Designed for cost efficiency, it features simplified yet robust components—reducing initial investment by 20% vs. premium models—while maintaining core functions: automated pre-treatment (tackling Southeast Asia’s high-humidity-related grime), electrostatic powder spraying (92%+ powder utilization to cut material costs), and a durable curing oven optimized for local power conditions (compatible with 220V/380V, 50/60Hz).

The vertical layout saves 35% floor space (ideal for compact Southeast Asia workshops) and handles high throughput (up to 450kg/h) to match regional mass-production demands. It resists corrosion from humid climates, ensuring long service life. For Southeast Asia manufacturers prioritizing affordability, adaptability, and consistent aluminum profile finishes, this line offers unbeatable value—perfect for local construction and furniture supply chains.

Design principles and characteristics:

4, The suspension transmission system adopts the brand of domestic professional chain manufacturers, and the chain is stable, reliable and durable.

5, The pretreatment tank is made of imported low temperature resistant PP (polypropylene) plate, and the shed body is made of PVC composite fiber to prevent corrosion.

6, The powder spraying recovery system adopts the new patented large cyclone secondary separation technology, and the single separation efficiency is up to about 98%, which can help customers save a lot of powder.

Energy consumption reference of Vertical Powder Coating Production Line:

SN.	device name	Maximum installed capacity	Maximum gas supply ( natural gas )
1.	conveyer system	6KW/H
2.	pretreatment	61KW/H
3.	Drying oven (proportion combustion machine) 1 set	15KW/H	30M³/H
4.	Spraying system (1 set)	75W/H
5.	Curing furnace (proportion combustion machine) 1	15KW/H	90M³/H
6.	Elevator, upper and lower material conveying mechanism	12KW/H
7.	Floc incineration unit (2 burners)	23KW/H	25M³/H
8.	amount	207KW/H	145M³/H

For a complete technical solution Of Vertical Powder Coating Production Line Equipment For Aluminum Profiles, please contact me. We will customize the design based on your product technical requirements and factory layout.

Our typical customers:

Cost-Effective Aluminum Profile Vertical Powder Coating Line for Southeast Asia Factories 1

About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
