order number

name

content

1

 device name

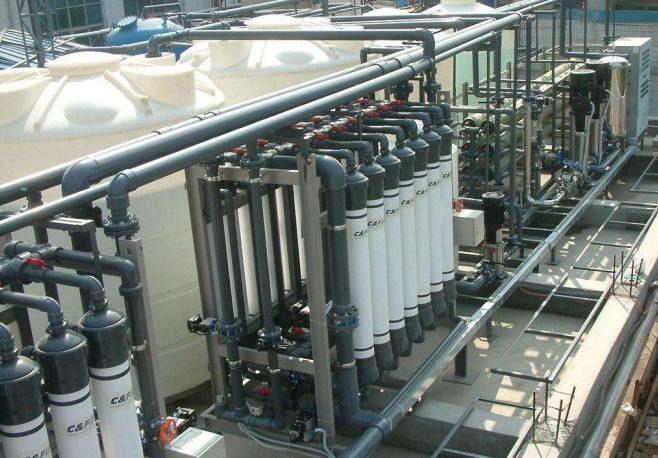

10t/D reclaimed water equipment (1 set).

2

Water quality of production

Conductivity is less than or equal to 10μS/cm; (monitoring by online instrument; temperature 25℃)

3

Raw water quality

Conductivity is less than or equal to 400μS/cm, flow rate is 2t/h.

4

capacity

1t/h, temperature 25℃.

5

percent recovery

Primary reverse osmosis: 55-65%.

6

 technology

Pre-treatment sand filter, carbon filter, UF filtration, precision filter, RO reverse osmosis.

7

Method of sterilization

Sand carbon automatic backwashing, ultraviolet sterilization.

8

 control method

PLC+HIM automatic control.

9

Scope of equipment

From the inlet of the raw water tank to the outlet of RO (excluding the terminal water supply pipe).

order number

 name

 content

1.

headwaters

The reclaimed water, with a flow rate of 2t/h, pressure 0.2~0.3MPa and pipe diameter φ25, is connected to the raw water tank beside Party B.

2.

source

The normal operating power of the equipment is 4kW, voltage 380V,50Hz, three-phase five-wire, and it is connected to the electrical box designated by Party B.

3.

Collection pool

Customer-built.

4.

oil-free compressed air

not have.

5.

Industrial steam

not have.

6.

Drain or floor drain

The drainage ditch is 200mm wide and 300mm deep, which shall be completed by the client.

7.

Floor area and passageway

Provide a site that meets the installation conditions of the equipment, estimated to be 10 square meters. The floor load-bearing capacity and access channel should meet the installation requirements of the equipment.

8.

other

1. Responsible for the water and electricity charges incurred during installation and commissioning

2. Responsible for the pre-clearance of the site temporarily occupied by the supplier and the coordination between the supplier and other construction units

3. Provide the supplier with temporary facilities and material placement site, and the buyer shall be obliged to assist the supplier in the safety of materials
