Environment Friendly Automated Powder Coating Line Metal Furniture Powder Coating Unit

Brand Name: Hongshun
Model Number: HS-2360CPP
MOQ: 1 set
Price: $20,000 to $50,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan
Certification:
CCC/CE
Workpiece Name:
Metal Furniture
Maximum Workpiece Size Can Be Used:
L1500*W500*H1200mm Maximum Product Size
Process Speed:
2 Sets
Transmission Seat:
Heavy 5T Chain 480m
Hanging Fixture Spacing:
150mm
Control The Power:
Single Phase AC220V-50Hz Single Phase + Ground Wire
Drive Power:
Three-phase AC380V-50Hz Three-phase Five-wire System
Supply Ability:
5 sets/month
Highlight:

Environment Friendly Automated Powder Coating Line

,

Metal Furniture Automated Powder Coating Line

,

Metal Furniture Powder Coating Unit

Product Description
Environment Friendly Automated Powder Coating Line for Metal Furniture
This environmentally conscious automated powder coating line is specifically engineered for metal furniture applications. Featuring a closed-loop powder recovery system, it minimizes powder waste while delivering durable, high-quality finishes. The system includes a well-ventilated powder booth and energy-efficient curing oven, providing both operational efficiency and environmental responsibility.
Transmission System Specifications
Double Drive Configuration
  • Horizontal all-in-one motor: 4kw × 2 (dual drive special)
  • Hoist box: 2 sets
  • Control system: 2 sets
  • Frequency converter: 4kw × 2 sets
  • Transmission seat: 2 sets
  • Belt pulley: 2 sets
  • Chain wheel: 2 sets / chain: 2 types
  • Triangle belt: 4 types
  • Hardware accessories: 1 type
  • Hanging device: 2900 sets of fish scale hanging device
  • Secondary lifting equipment: Provided by customer or custom-designed
Powder Coating Process Flow
Loading → Spray pre-degreasing and residue removal → Main degreasing (swimming + ultrasonic + heating cleaning) → Spray water washing (I) → Spray water washing (II) → Activation by swimming → Spray washing (3) → Spray washing (4), swimming type passivation, spray washing (5) → Spray washing (6) → Pure water cleaning + adjustable automatic blow water, water drainage, dehydration drying furnace, natural cooling, online roasting → Belt anti-pull installation baking → PP board automatic coating powder spraying cabinet → Hurricane recovery powder supply center → Secondary recovery system → Grinding cabinet → Curing oven drying → Natural cooling → QC inspection → Unloading → Packaging
Pretreatment Process Timing
Process Time Process Time
Spray pre-oil removal 1.5 min The swimming style main activated 4-5 min
Swimming type main oil removal 4-5 min Spray washing 3 1.5 min
Spray washing 1 1.5 min Spray washing 4 1.5 min
Spray washing 2 1.5 min Swimming type passivation 4-5 min
Spray washing 5 1.5 min Spray washing 6 1.5 min
Pure water wash 1.5 min

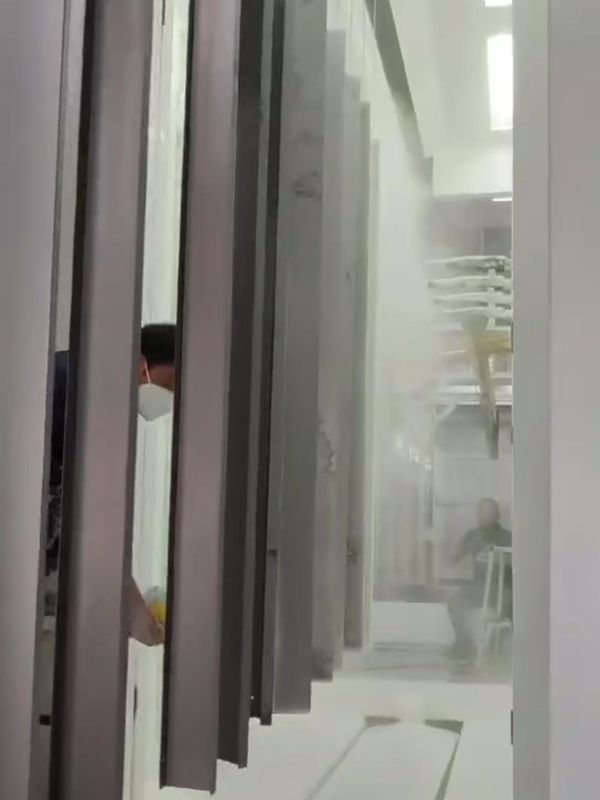

Application Examples
Environment Friendly Automated Powder Coating Line Metal Furniture Powder Coating Unit 0 Environment Friendly Automated Powder Coating Line Metal Furniture Powder Coating Unit 1 Environment Friendly Automated Powder Coating Line Metal Furniture Powder Coating Unit 2
Our engineering team works closely with clients to develop customized solutions based on specific technical requirements and site dimensions. We prioritize layout optimization, equipment aesthetics, and operational safety while ensuring smooth material flow and maximizing product quality throughout the manufacturing process.
