Energy Efficient Automated Powder Coating Line Compact Saving Space

Brand Name: Hongshun
Model Number: HS-SP060CPP
MOQ: 1 set
Price: $20,000 to $50,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan
Certification:
CCC/CE
Workpiece Name:
Small - Scale
Maximum Workpiece Size Can Be Used:
L300*W100*H300mm Maximum Product Size
Ultrasonic Power:
2.4kw
Hanging Fixture Spacing:
150mm
Control The Power:
Single Phase AC220V-50Hz Single Phase + Ground Wire
Drive Power:
Three-phase AC380V-50Hz Three-phase Five-wire System
Supply Ability:
5 sets/month
Highlight:

Energy Efficient Automated Powder Coating Line

,

Compact Automated Powder Coating Line

,

Saving Space Automatic Powder Coating Machine

Product Description
Energy Efficient Automated Powder Coating Line - Compact Space-Saving Design
Our cost-effective Automated Powder Coating Line is specifically designed for small-scale manufacturing operations. Featuring a compact structure that saves valuable floor space and energy-efficient operation that reduces operational costs, this line provides an affordable powder coating solution for small metal or plastic products in batch production.
Automated Powder Coating Line Overview
Small-scale manufacturers will appreciate our cost-effective Automated Powder Coating Line. The system features:
  • Compact structure for space optimization
  • Energy-efficient operation reducing operational costs
  • Simple yet effective powder spraying mechanism
  • Ideal for coating small metal or plastic products in batches
  • Perfect for handicrafts, small tools, and similar items
Ultrasonic System Specifications
  • Ultrasonic cleaning tank size: D100×L400×H1000mm × 16 sets
  • Ultrasonic material: SUS304#2.5T stainless steel
  • Tank surface treatment: Electroplating hard lo
  • Number of shock heads: 48
  • Ultrasonic power: 2.4kW
  • Ultrasonic frequency: 28kHz
Powder Coating Process Flow
Loading → Spray pre-degreasing and residue removal → Main degreasing (swimming + ultrasonic + heating cleaning) → Spray water washing (I) → Spray water washing (II) → Activation by swimming → Spray washing (3) → Spray washing (4) → Swimming type passivation → Spray washing (5) → Spray washing (6) → Pure water cleaning + adjustable automatic blow water → Water drop removal → Dehydration drying furnace → Natural cooling → Online roasting → Under belt anti-pull installation baked → PP board automatic coating powder spraying cabinet → Hurricane recovery powder supply center → Secondary recovery system → Grinding cabinet → Curing oven drying → Natural cooling → QC inspection → Unloading → Packaging
Pretreatment Process Timing
Process Time Process Time
Spray pre-oil removal 1.5 min Swimming type main activated 4-5 min
Swimming type main oil removal 4-5 min Spray washing 3 1.5 min
Spray washing 1 1.5 min Spray washing 4 1.5 min
Spray washing 2 1.5 min Swimming type passivation 4-5 min
Spray washing 5 1.5 min
Spray washing 6 1.5 min
Pure water wash 1.5 min
Our Typical Customers

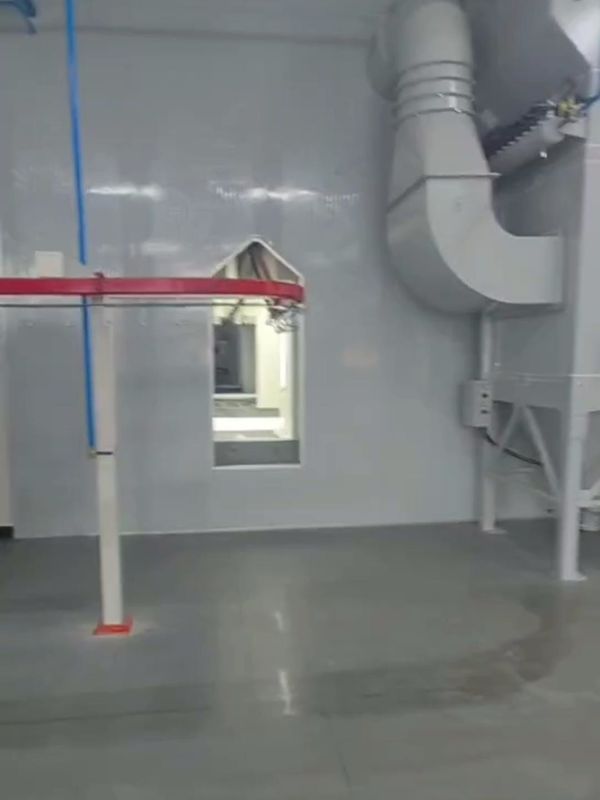

Automated powder coating line installation for small-scale manufacturing Compact powder coating system in operation Finished products from automated powder coating process
Our production line process scheme incorporates advanced technology while fully meeting the quality requirements of your products, ensuring consistent, high-quality finishes for your manufacturing operations.
