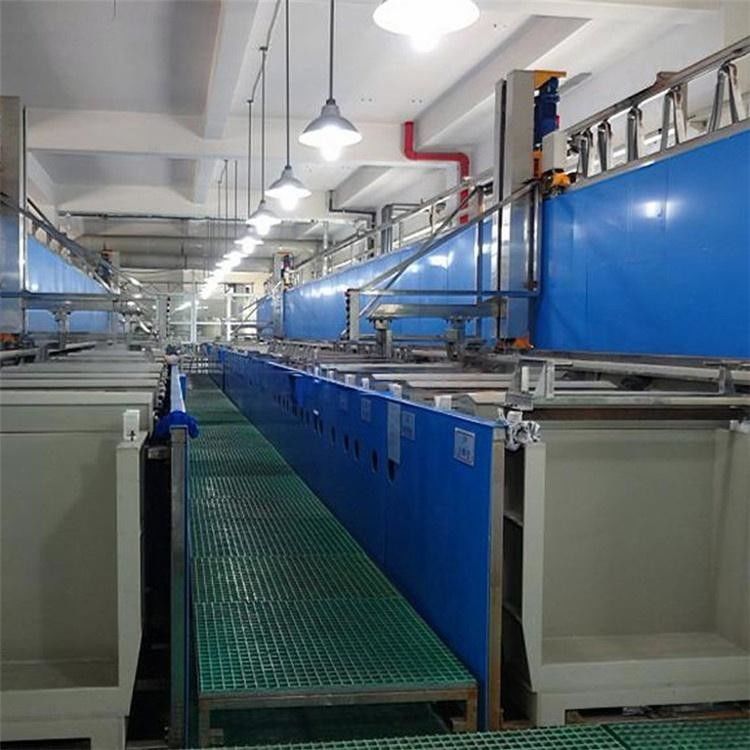

Sulfuric Acid Anodizing Line (Type II Anodizing) For Electronics (phone casings), architectural extrusions, bicycle parts
Sulfuric Acid Anodizing Line Overview:
Process: Aluminum is immersed in a sulfuric acid electrolyte under low voltage (12–24V).
Characteristics:
Oxide Layer Thickness: 5–25 microns, suitable for most commercial applications.
Surface Finish: Transparent, allowing metal’s natural texture to show; can be dyed in various colors.
Corrosion Resistance: Good, but less than hard anodizing.
Applications: Electronics (phone casings), architectural extrusions, bicycle parts.
Advantages: Cost-effective, widely used, and compatible with dyeing.
Material list for Sulfuric Acid Anodizing Line equipment:
|
device name
|
Ingredients specifications
|
place of production
|
brand
|
remarks
|
|
gangway
|
The main structure is made of A3 square tube and angle timber, and the structure is in the form of a landing.
|
domestic
|
|
|
|
Pedal 15mm fiberglass shed grid strong grid plate
|
Guangzhou
|
Guangzhou glass steel plant
|
|
|
filtering machine
|
Type: Precision single barrel filter magnetic suction filter machine material PP and SS cylinder
|
Dongguan
|
national treasure
|
Taiwan
|
|
pipe system
|
All pipe fittings are configured with standard products
All the water stop valves are double actuated PVC ball valves
|
Guangzhou
|
South Asia Taiwan
|
South Asia Plastics (Guangzhou) Co., LTD
|
|
commutator
|
Type: three-phase oil-cooled SCR control rectifier type
Output voltage: 0-25V (volt)
Output current: 3000A
|
Guangzhou
|
Jewel
|
Guangzhou
|
|
Exhaust air pipe
|
Main air pipe: 6MM PP plate is used, and the pipe diameter is Φ500mm
Suction hood: PP board is used, 8mm thick washing tower plate is 10mm thick
|
Hebei
|
Lida
|
|
|
Stainless steel tank
|
Material: SS304/3mm thick bending chamfer welding
|
Foshan
|
Tricyclic
|
|
|
Plastic tank
|
Material: PP15mm welding manufacturing
|
Taiwan
|
Lida
|
enter port
|
|
Whole machine rack
|
All the racks are made of A3 square tube, and the leading rail is made of stainless steel flat steel
|
Foshan
|
Respect to Yuan Hengyu
|
|
|
Portal crane
|
The body is made of SS steel plate, bent and welded
|
Foshan
|
Tricyclic
|
|
Italian worm gear electromagnetic brake motor is adopted
|
Italy
|
Simic
|
enter port
|
|
Electronic control system
|
The intermediate relay of Omron PLC series is selected in Japan
|
Shanghai
|
OMRON
|
Japan
|
|
AC contactor
|
Shanghai
|
Schneider
|
Germany
|
|
frequency transformer
|
Shanghai
|
Mitsubishi
|
Japan
|
|
Kunlun Tongtai touch screen
|
Beijing
|
Kunlun is in a state of flux
|
China
|
|
thermostat
|
Digital display temperature control and sensor
|
Shanghai
|
OMRON
|
Japan
|
|
cooling-water machine
|
The compressor is American Taikang compressor or French Myoyle
|
Guangdong
|
Dian Electric
|
|
For a complete technical solution of Sulfuric Acid Anodizing Line, please contact me. We will customize the design based on your product technical requirements and factory layout.
Our typical customers:
After-sales technical services of Sulfuric Acid Anodizing Line:
1. After the equipment is delivered and put into use, will provide technical support and service for 12 months free of charge (except consumables), and the manufacturer will be responsible for free maintenance of parts damaged by non-human operation errors. After the expiration of the warranty period,will continue to provide lifetime paid technical support.
2. Provide Chinese and English documents for equipment installation, operation and maintenance to facilitate follow-up support for operator training.
3. Provide mechanical and electronic parts for one year.
4. Provide a copy of the warranty stating the effective date of the warranty, the coverage and the seller's contact person.
5. Engineers will monitor the equipment on site within 6 months after delivery and operation.
