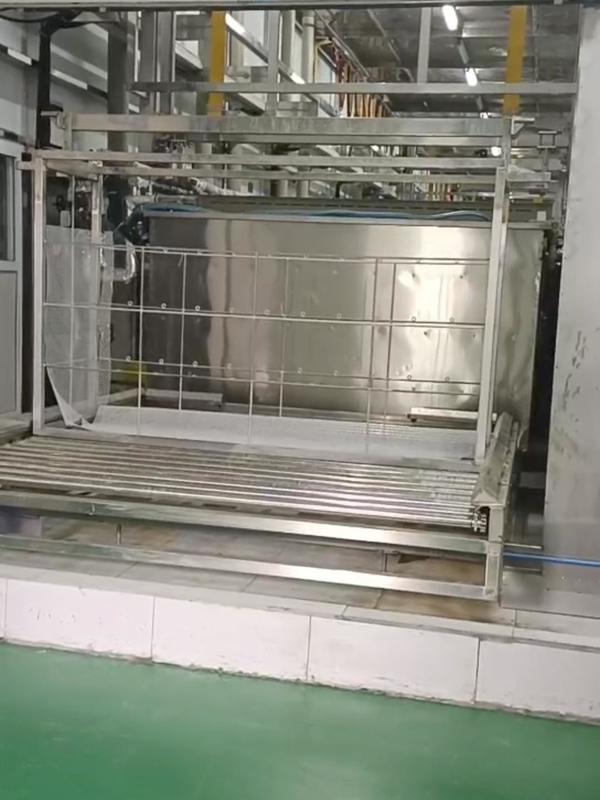

Ultra Precision Cleaning Passivation Line Impact Resistance For Medical Devices

Brand Name:	Hongshun
Model Number:	HS-6610STP
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Applications:

Medical Devices

Pure Water:

Consumption Of 5~15L Per Minute

Water Pressure:

0.3Mpa

Main Power Supply:

380±10%/50HZ

Electronic Control System:

Omron PLC

Ultrasonic Frequency:

28KHZ

Supply Ability:

5 sets/month

Highlight:

Ultra Precision Passivation Cleaning Process

Medical Devices Passivation Cleaning Process

Impact Resistance Chemical Cleaning Machine

Product Description

Ultra Precision Cleaning Passivation Line for Medical Devices

Ensure the biocompatibility of medical devices with our state-of-the-art passivation line. Using micro-bubble cleaning and non-acidic passivation technology, it effectively removes bacteria without compromising device integrity. The Class 100 cleanroom compatibility and comprehensive traceability features meet the most stringent medical industry standards.

Core Technologies: ultra-precision medical passivation line, micro-bubble cleaning, cleanroom-compatible equipment

Passivation Line Process Flow

Manual feeding
Ultrasonic degreasing No.1
Ultrasonic degreasing No.2
Ultrasonic washing No.3
Passivation No.4
Ultrasonic pure water washing No.5
Pure water washing No.6
Manual water blow-off
Tunnel furnace drying
Convey to full inspection platform

Technical Specifications: Pure Water Ultrasonic Washing Tank No.5

Parameter	Specification
Quantity	One
Wash Tank Structure	Inner tank size: L815×W820×H1550mm (effective use size)
Material Quality	SUS304, 2MM thick stainless steel plate with stainless steel reinforcement
Configuration	Liquid inlet, bottom discharge port, external insulation cotton
Working Medium	Pure water
Ultrasonic System - Vibration Plate	Chromium plated working surface, bottom vibration method, 1 plate per tank with 60 vibration units, 3000W power, 28KHZ frequency, continuously adjustable output
Ultrasonic Generator	Excitation method with scanning circuit, continuously adjustable output power, automatic workpiece detection for energy efficiency

For a complete technical solution of Passivation Line, please contact us. We will customize the design based on your product technical requirements and factory layout.

Our Typical Customers

About Our Company

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. We are a professional manufacturer of high-precision surface treatment equipment specializing in:

Ultrasonic cleaning equipment
Vacuum hydrocarbon cleaning machines
High-pressure spray cleaning machines
Spraying lines
Passivation acid washing equipment
Anodizing equipment
Electroplating equipment
Industrial pure water machines
Reclaimed water reuse equipment
Tunnel drying furnaces and peripheral equipment

We provide turnkey surface treatment projects with integrated R&D, manufacturing, installation, training, and after-sales services supported by a complete quality management system and strong technical capabilities.
