High Speed Automated Passivation Systems Citric Passivation Equipment With Drying Oven

Brand Name: Hongshun
Model Number: HS-6810STP
MOQ: 1 set
Price: $20,000 to $50,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan
Certification:
CCC/CE
Applications:
Automotive Parts
Heating Power:
30KW
Water Pressure:
0.3Mpa
Main Power Supply:
380±10%/50HZ
Inner Tank size:
L815×W820×H1550mm
Ultrasonic Frequency:
28KHZ
Supply Ability:
5 sets/month
Highlight:

High Speed Automated Passivation Systems

,

Drying Oven Automated Passivation Systems

,

Drying Oven Citric Passivation Equipment

Product Description
High Speed Automated Passivation Systems with Drying Oven
Streamline your automotive manufacturing process with our high-speed cleaning and passivation line featuring integrated drying capabilities. This automated system significantly reduces processing time while maintaining superior quality standards.
Core Applications: high-speed automotive passivation line, rapid-cycle cleaning, automatic loading system
Processing Sequence
  • Manual feeding
  • Ultrasonic degreasing stage 1
  • Ultrasonic degreasing stage 2
  • Ultrasonic washing stage 3
  • Passivation treatment stage 4
  • Ultrasonic pure water washing stage 5
  • Pure water washing stage 6
  • Manual water blow-off
  • Tunnel furnace drying
  • Transfer to full inspection platform
Tunnel Drying System Specifications
Component Specification Description
System Type 4-3-7 Tunnel Drying Approximately 6-meter tunnel furnace length
Construction Stainless Steel Chamber Designed to accommodate multiple products simultaneously
Airflow Design Top Intake, Bottom Return Pneumatic chamber covers at inlet/outlet prevent heat dissipation
Drying Principle External Heating System Circulating air via heat-resistant high-pressure air pump eliminates residual moisture and prevents water stains
Circulation Fans Centrifugal Type Three units, 1.5KW power each
Heating System Infrared Heating Tubes 30KW total heating capacity
Filtration High Efficiency Air Filter Installed at air inlet for clean air supply
Material Transfer System
Component Specification Description
Conveyor Structure Electric Stainless Steel Chain Baffles on both sides with induction switches at both ends
Motor System Taiwan "City State" Brake Deceleration 5HP power, PLC-controlled automatic feeding/discharging
Cooling Section Post-Heating Position Located at rear of tunnel heating platform
Cooling Method Top-Mounted Cooling Fan Downward airflow cools workpieces effectively
Custom Solutions Available: Contact us for complete technical specifications. We provide customized designs based on your product requirements and factory layout.

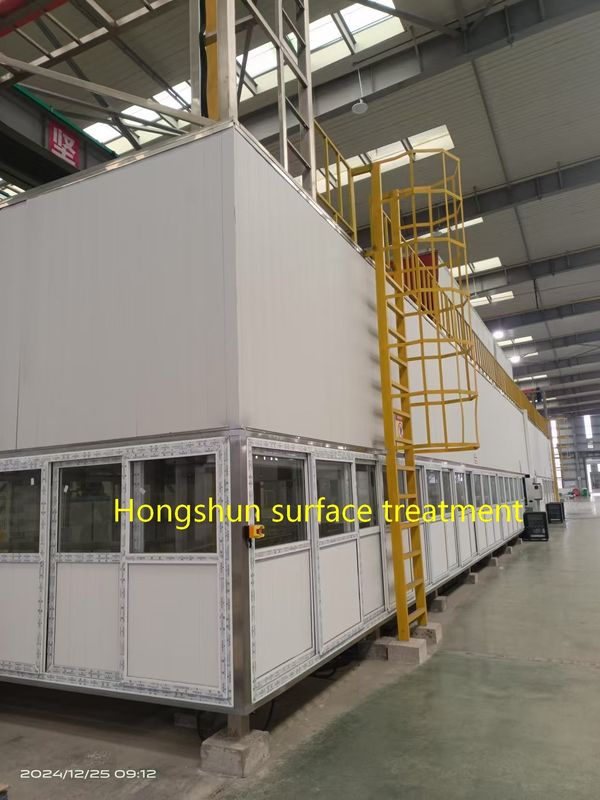

Application Examples
High Speed Automated Passivation Systems Citric Passivation Equipment With Drying Oven 0 High Speed Automated Passivation Systems Citric Passivation Equipment With Drying Oven 1 High Speed Automated Passivation Systems Citric Passivation Equipment With Drying Oven 2
Manufacturer Profile
Dongguan Hongshun Automation Equipment Co., Ltd., located in Dongguan City - the global manufacturing hub, specializes in high-precision surface treatment equipment manufacturing. Our comprehensive product range includes ultrasonic cleaning systems, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation and acid washing equipment, anodizing systems, electroplating equipment, industrial pure water machines, water reclamation systems, tunnel drying furnaces, and supporting equipment. We deliver complete turnkey surface treatment solutions with integrated R&D, manufacturing, installation, training, and after-sales services backed by robust quality management systems and technical expertise.
