Automated Passivation Systems

Automated Chemical Cleaning Line High Precision 50HZ For Solar Panel Frame

All Category

Vacuum Hydrocarbon Cleaning Line

Reclaimed Water Reuse Equipment

Consumable Items

Mr. Jesse Tang

hongshunautomation@gmail.com

8613929185382

8613929185382

Contact Now

Automated Chemical Cleaning Line High Precision 50HZ For Solar Panel Frame

Brand Name:	Hongshun
Model Number:	HS-2810STP
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Applications:

Solar Panel Frame

Basket Transfer Time:

Less Than 1 Minute

Water Pressure:

0.3Mpa

Main Power Supply:

380±10%/50HZ

Inner Tank size:

L815×W820×H1550mm

Ultrasonic Frequency:

28KHZ

Supply Ability:

5 sets/month

Highlight:

50HZ Chemical Cleaning Line

Solar Panel Frame Chemical Cleaning Line

High Precision Chemical Cleaning Machine

Product Description

Automated Chemical Cleaning Line High Precision 50HZ For Solar Panel Frame

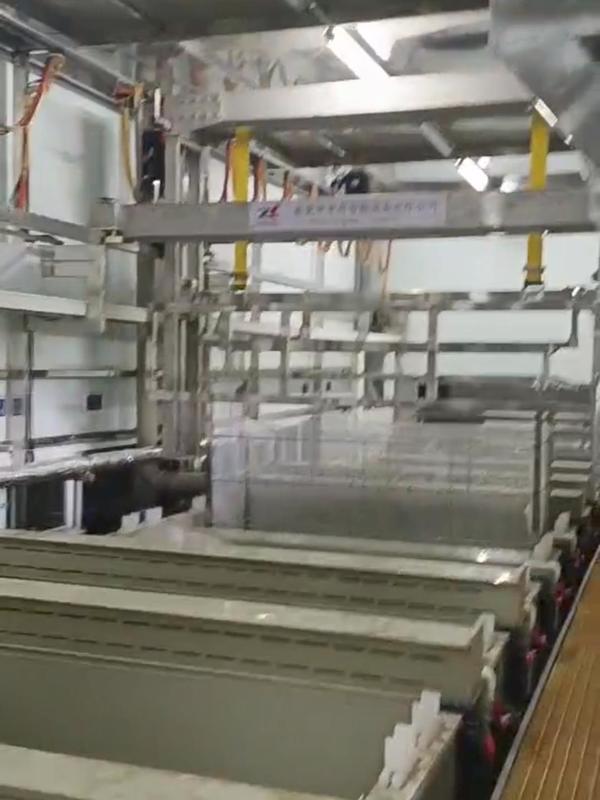

Automated Cleaning & Passivation Line for Solar Panel Frame

Enhance solar panel durability using our intelligent production line. The AI-powered quality control system detects defects in real-time, while UV-resistant cleaning agents and passivation protect frames from outdoor elements.

Core Keywords: AI-driven solar passivation line, intelligent quality control, UV-resistant cleaning

Process of Automated Passivation Line

Manual feeding
Ultrasonic degreasing No.1
Ultrasonic degreasing No.2
Ultrasonic washing No.3
Passivation No.4
Ultrasonic pure water washing No.5
Pure water washing No.6
Blow water manually
Tunnel furnace drying
Convey to the full inspection platform

Partial Parameter Description of Automated Passivation Line

Single-arm Manipulator

Parameter	Specification
Quantity	1 set
Structure Form	Transmission mode: Gantry robot, sling, polyamide walking wheel, guide rail and motor combination transmission
Run Mode	One basket is grabbed at a time, and one manipulator automatically completes the transfer of the whole cleaning basket frame through the program
Material	Outer frame and lifting arm made of SUS304 stainless steel
Basket Transfer Time	Less than 1 minute, with deceleration buffer function when moving horizontally and descending
Lifting Mechanism	Driven by sling with anti-reversal function
Transverse Movement	Polyamide walking wheel + gear and rack guide transmission
Safety Features	Sound and light alarm device, anti-collision safety protection device and limit device
Load Capacity	30~50KG
Transmission Motor Brand	Mitsubishi or Xinjie servo
Speed of Rise and Fall	5~7m/min (variable frequency speed regulation)
Speed of Transverse	6~12m/min (frequency conversion speed regulation)
Functions	Pulsating (manual) action, automatic operation, automatic reset system, pause and emergency stop

For a complete technical solution of Automated Passivation Line, please contact us. We will customize the design based on your product technical requirements and factory layout.

Our Typical Customers

About Us

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Our main products include: ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. We also maintain a complete quality management system and strong technical strength.
