Bullet Casings Hydrocarbon Cleaning Machine Roller Baskets Surface Treatment Line

Brand Name: Hongshun
Model Number: HS-6568AFG
MOQ: 1 set
Price: $20,000 to $50,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong
Certification:
CCC/CE
Applications:
Stamping Factories
The Cleaning Medium:
Hydrocarbon Solvents
Work Rhythm:
5-7min / Basket
Power Supply:
380±10%/50HZ
Ultrasonic Frequency:
30-50 KHz
Drying Time:
4 Minutes
Steam Generator:
300L
Supply Ability:
5 sets / month
Highlight:

Bullet Casings Hydrocarbon Cleaning Machine

,

Roller Baskets Hydrocarbon Cleaning Machine

,

Roller Baskets Surface Treatment line

Product Description

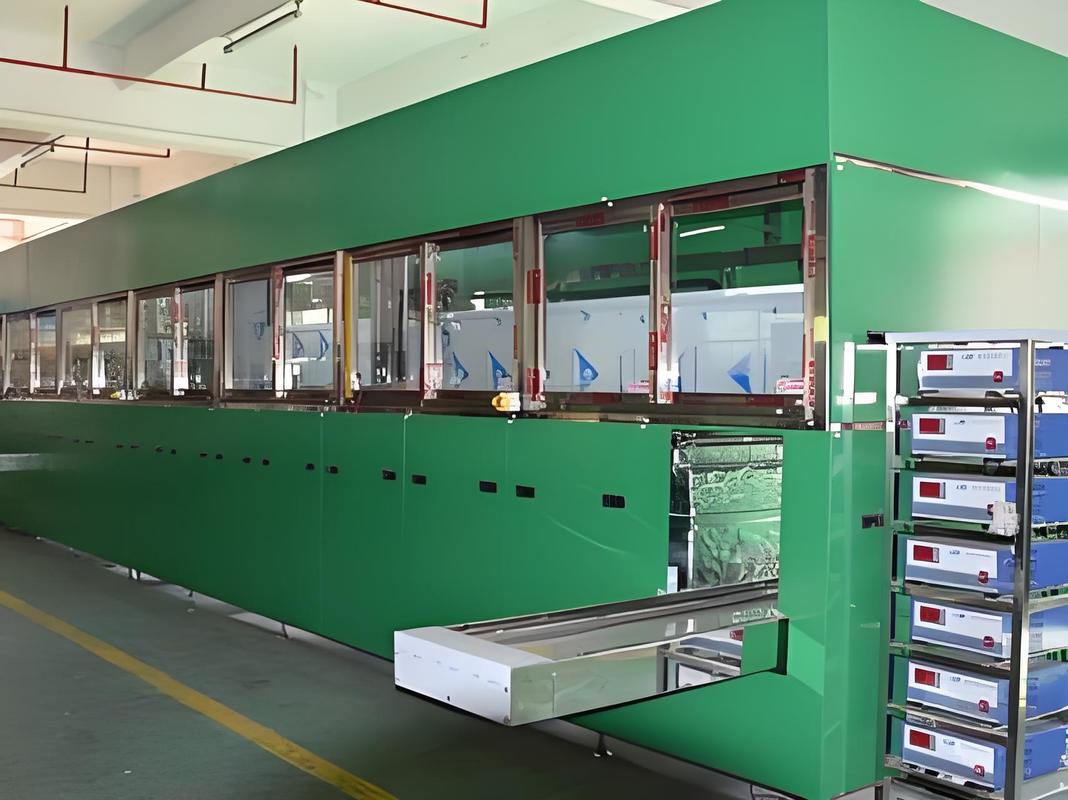

Bullet Casings Hydrocarbon Cleaning Machine with Roller Baskets
This vacuum ultrasonic hydrocarbon cleaning machine with roller baskets specializes in thorough oil removal and guaranteed dryness for bullet casings. The system combines 30-50kHz ultrasonic waves with high-purity hydrocarbons to dissolve machining oil, lubricants, and gunpowder residues from casing walls and primer pockets, leaving no residue.
Key Features & Benefits
  • Rotating roller baskets (10-15rpm) agitate casings for complete surface contact and oil elimination
  • Dual-stage drying system combines vacuum suction and 65℃ hot air for 100% moisture removal in 3 minutes
  • Processes 800-1000 casings per hour for high-volume ammunition production
  • 95% solvent recovery system balances deep cleaning efficiency with operational costs
  • Proven to reduce misfires by 30% through consistent oil-free, dry casing production
Technical Specifications
Order Number Project Description
1 Device Name Vacuum Ultrasonic Hydrocarbon Cleaning Machine
2 Unit Type HS-6568AFG
3 Run Mode Robot hand carries basket, automatic continuous cleaning
4 Tank Size 650mm (W) × 580mm (D) × 550mm (H)
5 Tank Volume Approximately 160L
6 Manipulator One set of robot arms
7 Steam Generator 300L
8 Distillation Recovery Unit 300L
9 Cooling System Air-cooled industrial chiller (15HP)
10 Material Cooling 250W multi-wing fan
11 Fan 400W multi-wing fan
12 Service Characteristic Allows 20 hours/day operation
13 Work Rhythm 5-7 minutes (adjustable reference value)
14 Running Noise Less than 85dB at 2 meters
15 Maximum Shell Temperature <45°C (except visible doors/windows), high temperature parts insulated
16 Ultrasonic Frequency 40KHz (Slot 1.2) / 40KHz (Slot 3)
17 Total Ultrasonic Power 1.8KW × 3 = 5.4kW
18 Total Electrical Power 3 phase 380V, approximately 75KW (excluding chiller power)
19 Average Power Consumption Approximately 40-50Kw during normal operation
20 Status Indicators Red-fault, yellow-alarm, green-automatic operation
21 Standard Equipment Colors Framework: White, Control cabinet: Orange yellow, Outer panels: Computer white (custom colors available)
22 Overall Machine Size 6000mm (L) × 3200mm (W) × 2700mm (H) excluding tracks, chillers and top exhaust
23 Production Cycle 60 days after receipt of deposit (excluding holidays)
24 Delivery Location Customer's factory
Custom Technical Solutions Available
For a complete technical solution for vacuum ultrasonic hydrocarbon cleaning machines, please contact us. We will customize the design based on your product technical requirements and factory layout.
