Liquid Crystal Flat Glass Washer Roller Brush Remove Particles And Fingerprints

Brand Name: Hongshun
Model Number: HS-1500MAF
MOQ: 1 set
Price: $30,000 to $60,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong
Certification:
CCC/CE
Applications:
Glass Panels
Processing Capacity:
300-500 Panels/hour
Rack Material:
SUS304 50x50x2㎜ Square Tube
Power Supply:
380±10%/50HZ
PLC:
Mitsubishi Of Japan
Touch Screen:
Taiwan's "HITECH"
Pneumatic Controller:
Japan “SMC”
Supply Ability:
5 sets / month
Highlight:

Liquid Crystal Flat Glass Washer

,

Roller Brush Flat Glass Washer

,

Remove Particles Compact Glass Washer

Product Description

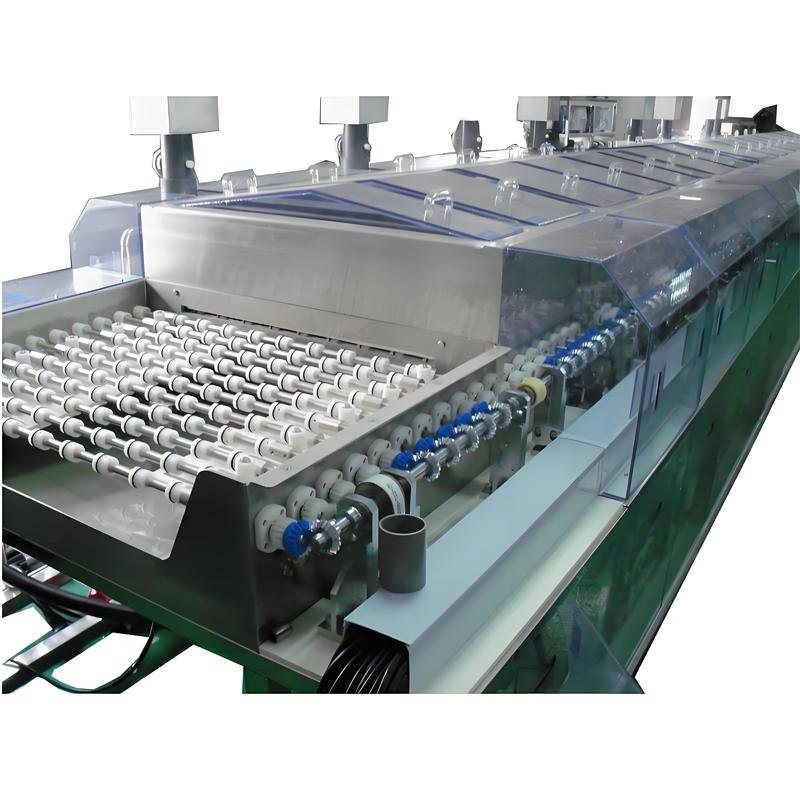

Liquid Crystal Flat Glass Washer Roller Brush
Advanced roller brush cleaning system with air knife water removal for removing particles and fingerprints from display glass panels.
Liquid Crystal Glass Horizontal Cleaning Line Overview
This specialized horizontal cleaning line features roller brush cleaning and air knife water removal technology, specifically designed for LCD, OLED, and display glass panels. The system utilizes soft nylon roller brushes with adjustable pressure (0.1-0.3MPa) to gently scrub surfaces, effectively removing particles, fingerprints, and residual photoresist without scratching, even on ultra-thin glass (0.3-1.1mm thick).
Key Features
  • Integrated high-pressure deionized water rinse flushes loosened contaminants
  • Dual air knives (0.5-0.8MPa) eliminate 99.9% of surface moisture
  • Prevents water spots critical for display quality
  • Processing capacity: 300-500 panels/hour (up to 1800×1500mm)
  • Seamless integration into LCD production lines
  • PLC-controlled for precision operation
  • Delivers pristine, dry surfaces ready for bonding or coating
Proven Results: Top display manufacturer reported 38% reduction in defects
Technical Specifications
Order Number Main Unit Brand/Material Explanation
1 Conveying shaft spacing 70㎜ Rolling brush section 110㎜
2 Rack material SUS304 50x50x2㎜ square tube
3 Main cleaning tank "South Asia" transparent PVC board T=10mm
4 Water box Taiwan "South Asia" transparent/ivory PVC board T=10mm
5 Door plank Taiwanese "South Asia" ivory PVC board T=6mm
6 Upper cover plate 1 Taiwan "South Asia" transparent PVC board T=6mm T=1.5mm
7 Anti-leak liquid collection tray Taiwanese "South Asia" ivory PVC board T=8mm
8 Feeding roller 1 SUS304 shaft core
9 Pressing roller 2 SUS304 shaft core coated with rubber Φ 32mm (brush section)
10 Feeding roller surface White UPE roller + white fluorine rubber O ring Two ends supported by guide wheel, middle is freewheel of fluororubber
11 Final drive shaft Imported bearing steel φ20mm
12 Pipe system "Anchor plate" PVC Sprinkler pipe: 3/4"PVC Total inlet pipe: 1" PVC, Total drain pipe: 2"PVC
13 Touch screen Taiwan's "HITECH" 10.4 inches
14 PLC Mitsubishi of Japan
15 Contactor/circuit breaker "Spanx"
16 Frequency transformer Japan's Panasonic
17 Thermostat Japan "OMRON"
18 Inductor Japan "OMRON"
19 Pneumatic controller Japan "SMC"
20 Water pump South China
21 High pressure positive blower China's "Sen Sen"
22 Drive motor Taiwan "Tai Li"
23 Roll brush motor Taiwan "Tai Li"
Custom Technical Solutions
For a complete technical solution for Liquid Crystal Glass Horizontal Cleaning Line, please contact us. We will customize the design based on your product technical requirements and factory layout.
Our Typical Customers
Liquid Crystal Flat Glass Washer Roller Brush Remove Particles And Fingerprints 0 Liquid Crystal Flat Glass Washer Roller Brush Remove Particles And Fingerprints 1
