ITO Glass Anti Fingerprint Flat Glass Washing Machine Customize Industrial Glass Washer

Brand Name: Hongshun
Model Number: HS-1512MAF
MOQ: 1 set
Price: $20,000 to $40,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong
Certification:
CCC/CE
Applications:
ITO Glass
Processing Capacity:
300-500 Sheets/hour
Max Glass Size:
1500×1200mm
Power Supply:
380±10%/50HZ
PLC:
Mitsubishi Of Japan
Touch Screen:
Taiwan's "HITECH"
Pneumatic Controller:
Japan “SMC”
Supply Ability:
5 sets / month
Highlight:

Anti Fingerprint Flat Glass Washing Machine

,

Customize Flat Glass Washing Machine

,

Customize Industrial Glass Washer

Product Description
ITO Glass Anti Fingerprint Flat Glass Washing Machine Customize Industrial Glass Washer

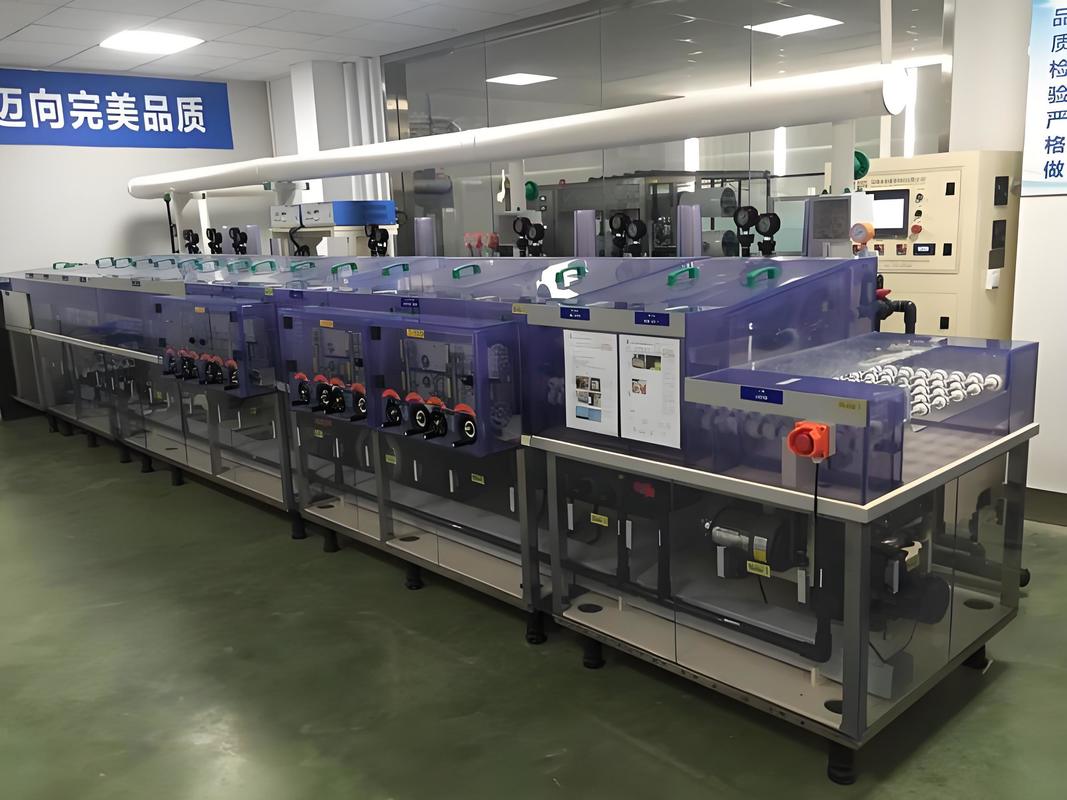

ITO Glass Anti-Fingerprint Pure Water Cleaning Machine Overview
This specialized cleaning machine is engineered specifically for indium tin oxide (ITO) coated glass, focusing on anti-fingerprint treatment and pure water cleaning. Ultra-soft microfiber roller brushes operating at 0.1-0.2MPa pressure gently remove particles, organic residues, and ion contaminants from ITO surfaces without damaging the delicate conductive layer—critical for touchscreens and display applications.
The system utilizes high-purity deionized water (18.2MΩ*cm) for thorough spray rinsing, while an integrated anti-fingerprint coating module applies a nano-film to repel oils and smudges. A precision air knife system ensures 100% moisture elimination, preventing water spots and ensuring pristine surface quality.
With processing capacity of 300-500 sheets per hour (up to 1500×1200mm), this machine seamlessly integrates into ITO glass production lines. PLC-controlled for precision operation, it delivers pristine, anti-fingerprint ITO surfaces ready for next-stage processing.
Technical Specifications & Components
Order Number Main Unit Brand/Material Explanation
1 Conveying shaft spacing 100㎜ Rolling brush section 110㎜
2 Rack material SUS304 50x50x2㎜ square tube
3 Main cleaning tank "South Asia" transparent PVC board T=10mm
4 Water box Taiwan "South Asia" transparent/ivory PVC board T=10mm
5 Door plank Taiwanese "South Asia" ivory PVC board T=6mm
6 Upper cover plate 1 Taiwan "South Asia" transparent PVC board T=6mm T=1.5mm
7 Anti-leak liquid collection tray Taiwanese "South Asia" ivory PVC board T=8mm
8 Feeding roller 1 SUS304 shaft core
9 Pressing roller 2 SUS304 shaft core coated with rubber Φ 32mm (brush section)
10 Feeding roller surface White UPE roller + white fluorine rubber O ring The two ends are supported by the guide wheel, and the middle is a freewheel of fluororubber
11 Final drive shaft Imported bearing steel φ20mm
12 Pipe system "Anchor plate" PVC Sprinkler pipe: 3/4"PVC Total inlet pipe: 1" PVC Total drain pipe: 2"PVC
13 Touch screen Taiwan's "HITECH" 10.4 inches
14 PLC Mitsubishi of Japan
15 Contactor/circuit breaker "Spanx."
16 Frequency transformer Japan's Panasonic
17 Thermostat Japan "OMRON"
18 Inductor Japan "OMRON"
19 Pneumatic controller Japan "SMC"
20 Water pump South China
21 High pressure positive blower China's "Sen Sen"
22 Drive motor Taiwan "Tai Li"
23 Roll brush motor Taiwan "Tai Li"
Custom Technical Solutions
For a complete technical solution for the ITO Glass Anti-Fingerprint Pure Water Cleaning Machine, please contact us. We will customize the design based on your specific product technical requirements and factory layout.
