Ultrasonic Spraying Flat Glass Washing Line Architectural Industrial Glass Washer

Brand Name: Hongshun
Model Number: HS-2515MAF
MOQ: 1 set
Price: $20,000 to $40,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong
Certification:
CCC/CE
Applications:
Architectural Glass
Processing Capacity:
200-400 Sheets/hour
Max Glass Size:
2500×1500mm
Power Supply:
380±10%/50HZ
PLC:
Mitsubishi Of Japan
Touch Screen:
Taiwan's "HITECH"
Pneumatic Controller:
Japan “SMC”
Supply Ability:
5 sets / month
Highlight:

Ultrasonic Flat Glass Washing Machine

,

Spraying Flat Glass Washing Machine

,

Architectural Industrial Glass Washer

Product Description

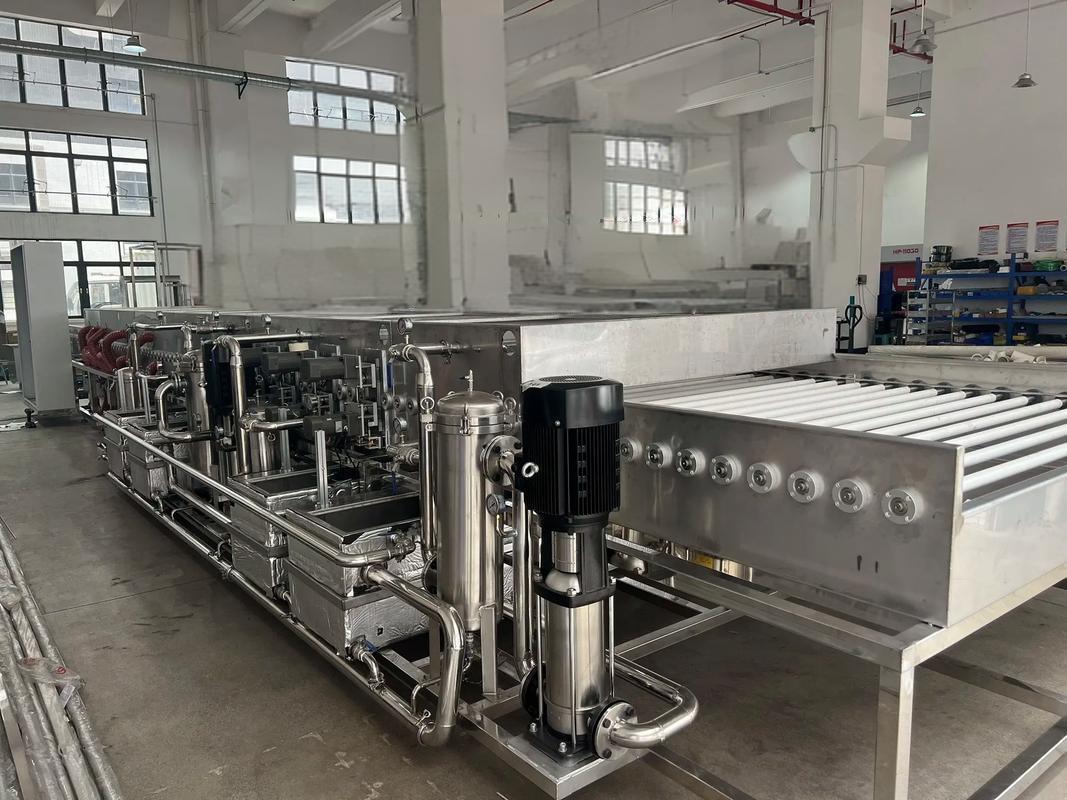

Ultrasonic Spraying Flat Glass Washing Line - Architectural Industrial Glass Washer
Advanced Cleaning Technology for Architectural Glass
This horizontal Ultrasonic & Spray Flat Glass Washing Line delivers superior cleaning performance for architectural glass applications. Combining powerful ultrasonic technology with high-pressure spray systems, it effectively removes dust, oils, and contaminants to ensure spotless finishes essential for architectural glass quality standards.
Key Features & Benefits
  • Horizontal design enables smooth automatic conveying and streamlined workflow
  • Energy-efficient operation reduces power consumption and long-term costs
  • Ideal for architectural glass used in buildings, facades, and windows
  • Enhances glass clarity and adhesion for subsequent treatments like coating or tempering
  • Durable construction with easy maintenance requirements
  • Adaptable to various glass sizes and integrates seamlessly into existing production setups
Technical Specifications & Materials
Order No. Main Unit Brand/Material Explanation
1 Conveying shaft spacing 100㎜ Rolling brush section 110㎜
2 Rack material SUS304 50x50x2㎜ square tube
3 Main cleaning tank "South Asia" transparent PVC board T=10mm
4 Water box Taiwan "South Asia" transparent/ivory PVC board T=10mm
5 Door plank Taiwanese "South Asia" ivory PVC board T=6mm
6 Upper cover plate 1 Taiwan "South Asia" transparent PVC board T=6mm T=1.5mm
7 Anti-leak liquid collection tray Taiwanese "South Asia" ivory PVC board T=8mm
8 Feeding roller 1 SUS304 shaft core
9 Pressing roller 2 SUS304 shaft core coated with rubber Φ 32mm (brush section)
10 Feeding roller surface White UPE roller + white fluorine rubber O ring Two ends supported by guide wheel, middle is freewheel of fluororubber
11 Final drive shaft Imported bearing steel φ20mm
12 Pipe system "Anchor plate" PVC Sprinkler pipe: 3/4"PVC Total inlet pipe: 1" PVC Total drain pipe: 2"PVC
13 Touch screen Taiwan's "HITECH" 10.4 inches
14 PLC Mitsubishi of Japan
15 Contactor/circuit breaker "Spanx."
16 Frequency transformer Japan's Panasonic
17 Thermostat Japan "OMRON"
18 Inductor Japan "OMRON"
19 Pneumatic controller Japan "SMC"
20 Water pump South China
21 High pressure positive blower China's "Sen Sen"
22 Drive motor Taiwan "Tai Li"
23 Roll brush motor Taiwan "Tai Li"
Custom Technical Solutions
For a complete technical solution of the Ultrasonic & Spray Flat Glass Washing Line, please contact us. We will customize the design based on your product technical requirements and factory layout.
