Safety Operation Flat Glass Washing Machine High Precisen Compact Glass Washer
  • name

Safety Operation Flat Glass Washing Machine High Precisen Compact Glass Washer

Brand Name: Hongshun
Model Number: HS-10060MAF
MOQ: 1 set
Price: $20,000 to $40,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong
Certification:
CCC/CE
Applications:
Solar Panel
Processing Capacity:
150-250 Sheets/hour
Max Glass Size:
1000×600mm
Power Supply:
380±10%/50HZ
PLC:
Mitsubishi Of Japan
Touch Screen:
Taiwan's "HITECH"
Pneumatic Controller:
Japan “SMC”
Supply Ability:
5 sets / month
Highlight:

Safety Operation Flat Glass Washing Machine

,

High Precisen Flat Glass Washing Machine

,

Safety Operation Compact Glass Washer

Product Description

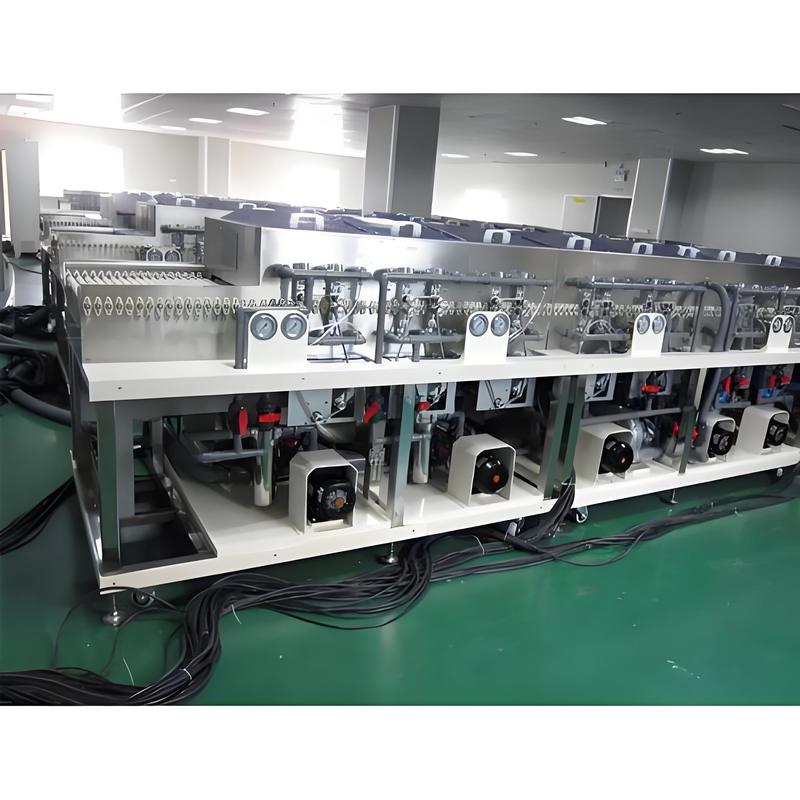

Ultrasonic Horizontal Flat Glass Washing Machine
High Precision Compact Glass Washer for Solar Panel Production
The Ultrasonic Horizontal Flat Glass Washer is engineered specifically for precise solar panel glass production, where surface purity directly impacts energy efficiency and performance.
Advanced Cleaning Technology
Our advanced ultrasonic technology generates high-frequency vibrations to dislodge even the smallest particles—including dust, oxides, and residues—that could obstruct sunlight absorption. The horizontal design ensures stable, continuous glass movement through smooth auto-conveying, minimizing friction and preventing scratches on delicate solar glass surfaces.
Key Benefits
  • Consistent cleaning across large glass sheets for uniform light transmittance
  • Energy-efficient operation supporting green manufacturing initiatives
  • Robust construction for high-volume production demands
  • Ideal for processing both raw solar glass and post-cut panels
  • Optimizes photovoltaic performance with spotless finishes
Technical Specifications
Order Number Main Unit Brand/Material Explanation
1 Conveying shaft spacing 100㎜ Rolling brush section 110㎜
2 Rack material SUS304 50x50x2㎜ square tube
3 Main cleaning tank "South Asia" transparent PVC board T=10mm
4 Water box Taiwan "South Asia" transparent/ivory PVC board T=10mm
5 Door plank Taiwanese "South Asia" ivory PVC board T=6mm
6 Upper cover plate 1 Taiwan "South Asia" transparent PVC board T=6mm T=1.5mm
7 Anti-leak liquid collection tray Taiwanese "South Asia" ivory PVC board T=8mm
8 Feeding roller 1 SUS304 shaft core
9 Pressing roller 2 SUS304 shaft core coated with rubber Φ 32mm (brush section)
10 Feeding roller surface White UPE roller + white fluorine rubber O ring The two ends are supported by the guide wheel, and the middle is a freewheel of fluororubber
11 Final drive shaft Imported bearing steel φ20mm
12 Pipe system "Anchor plate" PVC Sprinkler pipe: 3/4"PVC Total inlet pipe: 1" PVC Total drain pipe: 2"PVC
13 Touch screen Taiwan's "HITECH" 10.4 inches
14 PLC Mitsubishi of Japan
15 Contactor/circuit breaker "Spanx."
16 Frequency transformer Japan's Panasonic
17 Thermostat Japan "OMRON"
18 Inductor Japan "OMRON"
19 Pneumatic controller Japan "SMC"
20 Water pump South China
21 High pressure positive blower China's "Sen Sen"
22 Drive motor Taiwan "Tai Li"
23 Roll brush motor Taiwan "Tai Li"
Custom Technical Solutions
For a complete technical solution of the Ultrasonic Horizontal Flat Glass Washer, please contact us. We will customize the design based on your product technical requirements and factory layout.
Our Typical Customers
Safety Operation Flat Glass Washing Machine High Precisen Compact Glass Washer 0 Safety Operation Flat Glass Washing Machine High Precisen Compact Glass Washer 1
