Energy Efficiency Flat Glass Washer Preventing Scratches For Solar Glass Surface

Brand Name:	Hongshun
Model Number:	HS-160100MAF
MOQ:	1 set
Price:	$20,000 to $40,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CCC/CE

Applications:

Automotive Glass Manufacturing

Processing Capacity:

100-200 Sheets/hour

Max Glass Size:

1600×1000mm

Power Supply:

380±10%/50HZ

PLC:

Mitsubishi Of Japan

Touch Screen:

Taiwan's "HITECH"

Pneumatic Controller:

Japan “SMC”

Supply Ability:

5 sets / month

Highlight:

Preventing Scratches Flat Glass Washer

Solar Glass Flat Glass Washer

Preventing Scratches Industrial Glass Washing Machine

Product Description

Energy Efficiency Flat Glass Washer Preventing Scratches For Solar Glass Surface

Low-Cost Spray & Roller Brush Glass Washing Line - Perfect for Automotive Glass Manufacturing

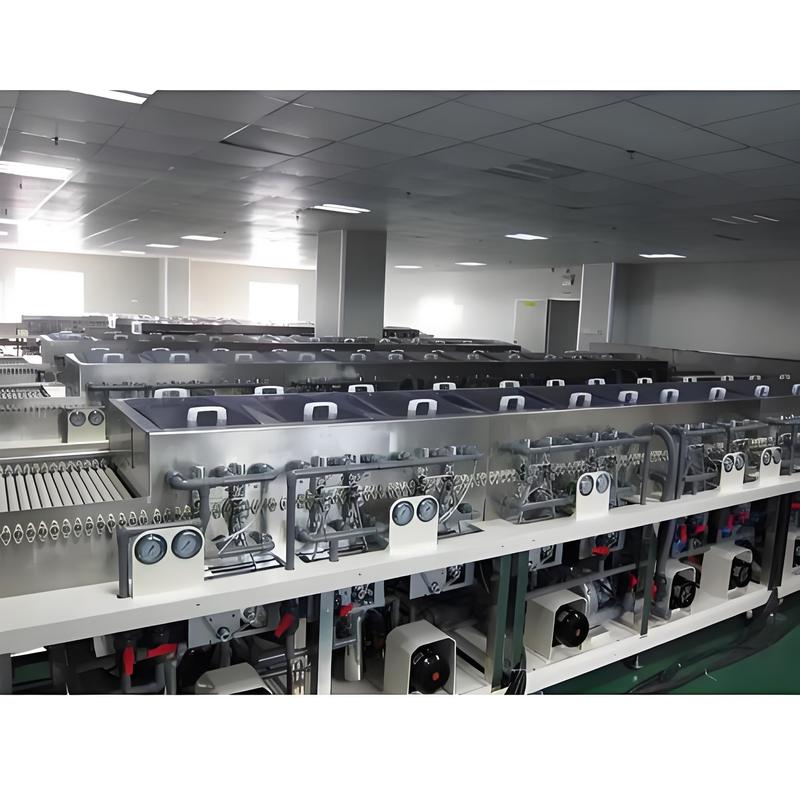

The Ultrasonic Horizontal Flat Glass Washer represents a significant advancement for precision solar panel glass production, where surface purity directly impacts energy efficiency. Advanced ultrasonic technology generates high-frequency vibrations to dislodge even the smallest particles—including dust, oxides, and residues—that could obstruct sunlight absorption. The horizontal design ensures stable, continuous glass movement through smooth automated conveying, minimizing friction and preventing scratches on delicate solar glass surfaces.

Engineered for precision cleaning, this washer delivers consistent performance across large glass sheets, which is critical for maintaining uniform light transmittance in solar panels. The energy-efficient operation aligns with green manufacturing objectives, while the robust construction handles high-volume production requirements. Whether processing raw solar glass or post-cut panels, it guarantees a flawless finish to optimize photovoltaic performance. An essential solution for solar manufacturers seeking to enhance product quality and production efficiency.

Technical Specifications & Materials

Order Number	Main Unit	Brand/Material	Explanation
1	Conveying shaft spacing	100㎜	Rolling brush section 110㎜
2	Rack material	SUS304 50x50x2㎜ square tube
3	Main cleaning tank	Use "South Asia" transparent PVC board	T=10mm
4	Water box	Taiwan "South Asia" transparent / ivory PVC board	T=10mm
5	Door plank	Taiwanese "South Asia" ivory PVC board	T=6mm
6	Upper cover plate 1	Taiwan "South Asia" transparent PVC board The brush section and the air knife section are made of stainless steel plate	T=6mm T=1.5mm
7	Anti-leak liquid collection tray	Taiwanese "South Asia" ivory PVC board	T=8mm
8	Feeding roller 1	SUS304 shaft core
9	Pressing roller 2	SUS304 shaft core is coated with rubber	Φ 32mm (brush section)
10	Feeding roller surface	White UPE roller + white fluorine rubber O ring	The two ends are supported by the guide wheel, and the middle is a freewheel of fluororubber
11	Final drive shaft	Imported bearing steel	φ20mm
12	Pipe system	"Anchor plate" PVC Sprinkler pipe: 3/4"PVC	Total inlet pipe: 1" PVC Total drain pipe: 2"PVC
13	Touch screen	Taiwan's "HITECH"	10.4 inches
14	PLC	Mitsubishi of Japan
15	Contactor/circuit breaker	"Spanx."
16	Frequency transformer	Japan's Panasonic
17	Thermostat	Japan "OMRON"
18	Inductor	Japan "OMRON"
19	Pneumatic controller	Japan "SMC"
20	Water pump	South China
21	High pressure positive blower	China's "Sen Sen"
22	Drive motor	Taiwan "Tai Li"
23	Roll brush motor	Taiwan "Tai Li"

For a complete technical solution of the Low-Cost Spray & Roller Brush Glass Washing Line, please contact us. We will customize the design based on your product technical requirements and factory layout.
