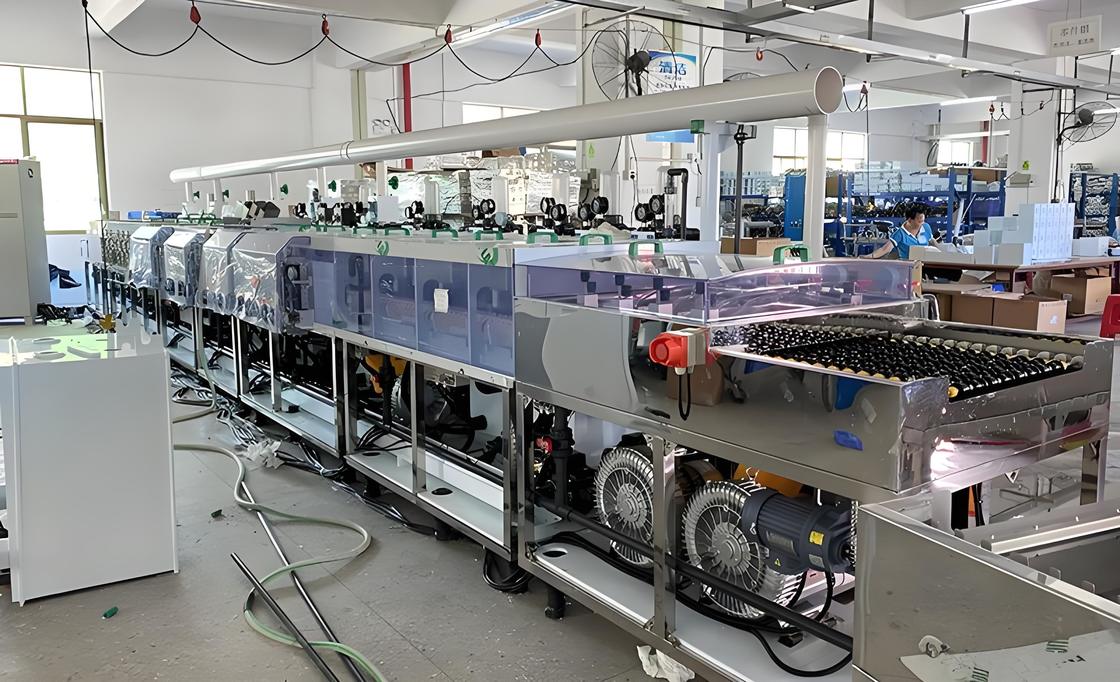

Auto Conveying Float Glass Washing Machine Smooth Operation For LCD Screen Industry

 order number

 main unit

Brand/material

        Explanation

1

Conveying shaft spacing

                100㎜

Rolling brush section 110㎜

2

Rack material

SUS304 50x50x2㎜ square tube

3

Main cleaning tank

Use "South Asia" transparent PVC board

T=10mm

4

 water box

Taiwan "South Asia" transparent / ivory PVC board

T=10mm

5

 door plank

Taiwanese "South Asia" ivory PVC board

T=6mm

6

Upper cover plate 1

Taiwan "South Asia" transparent PVC board

The brush section and the air knife section are made of stainless steel plate

T=6mm

T=1.5mm

7

Anti-leak liquid collection tray

Taiwanese "South Asia" ivory PVC board

T=8mm

8

Feeding roller 1

SUS304 shaft core

9

Pressing roller 2

SUS304 shaft core is coated with rubber

Φ 32mm (brush section)

10

Feeding roller surface

White UPE roller + white fluorine rubber O ring

The two ends are supported by the guide wheel, and the middle is a freewheel of fluororubber

11

 final drive shaft

Imported bearing steel

φ20mm

12

 pipe system

"Anchor plate" PVC Sprinkler pipe: 3/4"PVC

Total inlet pipe: 1" PVC

Total drain pipe: 2"PVC

13

 touch screen

Taiwan's "HITECH"

10.4 inches

14

PLC

Mitsubishi of Japan

15

Contactor/circuit breaker

"Spanx."

16

 frequency transformer

Japan's Panasonic

17

 thermostat

Japan "OMRON"

18

 inductor

Japan "OMRON"

19

 pneumatic controller

 Japan “SMC”

20

 water pump

South China

21

 high pressure positive blower

China's "Sen Sen"

22

Drive motor

Taiwan "Tai Li"

23

Roll brush motor

Taiwan "Tai Li"
