Single Arm Automatic Cleaning Machine Good Effect For Workpieces With Deep Slot Inner Cavity Blind Hole

Brand Name: Hongshun
Model Number: HS-7600SAC
MOQ: 1 set
Price: $20,000 to $30,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong
Certification:
CCC/CE
Applications:
Workpieces With Deep Slot Inner Cavity Blind Hole
Handling Capacity:
15kg Per Cycle
Equipment Capacity:
2~5 Minutes / Basket
Power Supply:
380±10%/50HZ
Ultrasonic Frequency:
28-40 KHZ
Arm Movement:
X/Y/Z Axis Precision Positioning
Drying System::
Hot Air Circulation (50-120℃ Adjustable)
Supply Ability:
5 sets/month
Highlight:

single arm ultrasonic cleaning machine

,

automatic cleaning machine for deep slots

,

ultrasonic cleaner for blind hole workpieces

Product Description

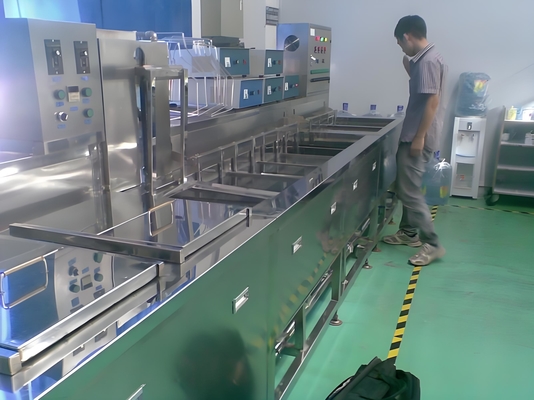

Single Arm Automatic Cleaning Machine
High-efficiency cleaning solution for workpieces with deep slots, inner cavities, and blind holes. Ideal for automotive, aerospace, and precision engineering applications.
Technical Specifications
  • Handling Capacity: Accommodates workpieces up to φ300mm × 400mm (L), with maximum load of 15kg per cycle
  • Cleaning Efficiency: 30-60 workpieces/hour (adjustable via programmable speed control)
  • Cleaning Methods: Integrated ultrasonic (28/40kHz dual frequency), high-pressure spray (0.3-0.8MPa), and immersion rinsing
  • Arm Movement: X/Y/Z axis precision positioning (±0.1mm repeatability) for complex part access
  • Tank Configuration: 4-8 stainless steel tanks (customizable) for multi-stage cleaning
  • Drying System: Hot air circulation (50-120℃ adjustable) with ≤0.5% residual moisture
  • Control System: PLC with touchscreen interface, 100+ programmable cleaning recipes
  • Power Supply: 380V/50Hz (customizable for 220V/60Hz regions), 8-15kW consumption
  • Dimensions: 2800×1500×2200mm (L×W×H), compact factory integration
  • Certifications: CE, ISO 9001, RoHS compliant
Main Technical Parameters
Total ultrasonic power 10.5 KW (7 ultrasonic tanks, each 1.5KW)
Ultrasonic frequency 28KHz
Maximum total power 17 KW
Power supply 380VAC, 3p5w, 50HZ
Machine size Approximately according to drawing or physical object
For a complete technical solution of Automatic Cleaning Machine, please contact us. We will customize the design based on your product technical requirements and factory layout.
