High-Adhesion Vertical Powder Coating System for Aluminum Profiles - Compliant with EN Standards

1 set
MOQ
$400,000 to $600,000
Price
High-Adhesion Vertical Powder Coating System for Aluminum Profiles - Compliant with EN Standards
Features Gallery Product Description Chat Now
Features
Specifications
Applications: Aluminum Profiles
Powder Utilization: 95%+
Standard Speed Of Conveyor Chain: 3500mm/min (1000mm/min--5000mm/min Variable Frequency Adjustable)
Power Supply: 380±10%/50HZ
Weight Of Standard Workpiece: 3KG
Curing Temperature: Stable 180-220℃
Powder LEL: 40g/Nm3
Basic Infomation
Place of Origin: Guangdong
Brand Name: Hongshun
Certification: CCC/CE
Model Number: HS-4100VPQ
Document: Technical documents for ver...ne.pdf
Payment & Shipping Terms
Packaging Details: film
Delivery Time: 65 days
Payment Terms: L/C,T/T
Supply Ability: 5 sets/month
Product Description

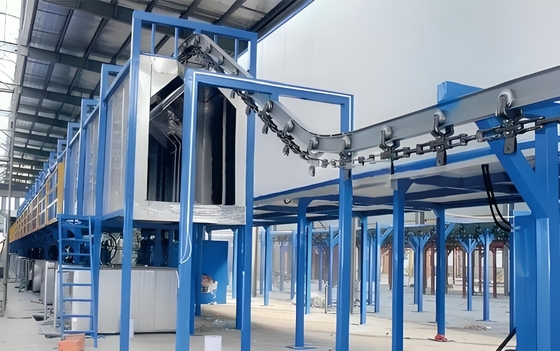

High-Adhesion Vertical Powder Coating System for Aluminum Profiles - Compliant with EN Standards


Vertical Powder Coating SystemOverview:

Our High-Adhesion Vertical Powder Coating System is engineered to meet strict EN standards (e.g., EN 12206 for aluminum surface finishes), delivering exceptional coating adhesion for aluminum profiles used in European architecture, automotive, and industrial sectors.

Designed to solve adhesion challenges, it integrates a multi-stage pre-treatment process (degreasing, etching, passivation) that optimizes aluminum surface bonding, paired with an advanced electrostatic spray system—ensuring the powder coating adheres firmly even in high-stress or outdoor environments (resisting peeling, chipping, and corrosion). The vertical structure saves 35% floor space (ideal for compact EU workshops) while maintaining uniform coating thickness (±3μm) across profiles like door frames, curtain walls, and structural parts.

Fully compliant with EN standards and CE-certified, it eliminates import barriers for European markets. For manufacturers prioritizing long-lasting, high-performance aluminum profile finishes that meet regional quality mandates, this system is a reliable, market-aligned solution.

Running conditions Of Vertical Powder Coating System:

2. Energy supply

A, liquefied gas, pipeline natural gas or other heat sources and heat exchange provided by customers themselves

B, steam

3. Compressed air

A, pressure: 7.0bar

B, maximum steam capacity: 1.2g/nm3

C, maximum oil content: 0.01ppm

D, maximum compressed air flow: 15m3/min



Energy consumption reference of Vertical Powder Coating System:



SN.

 device name

Maximum installed capacity

Maximum gas supply

( natural gas )

1.

 conveyer system

6KW/H



2.

 pretreatment

61KW/H



3.

Drying oven (proportion combustion machine) 1 set

15KW/H

30M³/H

4.

Spraying system (1 set)

75W/H



5.

Curing furnace (proportion combustion machine) 1

15KW/H

90M³/H

6.

Elevator, upper and lower material conveying mechanism

12KW/H



7.

Floc incineration unit (2 burners)

23KW/H

25M³/H

8.

 amount

207KW/H

145M³/H



 For a complete technical solution Of  Vertical Powder Coating System For Aluminum Profiles, please contact me. We will customize the design based on your product technical requirements and factory layout.


Our typical customers:

   High-Adhesion Vertical Powder Coating System for Aluminum Profiles - Compliant with EN Standards 0

  High-Adhesion Vertical Powder Coating System for Aluminum Profiles - Compliant with EN Standards 1




About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
