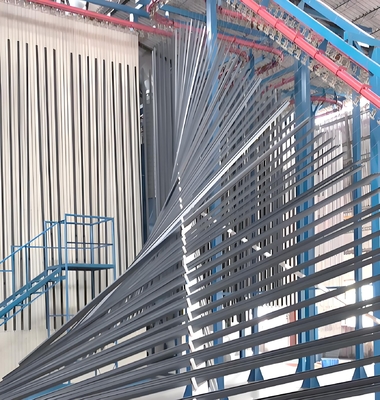

Compact Design Vertical Powder Coating Equipment for Aluminum Profiles - Fit European Workshop Space

1 set
MOQ
$400,000 to $600,000
Price
Compact Design Vertical Powder Coating Equipment for Aluminum Profiles - Fit European Workshop Space
Features Gallery Product Description Chat Now
Features
Specifications
Applications: Aluminum Profiles
Standard Spray Chain Speed: 3.5 Meters/min
Standard Speed Of Conveyor Chain: 3500mm/min (1000mm/min--5000mm/min Variable Frequency Adjustable)
Power Supply: 380±10%/50HZ
Weight Of Standard Workpiece: 3KG
Curing Temperature: Stable 180-220℃
Process Weight Per Hour: 1570 Pieces ×2.5 Kg/piece ≈3.92 Tons
Basic Infomation
Place of Origin: Guangdong
Brand Name: Hongshun
Certification: CCC/CE
Model Number: HS-4200VPQ
Document: Technical documents for ver...ne.pdf
Payment & Shipping Terms
Packaging Details: film
Delivery Time: 65 days
Payment Terms: L/C,T/T
Supply Ability: 5 sets/month
Product Description

Compact Design Vertical Powder Coating Equipment for Aluminum Profiles - Fit European Workshop Space


Vertical Powder Coating Equipment Overview:

Our Compact Design Vertical Powder Coating Equipment is tailor-made to address the space constraints of European workshops, delivering high-quality aluminum profile finishing (for doors, windows, curtain walls) without sacrificing efficiency.

Its vertical layout is the core advantage: compared to traditional horizontal lines, it reduces floor space usage by 45%, easily fitting into compact EU factory layouts while maintaining a throughput of up to 500kg/h. Despite its compact size, it integrates all key processes—automated pre-treatment, electrostatic powder spraying (95%+ powder utilization), and precise curing—ensuring uniform, durable coatings with strong adhesion (compliant with EN 12206 standards).

The equipment is CE-certified, aligning with EU safety and environmental regulations, and features a modular design for easy installation and future expansion. For European manufacturers struggling with limited workshop space but needing reliable, high-volume aluminum profile coating, this compact solution balances performance, compliance, and space efficiency perfectly.

Running conditions Of Vertical Powder Coating Equipment:

4. Industrial water:

A, Pressure: 3+0.2bar

B, Flow: 5m3/h

5. Pure water

A. Conductivity: 10us/cm

B. Flow rate: 5m3/h

6. Powder

A, the lower explosive limit of powder LEL is 40g/Nm3



Energy consumption reference of Vertical Powder Coating Equipment:



SN.

 device name

Maximum installed capacity

Maximum gas supply

( natural gas )

1.

 conveyer system

6KW/H



2.

 pretreatment

61KW/H



3.

Drying oven (proportion combustion machine) 1 set

15KW/H

30M³/H

4.

Spraying system (1 set)

75W/H



5.

Curing furnace (proportion combustion machine) 1

15KW/H

90M³/H

6.

Elevator, upper and lower material conveying mechanism

12KW/H



7.

Floc incineration unit (2 burners)

23KW/H

25M³/H

8.

 amount

207KW/H

145M³/H



 For a complete technical solution Of  Vertical Powder Coating Equipment For Aluminum Profiles, please contact me. We will customize the design based on your product technical requirements and factory layout.


Our typical customers:

   Compact Design Vertical Powder Coating Equipment for Aluminum Profiles - Fit European Workshop Space 0

  Compact Design Vertical Powder Coating Equipment for Aluminum Profiles - Fit European Workshop Space 1




About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
