Integrated Aluminum Profile Vertical Powder Coating Machine - Pre-Treatment to Curing

Brand Name:	Hongshun
Model Number:	HS-4400VPQ
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CCC/CE

Document:

Applications:

Aluminum Profiles

AC Contactor:

Schneider (France)

Standard Speed Of Conveyor Chain:

3500mm/min (1000mm/min--5000mm/min Variable Frequency Adjustable)

Power Supply:

380±10%/50HZ

Weight Of Standard Workpiece:

Curing Temperature:

Stable 180-220℃

Buttons And Indicator Lights:

Schneider (France)

Supply Ability:

5 sets/month

Highlight:

aluminum profile powder coating machine

vertical powder coating line

powder coating machine with pre-treatment

Product Description

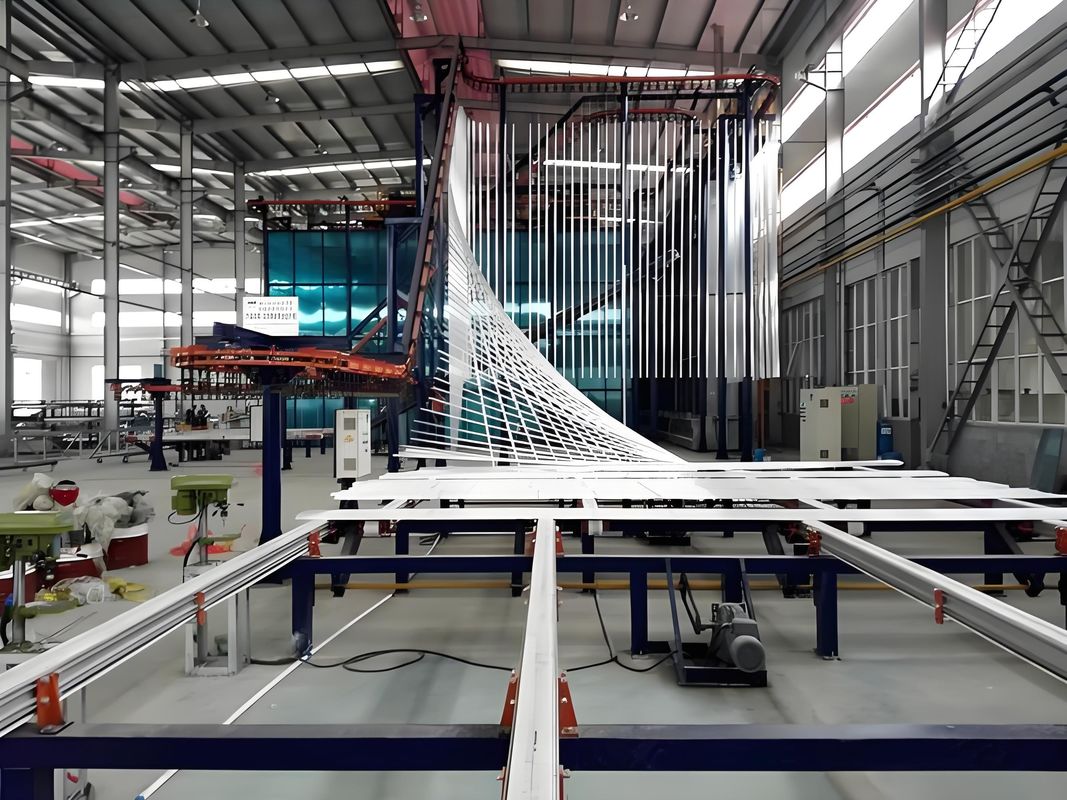

Integrated Aluminum Profile Vertical Powder Coating Machine - Pre-Treatment to Curing

Integrated Aluminum Profile Vertical Powder Coating Machine - Pre-Treatment to Curing (CE Certified)

Vertical Powder Coating Machine Overview

Our Integrated Aluminum Profile Vertical Powder Coating Machine offers a complete solution from pre-treatment to curing, designed for maximum efficiency and regulatory compliance. This system is ideal for European manufacturers of aluminum profiles including doors, windows, and curtain walls.

The fully integrated system covers every critical processing step: automated pre-treatment (degreasing, etching, passivation) to optimize surface adhesion, electrostatic powder spraying with 96%+ powder utilization for minimal waste, and precise curing with adjustable temperature control (180-220℃). This all-in-one design eliminates the need for separate equipment, saving 40% workshop space compared to split systems while achieving throughput rates up to 500kg/h.

As a CE-certified solution, the machine fully complies with EU safety and environmental standards (RoHS compliant), removing import barriers. The vertical layout ensures uniform coating thickness (±3μm) across profiles, delivering durable, weather-resistant finishes. This integrated machine represents a reliable, cost-effective choice for aluminum profile finishing operations.

Design Principles and Characteristics

The powder coating line is engineered for high-quality spraying, high production efficiency, advanced automation, low consumption, minimal energy usage, and compact footprint, fully meeting aluminum profile surface coating requirements
Design layout comprehensively considers logistics channel smoothness and operational convenience
Pre-treatment equipment utilizes waterfall + spray pretreatment to ensure optimal cleaning effectiveness

Energy Consumption Reference of Vertical Powder Coating Line

SN.	Device Name	Maximum Installed Capacity	Maximum Gas Supply (Natural Gas)
1.	Conveyor System	6KW/H	-
2.	Pretreatment	61KW/H	-
3.	Drying Oven (Proportion Combustion Machine) 1 Set	15KW/H	30M³/H
4.	Spraying System (1 Set)	75W/H	-
5.	Curing Furnace (Proportion Combustion Machine) 1	15KW/H	90M³/H
6.	Elevator, Upper and Lower Material Conveying Mechanism	12KW/H	-
7.	Floc Incineration Unit (2 Burners)	23KW/H	25M³/H
8.	Total Amount	207KW/H	145M³/H

For a complete technical solution of Vertical Powder Coating Equipment For Aluminum Profiles, please contact us. We will customize the design based on your product technical requirements and factory layout.

Our Typical Customers

About Us

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. We are a professional manufacturer of high-precision surface treatment equipment. Our main products include: a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables.

We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. We maintain a complete quality management system and strong technical capabilities to deliver reliable industrial solutions.
