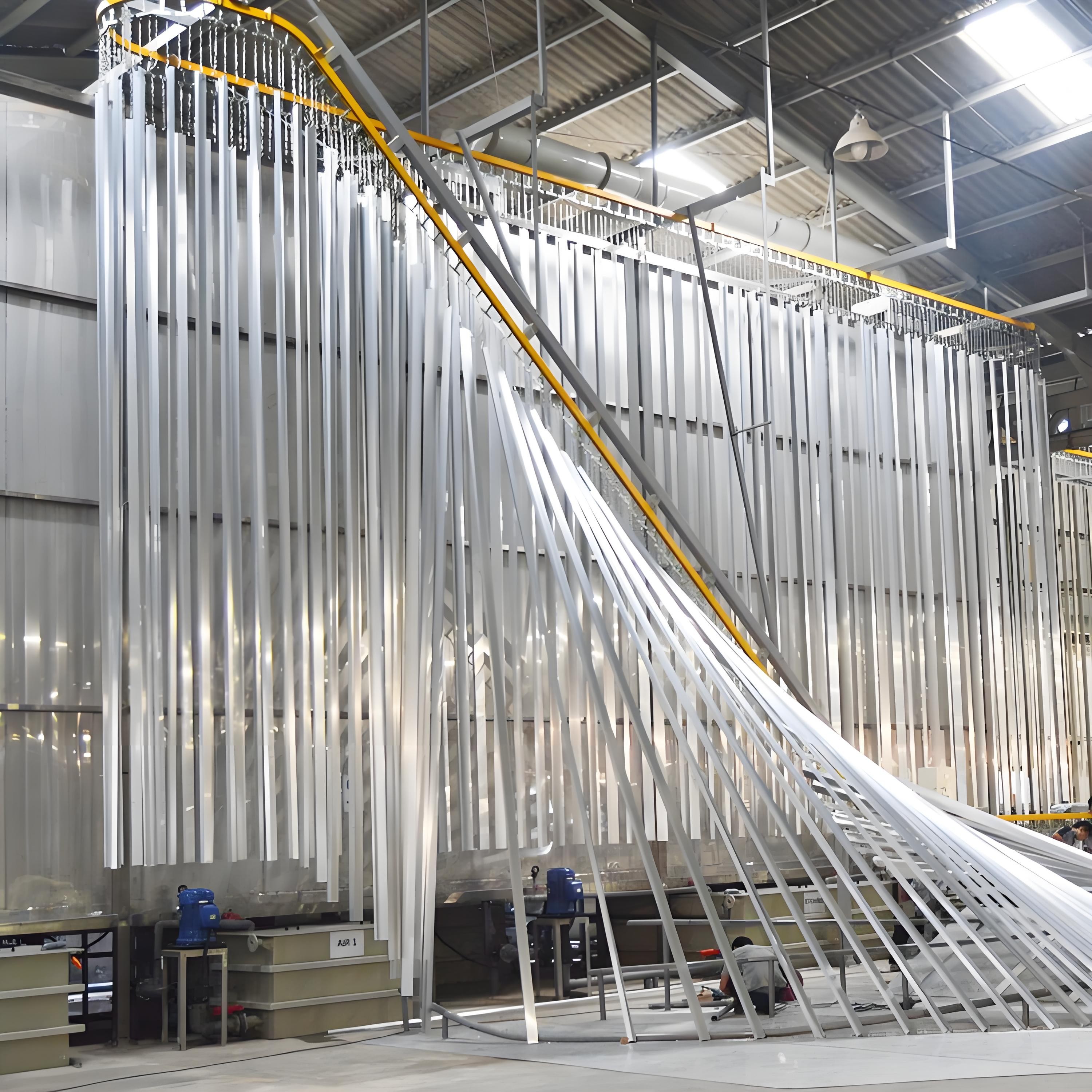

Customizable Vertical Powder Coating Equipment for Aluminum Profiles (Any Size)

1 set
MOQ
$280,000 to $350,000
Price
Customizable Vertical Powder Coating Equipment for Aluminum Profiles (Any Size)
Features Gallery Product Description Chat Now
Features
Specifications
Applications: Aluminum Profiles
Maximum Workpiece Size: 200mm × 200mm × H7000mm
Power Supply: 380±10%/50HZ
Chain Pitch: 400mm
Running Speed: 1---5m/min
Basic Infomation
Place of Origin: Guangdong
Brand Name: Hongshun
Certification: CCC/CE
Model Number: HS-4200VPQ
Document: Technical documents for ver...ne.pdf
Payment & Shipping Terms
Packaging Details: film
Delivery Time: 65 days
Payment Terms: L/C,T/T
Supply Ability: 5 sets/month
Product Description

Customizable Vertical Powder Coating Equipment for Aluminum Profiles (Any Size)


Vertical Powder Coating Equipment Overview:

Our Customizable Vertical Powder Coating Equipment is engineered to adapt to aluminum profiles of any size—from small window frames (50cm) to extra-long curtain wall sections (6m+)—making it a versatile solution for architectural, automotive, and furniture manufacturers worldwide.
Its core customization lies in flexible design: adjustable vertical conveyor heights (1-5m), modular spray booth widths (0.8-2m), and scalable curing oven lengths let you tailor the equipment to your specific profile dimensions. We also offer optional upgrades—such as multi-nozzle spray systems for complex profiles or high-temperature curing modules for industrial-grade coatings—to match your production needs.
Beyond size adaptability, it retains high performance: 95%+ powder utilization, uniform coating thickness (±3μm), and fully automated workflows (pre-treatment to unloading) to boost efficiency. CE/RoHS compliant for global markets, it fits compact workshops via vertical layout. For manufacturers handling diverse aluminum profile sizes, this customizable equipment eliminates the need for multiple machines—delivering tailored, cost-effective finishing.

Design principles and characteristics:

1, No wear and tear parts, there is no need to replace the film or conveyor belt and other wear and tear parts.

2, The new improved design of vertical lift greatly improves the service life and stability.

3, The curing furnace adopts direct combustion heat exchange mode, which has high heat transfer efficiency. At the same time, it can burn the organic matter volatilized during powder curing and reduce the flocculation in the curing furnace.

Improve quality and reduce fire risk.

4, All electrical components and key mechanical components are all brand products to ensure the durability of equipment.

... ...



Energy consumption reference of Vertical Powder Coating Equipment:



SN.

 device name

Maximum installed capacity

Maximum gas supply

( natural gas )

1.

 conveyer system

6KW/H



2.

 pretreatment

61KW/H



3.

Drying oven (proportion combustion machine) 1 set

15KW/H

30M³/H

4.

Spraying system (1 set)

75W/H



5.

Curing furnace (proportion combustion machine) 1

15KW/H

90M³/H

6.

Elevator, upper and lower material conveying mechanism

12KW/H



7.

Floc incineration unit (2 burners)

23KW/H

25M³/H

8.

 amount

207KW/H

145M³/H



 For a complete technical solution Of  Vertical Powder Coating  Equipment For Aluminum Profiles, please contact me. We will customize the design based on your product technical requirements and factory layout.


Our typical customers:

   Customizable Vertical Powder Coating Equipment for Aluminum Profiles (Any Size) 0

  Customizable Vertical Powder Coating Equipment for Aluminum Profiles (Any Size) 1




About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
