Automated Vertical Powder Coating Line For Aluminum Profiles With Powder Recovery System

Brand Name: Hongshun
Model Number: HS-4400VPQ
MOQ: 1 set
Price: $20,000 to $50,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong
Certification:
CCC/CE
Document:
Technical documents for ver...ne.pdf
Applications:
Aluminum Profiles
Maximum Workpiece Size:
200mm × 200mm × H7000mm
Power Supply:
380±10%/50HZ
Chain Pitch:
400mm
Running Speed:
1---5m/min
Cyclone Barrel Size:
Φ1800mm × 5000mm (high)
Supply Ability:
5 sets/month
Highlight:

automated vertical powder coating line

,

aluminum profile powder coating system

,

powder recovery coating line

Product Description

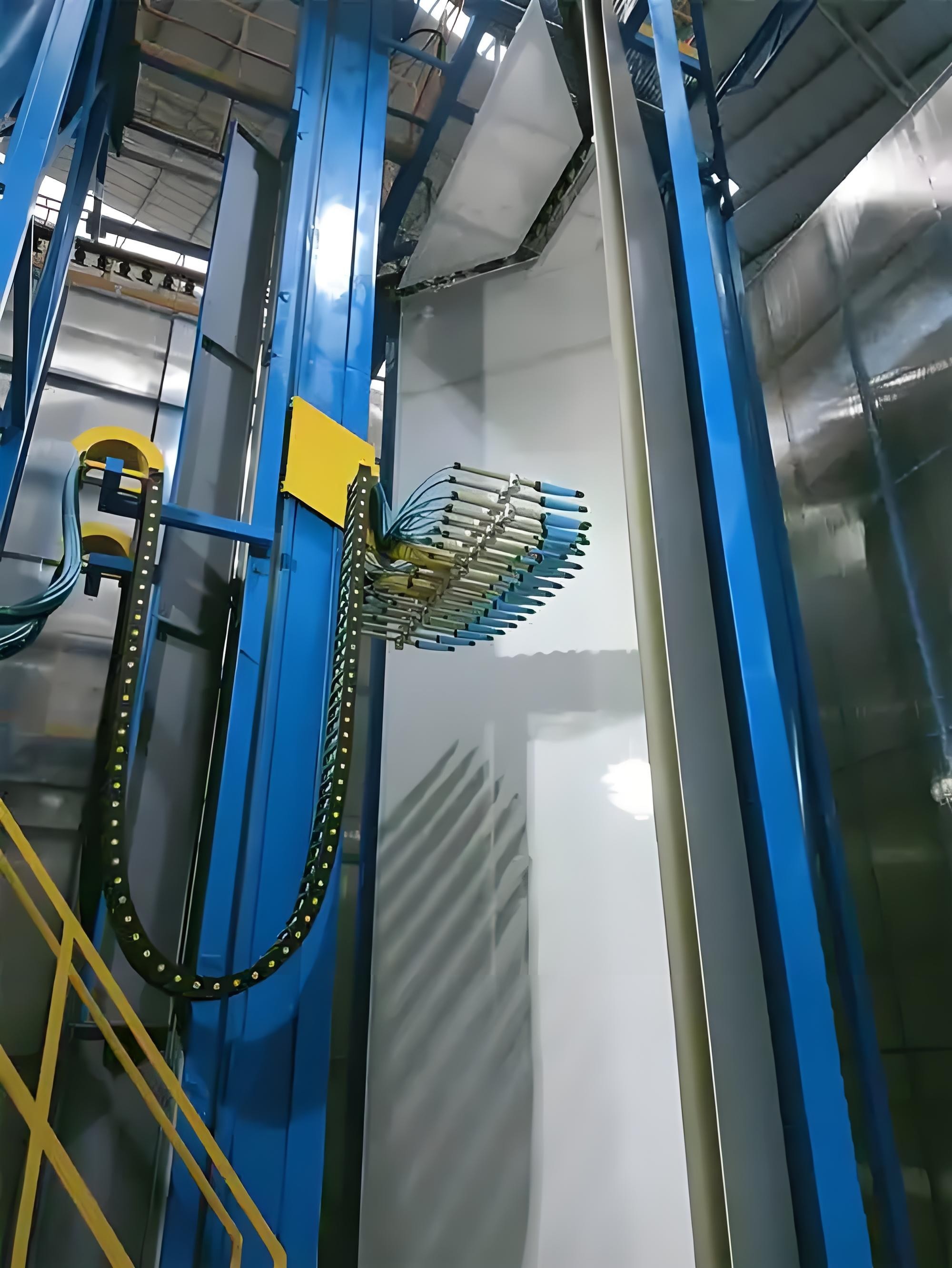

Automated Vertical Powder Coating Line For Aluminum Profiles With Powder Recovery System
Our Automated Vertical Powder Coating Line, integrated with a high-efficiency powder recovery system, delivers seamless, eco-friendly finishing for aluminum profiles—ideal for architectural (doors, curtain walls), automotive, and furniture manufacturers globally.
System Overview
The fully automated workflow streamlines every step: from robotic loading, multi-stage pre-treatment (degreasing, passivation) to precise electrostatic spraying, ensuring uniform coating thickness (±3μm) across profiles of all sizes. Its standout powder recovery system captures over 96% of unused powder, recycling it back into the spraying process—cutting material waste by 40% and slashing operational costs, while reducing environmental impact.
The vertical design optimizes workshop space (saves 35% floor area vs. horizontal lines) and maintains high throughput (up to 550kg/h). CE/RoHS compliant, it adapts to diverse profile materials and coating requirements. For manufacturers prioritizing automation, cost efficiency, and sustainability, this system combines reliable performance with eco-conscious design—perfect for scaling aluminum profile production without compromising quality.
Key Features
  • Fully automated workflow with robotic loading
  • Multi-stage pre-treatment including degreasing and passivation
  • Precise electrostatic spraying with uniform coating thickness (±3μm)
  • High-efficiency powder recovery system (96% capture rate)
  • 40% reduction in material waste and operational costs
  • Vertical design saves 35% floor space compared to horizontal lines
  • High throughput capacity up to 550kg/h
  • CE/RoHS compliant for environmental standards
Components Brand List
Order Number Component Name Brand Place of Production
1 PCU Siemens (Germany) China
2 Circuit Breaker Schneider (France) China
3 AC Contactor Schneider (France) China
4 Buttons and Indicator Lights Schneider (France) China
5 Thermal Relay Schneider (France) China
6 Spray Room Filter Element Material Toray East (Japan) Japan
7 Pressure Differential Measuring Instrument Dwyer, Delaware (USA) America
8 Pulse Cleaning Valve Cyclocrystals China
9 Fan Room Southern Wind Turbines China
10 Elevator Drive System German SEW or equivalent brand China
11 Elevator Frequency Converter Controller Japan Mitsubishi Japan
12 Pre-treatment Pump Mei Bao China
13 Pre-treat PP Board Low Temperature Resistant PP Board China
14 Cold Rolled Plate or Hot Rolled Plate Baosteel or Angang or Wuhan Iron and Steel China
15 Combustion Engines Zekawa Proportional Burner China
16 Fan Southern Fan and Fengtai Fan China
17 Spray Room Engineering Plastic Sheet Flame Retardant PP Board China
18 Frequency Transformer Inovance China
Custom Technical Solutions
For a complete technical solution of Vertical Powder Coating Equipment For Aluminum Profiles, please contact us. We will customize the design based on your product technical requirements and factory layout.
Our Typical Customers
Automated Vertical Powder Coating Line For Aluminum Profiles With Powder Recovery System 0 Automated Vertical Powder Coating Line For Aluminum Profiles With Powder Recovery System 1
