Vacuum Hydrocarbon Cleaner Machine – Fast Drying via Vacuum Boiling Effect

Brand Name:	Hongshun
Model Number:	HS-6584MF
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CCC/CE

Applications:

Zinc-magnesium-aluminum Precision Machined Parts

Cooling-water Machine:

Air-cooled Industrial Chiller (15HP)

Work Rhythm:

5-7min / Basket

Power Supply:

380±10%/50HZ

Ultrasonic Frequency:

30-50 KHz

Drying Time:

5-7 Minutes

Supply Ability:

5 sets / month

Highlight:

vacuum hydrocarbon cleaner machine

fast drying vacuum cleaner

vacuum boiling effect cleaner

Product Description

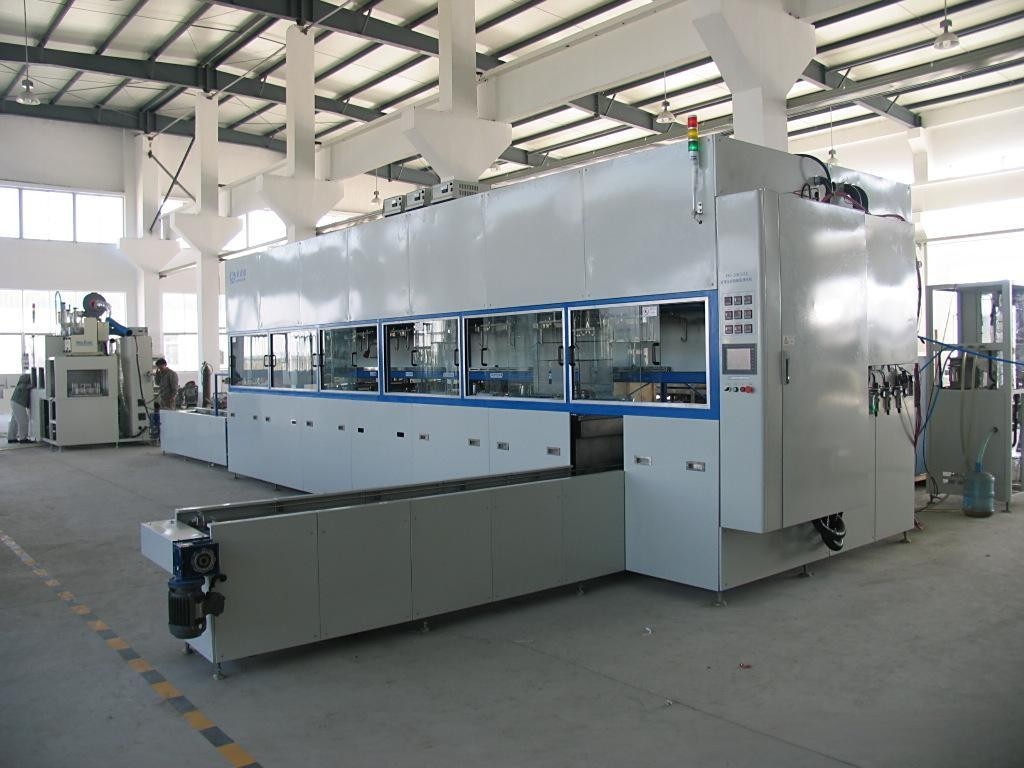

Vacuum Hydrocarbon Cleaner Machine – Fast Drying via Vacuum Boiling Effect

Our Vacuum Hydrocarbon Cleaner Machine redefines efficient part cleaning with its innovative vacuum boiling effect, delivering fast drying and deep degreasing for precision components like electronic connectors, automotive gears, and medical hardware.

Advanced Cleaning Technology

At its core, the vacuum boiling technology lowers the hydrocarbon solvent's boiling point, enabling it to vaporize quickly and lift stubborn contaminants (grease, oil, metal shavings) from even tiny blind holes or crevices—no harsh scrubbing needed. This same effect accelerates drying: the vaporized solvent is rapidly condensed and recovered, cutting drying time by 45% vs. traditional air-dry methods while leaving zero residues.

Built with a sealed vacuum chamber for safety (minimizing solvent exposure) and a solvent recovery system (reducing waste by 90%), it balances performance and sustainability. Semi-automatic controls simplify operation, making it ideal for electronics, automotive, and precision engineering sectors.

Application Scope: Zinc-Magnesium-Aluminum Precision Parts

The automatic vacuum hydrocarbon cleaner is specifically optimized for cleaning zinc-magnesium-aluminum precision machined parts, a material commonly used in automotive, aerospace, and electronic components due to its lightweight and high strength.

For parts with blind holes or bonded structures, the machine's repeated vacuum and repressurization cycles expel air from tiny gaps, allowing hydrocarbon solvent to fully penetrate. The dual-frequency ultrasonic system (28KHz/40KHz) adapts to different part complexities:

28KHz generates stronger cavitation for heavy oil on external surfaces
40KHz delivers gentler, precise cleaning for internal blind holes, avoiding part damage

Beyond zinc-magnesium-aluminum, the machine is versatile enough for other metal parts (e.g., steel, copper) requiring high cleanliness. Its adjustable cleaning cycle (≥5 minutes per basket, customizable) and compatible basket size (550×650×450mm) accommodate various part dimensions.

Consumption Specifications

Order Number	Name	Wastage	Remarks
1	Hydrocarbons	Add as required	Depends on cleaning volume
2	Filter Cotton Core	About 12 per month	Replace as required
3	Heat Medium Oil	100L/2500 hours	Replace every 2500 hours of work
4	Vacuum Pump Lubricating Oil	0.2L/200 hours	Check and add every 200 hours of work
5	Power Consumption	About 30kw/hour	Average value
6	Compressed Air	400 NL/min	Drive use (cylinder, pneumatic valve)

For a complete technical solution of Vacuum Hydrocarbon Cleaner Machine, please contact us. We will customize the design based on your product technical requirements and factory layout.
