Powder Coating Drying Oven with L4500*W2600*H2200 (mm) Dimensions and Room Temperature to 220℃ Range with ±5℃ Uniformity
  • name

Powder Coating Drying Oven with L4500*W2600*H2200 (mm) Dimensions and Room Temperature to 220℃ Range with ±5℃ Uniformity

Brand Name: Hongshun
Model Number: HS-BO200
MOQ: 1 set
Price: $3,000 to $8,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan
Certification:
CCC/CE
External Dimensions:
L4500*W2600*H2200 (mm)
 Furnace Temperature:
From Room Temperature To 220℃
Temperature Uniformity:
±5℃
 control Method:
PLC+HIM Automatic Control
Supply Ability:
5 sets/month
Highlight:

powder coating drying oven

,

industrial sample drying oven

,

box type powder coating oven

Product Description

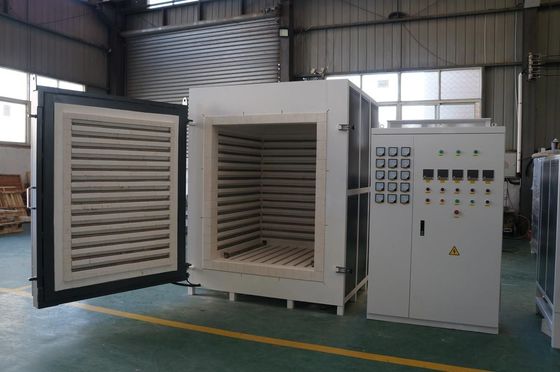

Box Sample Drying Oven for Powder Coating Line
Professional sample drying oven designed specifically for powder coating applications, providing precise temperature control and efficient drying performance for sample preparation.
Technical Specifications
External Dimensions L4500 × W2600 × H2200 (mm)
Temperature Range Room temperature to 220°C with constant temperature control
Temperature Uniformity ±5°C
Heating Period Approximately 15 minutes (varies based on product thickness and powder specifications)
Construction Features
  • Furnace Construction: High-temperature sealed joints with tongue-and-groove plug-in design using machine-made plywood structure
  • Panel Materials: T0.8mm galvanized steel sheets for inner and outer panels with 3# angle steel reinforcement ribs
  • Insulation: 100mm thick 100K Xisler rock wool insulation providing excellent thermal stability and high-temperature resistance
  • Ventilation: Forced exhaust port at top center position to maintain controlled hot air circulation
  • Base Design: 200mm elevated base with machine-made plywood to prevent floor damage and energy waste
  • Furnace Doors: Double doors constructed with 2.0T galvanized steel plates and automotive-style locking mechanism
  • Rail System: 50mm angle iron and square steel tube construction for structural support
Structural Advantages
The furnace features robust corner construction with T1.2mm galvanized steel sheets and pull-through screw fasteners for easy disassembly while maintaining thermal efficiency and aesthetic appeal. The roof corner utilizes T2.0mm galvanized sheets with the same accessible assembly system.
Quality Assurance: Our company operates under strict quality control systems, ensuring equipment is manufactured with optimal processes, premium materials, and high-performance components. Each unit undergoes comprehensive inspection and testing before delivery, with full product quality certification and inspection records provided.
