High-Efficiency Gantry Automatic Anodizing Line with 3 Gantry Single-Arm Double-Hook Cranes and 21 Process Tanks for Aluminum Parts Surface Treatment

Brand Name:	Hongshun
Model Number:	HS-2101
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Applications:

For Aluminum Parts Surface Treatment

Relative Humidity:

Less Than Or Equal To 90%

Water Pressure:

0.3Mpa

Main Power Supply:

380±10%/50HZ

Environmental Temperature:

0℃~45℃ Is Most Suitable

Supply Ability:

5 sets/month

Highlight:

3 Gantry Single-Arm Double-Hook Cranes Automated Anodizing Line

21 Process Tanks Anodizing Production Line

25V-3000A Oil-Cooled Rectifiers Gantry Automatic Anodizing Line

Product Description

High-Efficiency Gantry Automatic Anodizing Line For Aluminum Parts Surface Treatment

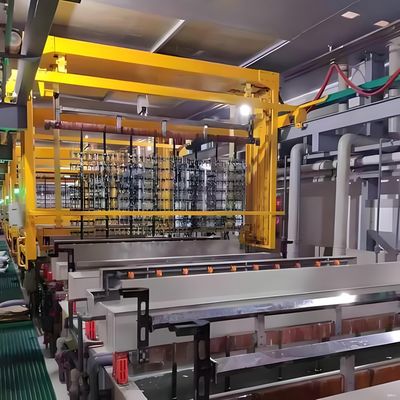

Automatic Anodizing Line Overview

The Gantry Automatic Anodizing Line, designed by Dongguan Hongshun Automation Equipment Co., Ltd., is a professional solution for aluminum parts surface oxidation. Key features include:

3 gantry single-arm double-hook cranes controlled by PLC with Japanese Mitsubishi inverters
Stepless speed regulation (horizontal speed: 4-40m/min, lifting speed: 7-12m/min)
21 process tanks including chemical degreasing, alkali etching, pickling, 3 anodizing tanks, 4 coloring tanks, and 11 water washing tanks
25V-3000A Guangzhou "Jiawei" oil-cooled rectifiers with stable voltage/current output
20HP air-cooled chillers with temperature control accuracy ±2℃
Intelligent electrical control system using Omron PLC and Kunlun Tongtai HMI
Air agitation systems with 10HP low-pressure oil-free blowers
5μ precision filtration units with Taiwan "Guobao" pumps
Compliant with global environmental standards including waste water classification and dedicated exhaust system

Equipment Working Conditions

Parameter	Specification
Environmental temperature	0℃~45℃ is most suitable
Relative humidity	≤ 90%
Water pressure	0.3Mpa
Source of steam	0.2~0.5Mpa
Main power supply	380±10%/50HZ,25V-3000A rectifier,Refrigerator 22.5KW,Filter 8KW

For a complete technical solution of Anodizing Oxidation Production Line, please contact us. We will customize the design based on your product technical requirements and factory layout.

After-sales Technical Services

12 months free technical support and service (except consumables)
Free maintenance for parts damaged by non-human operation errors during warranty
Lifetime paid technical support after warranty expiration
Chinese and English documentation provided for installation, operation and maintenance
Mechanical and electronic parts provided for one year
Warranty documentation provided with effective date and coverage details
On-site engineer monitoring within 6 months after delivery
