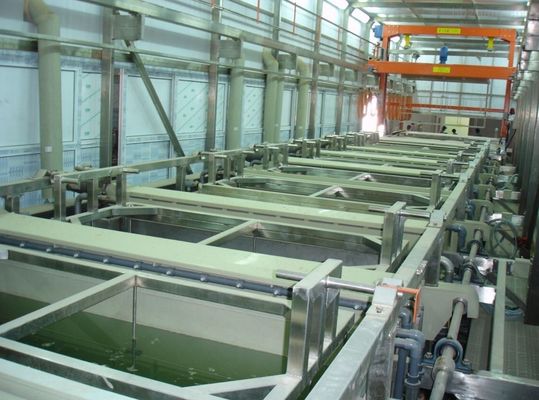

High-Precision Automatic Anodizing Production Line for Aluminum Component Quality Assurance

1 set
MOQ
$200,000 to $500,000
Price
High-Precision Automatic Anodizing Production Line for Aluminum Component Quality Assurance
Features Gallery Product Description Chat Now
Features
Specifications
Applications: Aluminum Component
Tank Material: 15mm Taiwan Lida PP
Water Pressure: 0.3Mpa
Main Power Supply: 380±10%/50HZ
Environmental Temperature: 0℃~45℃ Is Most Suitable
Washing Tanks: 11
Highlight:

automatic anodizing production line

,

high-precision anodizing line

,

aluminum component anodizing system
Basic Infomation
Place of Origin: Dongguan
Brand Name: Hongshun
Certification: CCC/CE
Model Number: HS-2104
Payment & Shipping Terms
Packaging Details: film
Delivery Time: 75 days
Payment Terms: L/C,T/T
Supply Ability: 5 sets/month
Product Description
High-Precision Automatic Anodizing Production Line for Aluminum Component Quality Assurance

Our High-Precision Automatic Anodizing Production Line features 11 dedicated water washing tanks to ensure quality assurance in aluminum anodizing processes. Each washing tank is constructed from 15mm Taiwan Lida PP material with rectangular diagonal overflow devices for thorough removal of residual chemicals, preventing cross-contamination between processes.

Key Features:
  • Gantry cranes with SS body and Italian motors provide ±3mm positioning accuracy
  • Anodizing process uses 3 tanks with 25V-3000A rectifiers for uniform oxide film formation (thickness tolerance ±2μm)
  • 4 temperature-controlled coloring tanks for customized workpiece color
  • Intelligent control system with Omron PLC and Mitsubishi inverters for precise parameter adjustment
  • 5μ precision filtration system with Taiwan "Guobao" pumps for clean washing water
  • HMI displays real-time data (tank temperature, washing time) for quality tracking
Equipment Working Conditions:
Parameter Specification
Environmental temperature 0℃~45℃ (most suitable)
Relative humidity ≤ 90%
Water pressure 0.3Mpa
Source of steam 0.2~0.5Mpa
Main power supply 380±10%/50HZ, 25V-3000A rectifier, Refrigerator 22.5KW, Filter 8KW
Process Flow:
High-Precision Automatic Anodizing Production Line for Aluminum Component Quality Assurance 0
For a complete technical solution of Automatic Anodizing Production Line, please contact us. We will customize the design based on your product technical requirements and factory layout.
After-Sales Technical Services:
  • 12 months free technical support and service (excluding consumables)
  • Lifetime paid technical support after warranty expiration
  • Chinese and English documentation provided for installation, operation and maintenance
  • Mechanical and electronic parts provided for one year
  • Warranty copy provided with effective date, coverage and contact information
  • On-site engineer monitoring within 6 months after delivery
Our Typical Customers:
High-Precision Automatic Anodizing Production Line for Aluminum Component Quality Assurance 1 High-Precision Automatic Anodizing Production Line for Aluminum Component Quality Assurance 2
