Home /Products/Automated Anodizing Line/Automated Anodizing Line With Classified Waste Water Treatment For Eco-Friendly Aluminum Oxidation

Automated Anodizing Line With Classified Waste Water Treatment For Eco-Friendly Aluminum Oxidation

1 set
MOQ
$200,000 to $500,000
Price
Automated Anodizing Line With Classified Waste Water Treatment For Eco-Friendly Aluminum Oxidation
Features Gallery Product Description Chat Now
Features
Specifications
Applications: Aluminum Oxidation
Standards: GB 21900-2008 And EU REACH
Water Pressure: 0.3Mpa
Main Power Supply: 380±10%/50HZ
Environmental Temperature: 0℃~45℃ Is Most Suitable
Chillers: 20HP
Highlight:

automated anodizing line with wastewater treatment

,

eco-friendly aluminum oxidation system

,

automated aluminum anodizing line with warranty
Basic Infomation
Place of Origin: Dongguan
Brand Name: Hongshun
Certification: CCC/CE
Model Number: HS-2106
Payment & Shipping Terms
Packaging Details: film
Delivery Time: 75 days
Payment Terms: L/C,T/T
Supply Ability: 5 sets/month
Product Description
Automated Anodizing Line With Classified Waste Water Treatment For Eco-Friendly Aluminum Oxidation
Automated Anodizing Production Line Overview
Our Automatic Anodizing Line prioritizes eco-friendliness with a classified waste water treatment system that separates acid-base wastewater (from degreasing, etching) and heavy metal wastewater (from anodizing). Each stream is directed to dedicated collection points via corrosion-resistant PVC pipes, facilitating compliance with GB 21900-2008 and EU REACH standards.

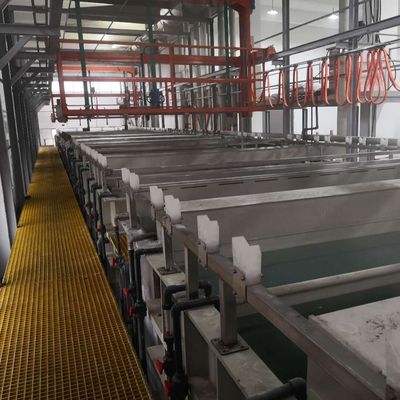

  • 21 process tanks including 3 anodizing tanks (15mm PP material) with 25V-3000A oil-cooled rectifiers
  • 4 coloring tanks (3mm 304 stainless steel) with precise temperature control
  • Gantry cranes with ±3mm positioning accuracy (SS body, Italian motors)
  • Air agitation system with 10HP low-pressure blowers and contamination-resistant PP/stainless steel pipes
  • 5μ filtration system (Taiwan "Guobao" pumps) reduces water usage by 25%
  • PLC control system (Omron CP1L) with remote monitoring and HMI for sustainability tracking
Equipment Working Conditions
Environmental temperature 0℃~45℃ is most suitable
Relative humidity ≤ 90%
Water pressure 0.3Mpa
Source of steam 0.2~0.5Mpa
Main power supply 380±10%/50HZ, 25V-3000A rectifier, Refrigerator 22.5KW, Filter 8KW
Process Flow of Automated Anodizing Production Line
Automated Anodizing Line With Classified Waste Water Treatment For Eco-Friendly Aluminum Oxidation 0
For a complete technical solution of Automated Anodizing Production Line, please contact us. We will customize the design based on your product technical requirements and factory layout.
After-sales Technical Services
  • 12 months free technical support and service (excluding consumables)
  • Lifetime paid technical support after warranty period
  • Chinese and English documentation for installation, operation and maintenance
  • 1-year supply of mechanical and electronic parts
  • Warranty documentation with effective date, coverage and contact information
  • On-site engineer monitoring within 6 months after delivery
Our Typical Customers
Automated Anodizing Line With Classified Waste Water Treatment For Eco-Friendly Aluminum Oxidation 1 Automated Anodizing Line With Classified Waste Water Treatment For Eco-Friendly Aluminum Oxidation 2
