Fast-Cycle Automatic Anodizing Production Line for High-Volume Aluminum Manufacturing

Brand Name:	Hongshun
Model Number:	HS-2107
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Applications:

High-Volume Aluminum Manufacturing

Gantry Cranes Speed:

4-40m/min Horizontal Speed

Water Pressure:

0.3Mpa

Main Power Supply:

380±10%/50HZ

Environmental Temperature:

0℃~45℃ Is Most Suitable

Chillers:

Supply Ability:

5 sets/month

Highlight:

fast-cycle automatic anodizing line

high-volume aluminum anodizing system

automated anodizing production line with warranty

Product Description

Fast-Cycle Automatic Anodizing Production Line for High-Volume Aluminum Manufacturing

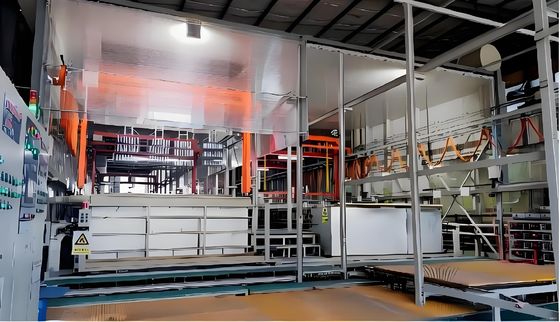

Automatic Anodizing Production Line Overview

Our Fast-Cycle Automatic Anodizing Production Line (5-10min/cycle) delivers high-speed processing without compromising quality for high-volume aluminum manufacturing. Key features include:

Optimized 21-tank process flow with PLC-controlled gantry cranes (4-40m/min horizontal speed) for rapid workpiece transfer
Anodizing section with 3 tanks and 25V-3000A rectifiers providing 20% faster oxide film formation
20HP air-cooled chillers maintain stable tank temperatures during fast cycles
Durable construction: 3mm 304 stainless steel for degreasing/coloring tanks and 15mm PP for washing/anodizing tanks
Advanced control system with Mitsubishi inverters and Omron thermostats
11 washing tanks with overflow devices and 5μ filtration system for solution purity
User-friendly HMI for easy cycle parameter adjustment
Designed for 24/7 operation with minimal maintenance

Equipment Working Conditions

Parameter	Specification
Environmental temperature	0℃~45℃ is most suitable
Relative humidity	≤ 90%
Water pressure	0.3Mpa
Source of steam	0.2~0.5Mpa
Main power supply	380±10%/50HZ, 25V-3000A rectifier, Refrigerator 22.5KW, Filter 8KW

Process Flow

For a complete technical solution of Automatic Anodizing Production Line, please contact us. We will customize the design based on your product technical requirements and factory layout.

After-Sales Technical Services

12 months free technical support and service (excluding consumables)
Free maintenance for parts damaged by non-human operation errors during warranty
Lifetime paid technical support after warranty expiration
Chinese and English documentation provided for installation, operation and maintenance
One year supply of mechanical and electronic parts
Warranty documentation with effective date, coverage and contact information
On-site engineer monitoring within 6 months after delivery
