Customizable Automatic Anodizing Line with 4 Coloring Tanks for Aluminum Part Aesthetics

Brand Name:	Hongshun
Model Number:	HS-2108
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Applications:

Aluminum Part Aesthetics

Coloring Tanks:

Water Pressure:

0.3Mpa

Main Power Supply:

380±10%/50HZ

Environmental Temperature:

0℃~45℃ Is Most Suitable

Chillers:

20HP

Supply Ability:

5 sets/month

Highlight:

customizable automatic anodizing line

aluminum part anodizing coloring tanks

automated anodizing line with warranty

Product Description

Customizable Automatic Anodizing Line with 4 Coloring Tanks for Aluminum Part Aesthetics

Automatic Anodizing Production Line Overview

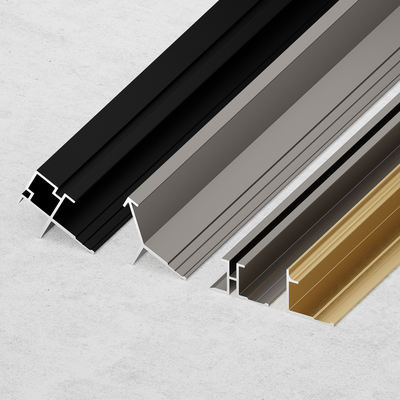

Our Customizable Automatic Anodizing Line offers versatile coloring options via 4 dedicated coloring tanks for enhanced aluminum component aesthetics. Each 3mm 304 stainless steel tank features steam heating (0.2-0.5Mpa) and Omron thermostats (±1℃ temperature control) for precise color adjustment - from light pastels to deep blacks - ideal for automotive, architectural, and consumer goods applications.

The 21-tank process begins with chemical degreasing (oil removal) and alkali etching (surface smoothing), followed by 3 anodizing tanks (25V-3000A rectifiers) that create a porous oxide film essential for color absorption. Four washing tanks ensure color fastness, preventing fading or peeling. The Omron PLC-controlled system supports custom process recipes with HMI storage for 50 color profiles.

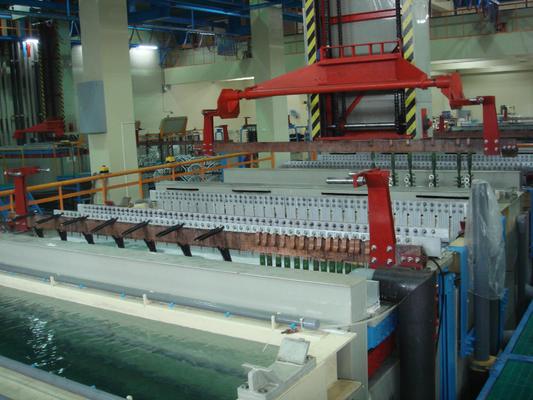

Gantry cranes (±3mm positioning accuracy) ensure even workpiece immersion for uniform coloration. Constructed with corrosion-resistant materials (304 stainless steel, 15mm PP) and featuring an independent exhaust system for fume removal, the line is both durable and safe. A 5μ filtration system (Taiwan "Guobao" pumps) maintains coloring solution cleanliness for consistent batch results.

Equipment Working Conditions

Parameter	Specification
Environmental temperature	0℃~45℃ (most suitable)
Relative humidity	≤ 90%
Water pressure	0.3Mpa
Source of steam	0.2~0.5Mpa
Main power supply	380±10%/50HZ, 25V-3000A rectifier, Refrigerator 22.5KW, Filter 8KW

Process Flow of Automatic Anodizing Production Line

For a complete technical solution of Automatic Anodizing Production Line, please contact us. We will customize the design based on your product technical requirements and factory layout.

After-sales Technical Services

12 months free technical support and service (excluding consumables) with free maintenance for non-human error parts
Lifetime paid technical support after warranty expiration
Chinese and English documentation provided for installation, operation, and maintenance
One year supply of mechanical and electronic parts
Warranty copy provided with effective date, coverage, and contact information
On-site engineer monitoring within 6 months after delivery
