Heavy-Duty Automatic Anodizing Line with SS Gantry Cranes for Large Aluminum Workpieces

Brand Name: Hongshun
Model Number: HS-2109
MOQ: 1 set
Price: $20,000 to $50,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan
Certification:
CCC/CE
Applications:
Large Aluminum Workpieces
PLC Control System:
Omron CP1L
Water Pressure:
0.3Mpa
Main Power Supply:
380±10%/50HZ
Environmental Temperature:
0℃~45℃ Is Most Suitable
Chillers:
20HP
Supply Ability:
5 sets/month
Highlight:

heavy-duty automatic anodizing line

,

anodizing line with SS gantry cranes

,

automatic anodizing line for aluminum

Product Description
Heavy-Duty Automatic Anodizing Line with SS Gantry Cranes for Large Aluminum Workpieces

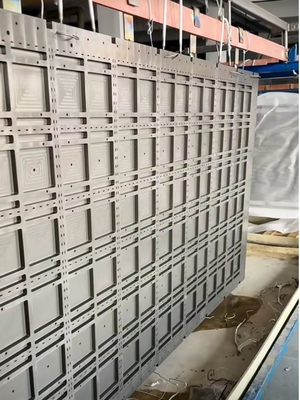

Heavy-Duty Automatic Anodizing Line with SS Gantry Cranes for Large Aluminum Workpieces (3600 ×1300×30mm)
Automatic Anodizing Production Line Overview:
Our Heavy-Duty Automatic Anodizing Line is engineered for large aluminum workpieces (max size: 3600×1300×30mm), featuring:
  • SS gantry cranes with Italian "Simik" 2HP brake motors (100kg lifting capacity)
  • Double-axis drive for stable horizontal movement (4-40m/min) with soft landing technology
  • Oversized process tanks: chemical degreasing (800×4000×1600mm, 3mm 304 stainless steel), anodizing (same size, 15mm PP), and coloring tanks
  • Anodizing section with 3 tanks and 25V-3000A rectifiers for uniform surface coverage
  • Reinforced tank structures (A3 steel frames with PP/stainless steel coating)
  • 10HP blower air agitation system with 2" galvanized main tubes
  • PLC control system (Omron CP1L) with HMI displaying load capacity and position data
  • Multiple safety protections: overcurrent protection, collision avoidance, and emergency stop
Ideal for shipbuilding, aerospace, and large architectural profile industries.
Equipment Working Conditions
Parameter Specification
Environmental temperature 0℃~45℃ (optimal)
Relative humidity ≤ 90%
Water pressure 0.3Mpa
Source of steam 0.2~0.5Mpa
Main power supply 380±10%/50HZ, 25V-3000A rectifier, Refrigerator 22.5KW, Filter 8KW
Process Flow of Automatic Anodizing Production Line
Heavy-Duty Automatic Anodizing Line with SS Gantry Cranes for Large Aluminum Workpieces 0
For a complete technical solution of Automatic Anodizing Production Line, please contact us. We will customize the design based on your product technical requirements and factory layout.
After-sales Technical Services
  • 12 months free technical support and service (excluding consumables)
  • Lifetime paid technical support after warranty expiration
  • Chinese and English documentation for installation, operation, and maintenance
  • 1-year supply of mechanical and electronic parts
  • Warranty copy provided with effective date, coverage, and contact details
  • On-site engineer monitoring within 6 months after delivery

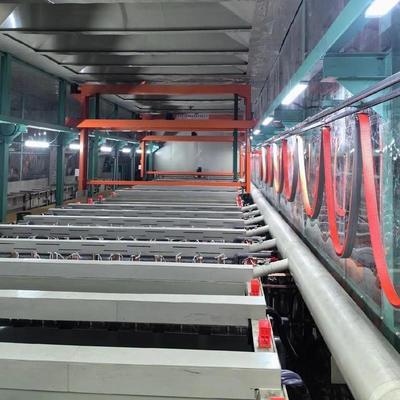

Our Typical Customers
Heavy-Duty Automatic Anodizing Line with SS Gantry Cranes for Large Aluminum Workpieces 1 Heavy-Duty Automatic Anodizing Line with SS Gantry Cranes for Large Aluminum Workpieces 2
