Precision Temperature-Controlled Automatic Anodizing Line For Uniform Aluminum Oxide Film

Brand Name:	Hongshun
Model Number:	HS-2124
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Applications:

For Aluminum Oxide Film

Thermostats:

Omron

Water Pressure:

0.3Mpa

Main Power Supply:

380±10%/50HZ

Environmental Temperature:

0℃~45℃ Is Most Suitable

Chillers:

Supply Ability:

5 sets/month

Highlight:

temperature-controlled anodizing line

automatic aluminum oxide film system

precision automated anodizing equipment

Product Description

Precision Temperature-Controlled Automatic Anodizing Line For Uniform Aluminum Oxide Film

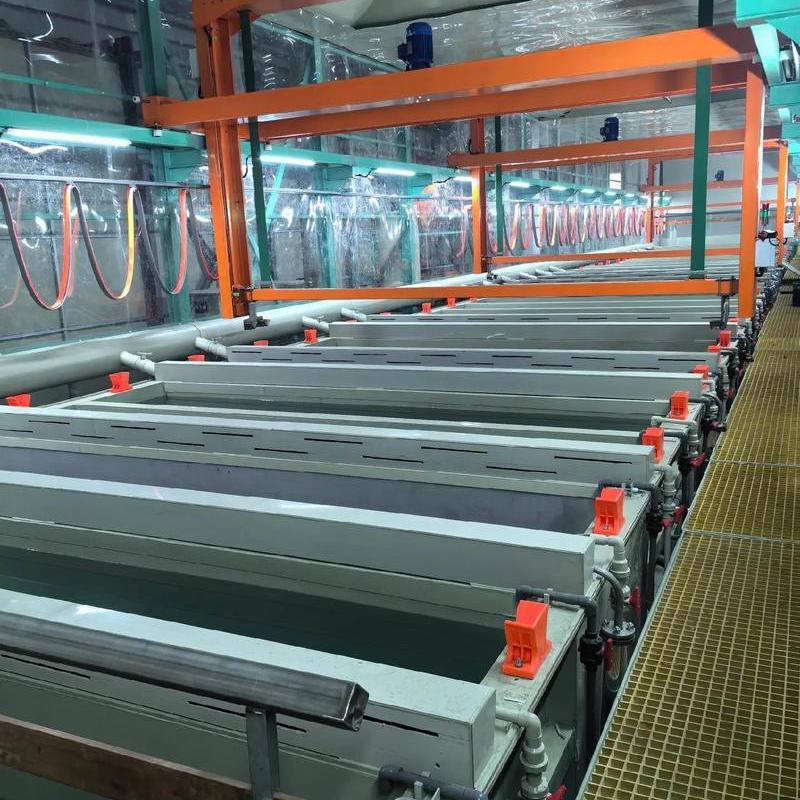

Automatic Anodizing Production Line Overview

Our Precision Temperature-Controlled Automatic Anodizing Line ensures uniform oxide film formation through advanced temperature control technology. Key features include:

3 anodizing tanks equipped with 20HP air-cooled chillers (U.S. "Tecumseh" compressors) and Omron thermostats
Maintains temperature at 15-20℃ (±2℃) for consistent oxide film formation (thickness variation <2μm)
Chemical degreasing tank uses steam heating (0.2-0.5Mpa) with Omron thermostats at 80-90℃ (±1℃)
4 coloring tanks with steam heating controlled to 50-60℃ (±1℃) for uniform color absorption
Multiple temperature sensors in each tank (top, middle, bottom) ensure even heat distribution
PLC control system adjusts heating/cooling in real time based on sensor data
50mm rock wool insulation for degreasing/coloring tanks reduces temperature fluctuations
11 washing tanks with temperature monitoring maintain optimal cleaning temperatures

Equipment Working Conditions

Environmental temperature	0℃~45℃ is most suitable
Relative humidity	less than or equal to 90%
Water pressure	0.3Mpa
Source of steam	0.2~0.5Mpa
Main power supply	380±10%/50HZ,25V-3000A rectifier, Refrigerator 22.5KW, Filter 8KW

Process Flow of Automatic Anodizing Production Line

For a complete technical solution of Automatic Anodizing Production Line, please contact us. We will customize the design based on your product technical requirements and factory layout.

After-sales Technical Services

12 months free technical support and service (excluding consumables)
Free maintenance for parts damaged by non-human operation errors during warranty
Lifetime paid technical support after warranty expiration
Chinese and English documentation provided for installation, operation and maintenance
Mechanical and electronic parts provided for one year
Warranty documentation with effective date, coverage and contact information
On-site engineer monitoring within 6 months after delivery and operation
