Cost-Effective Semi-Automatic Anodizing Line With Manual Adjustment For Small-Batch Aluminum Production

Brand Name: Hongshun
Model Number: HS-1121
MOQ: 1 set
Price: $20,000 to $50,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan
Certification:
CCC/CE
Applications:
For Small-Batch Aluminum Production
Oxide Film Thickness Tolerance:
±3μm
Water Pressure:
0.3Mpa
Main Power Supply:
380±10%/50HZ
Environmental Temperature:
0℃~45℃ Is Most Suitable
Chillers:
20HP
Supply Ability:
5 sets/month
Highlight:

semi-automatic anodizing line for aluminum

,

small-batch anodizing line with manual adjustment

,

cost-effective automated anodizing line

Product Description
Cost-Effective Semi-Automatic Anodizing Line With Manual Adjustment For Small-Batch Aluminum Production
Product Overview
Our Semi-Automatic Anodizing Line is designed for small-batch aluminum production, offering a cost-effective solution that combines automated core processes with manual adjustments. This system reduces equipment costs by 30% compared to fully automatic lines while maintaining quality standards.
Key Features
  • Automated anodizing and cooling processes with manual workpiece positioning
  • 2-4 anodizing tanks constructed from 12-15mm PP material
  • 2500A/15V rectifiers for stable current output
  • Water-cooled chillers for basic temperature control
  • Manual loading/unloading stations for handling delicate or irregular parts
  • Basic PLC controls for timing and temperature monitoring
  • Manual switches for crane movement
  • Low-power blower air agitation system for solution mixing
  • Basic washing tanks with manual drainage
  • Compact design requiring minimal floor space
Quality Standards
The system maintains oxide film thickness tolerance of ±3μm and ensures color uniformity across batches, meeting essential quality requirements for small-batch production.
Equipment Working Conditions
Parameter Specification
Environmental temperature 0℃~45℃ (most suitable)
Relative humidity ≤ 90%
Water pressure 0.3Mpa
Source of steam 0.2~0.5Mpa
Main power supply 380±10%/50HZ, 25V-3000A rectifier, Refrigerator 22.5KW, Filter 8KW
Process Flow
Cost-Effective Semi-Automatic Anodizing Line With Manual Adjustment For Small-Batch Aluminum Production 0
For a complete technical solution of our Semi-Automatic Anodizing Line, please contact us. We will customize the design based on your product technical requirements and factory layout.
After-sales Technical Services
  • 12 months free technical support and service (excluding consumables)
  • Free maintenance for parts damaged by non-human operation errors
  • Lifetime paid technical support after warranty expiration
  • Chinese and English documentation provided for installation, operation and maintenance
  • Mechanical and electronic parts provided for one year
  • Warranty copy provided with effective date, coverage and contact information
  • On-site equipment monitoring by engineers within 6 months after delivery
Application Fields

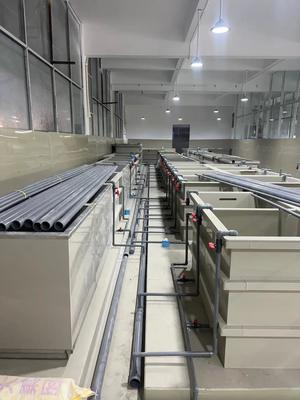

Cost-Effective Semi-Automatic Anodizing Line With Manual Adjustment For Small-Batch Aluminum Production 1

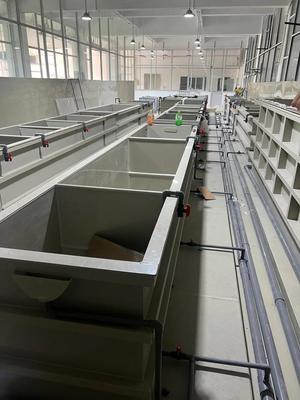

Cost-Effective Semi-Automatic Anodizing Line With Manual Adjustment For Small-Batch Aluminum Production 2
Cost-Effective Semi-Automatic Anodizing Line With Manual Adjustment For Small-Batch Aluminum Production 3
