Semi-Automatic Anodizing Line With Manual Loading/Unloading For Irregularly Shaped Aluminum Parts

1 set
MOQ
$100,000 to $200,000
Price
Semi-Automatic Anodizing Line With Manual Loading/Unloading For Irregularly Shaped Aluminum Parts
Features Gallery Product Description Chat Now
Features
Specifications
Applications: For Irregularly Shaped Aluminum Parts
Safety Standards: OSHA, CE
Water Pressure: 0.3Mpa
Main Power Supply: 380±10%/50HZ
Environmental Temperature: 0℃~45℃ Is Most Suitable
Chillers: 20HP
Highlight:

semi-automatic anodizing line for aluminum

,

manual loading anodizing line

,

anodizing line for irregular parts
Basic Infomation
Place of Origin: Dongguan
Brand Name: Hongshun
Certification: CCC/CE
Model Number: HS-3121
Payment & Shipping Terms
Packaging Details: film
Delivery Time: 75 days
Payment Terms: L/C,T/T
Supply Ability: 5 sets/month
Product Description
Semi-Automatic Anodizing Line With Manual Loading/Unloading For Irregularly Shaped Aluminum Parts

Our Semi-Automatic Anodizing Line is specifically designed for processing irregularly shaped aluminum parts (such as custom brackets and decorative components) that require manual handling to ensure proper treatment. The system combines manual loading/unloading stations with automated core processes for optimal results.

Key Features
  • Manual loading/unloading stations with custom fixtures for careful part positioning
  • Automated core processes including anodizing, coloring, and cooling
  • 3 anodizing tanks (15mm PP construction) with 25V-3000A adjustable rectifiers
  • 2 coloring tanks (3mm 304 stainless steel construction)
  • Precision water-cooled chillers (±3℃ temperature control)
  • Manual immersion time adjustment via HMI interface
  • SUS304 gantry cranes (100-250kg capacity) with manual override functions
  • Comprehensive safety features including limit switches and emergency stops
  • Simple exhaust system for fume removal
  • Ideal for small to medium batches (10-50 parts per cycle)
  • Easy reconfiguration for different part designs
Equipment Working Conditions
Parameter Specification
Environmental temperature 0℃~45℃ (optimal range)
Relative humidity ≤90%
Water pressure 0.3Mpa
Source of steam 0.2~0.5Mpa
Main power supply 380±10%/50HZ, 25V-3000A rectifier, Refrigerator 22.5KW, Filter 8KW
Process Flow
Semi-Automatic Anodizing Line With Manual Loading/Unloading For Irregularly Shaped Aluminum Parts 0

For a complete technical solution of our Semi-Automatic Anodizing Line, please contact us. We will customize the design based on your product technical requirements and factory layout.

After-sales Technical Services
  • 12 months free technical support and service (excluding consumables)
  • Free maintenance for parts damaged by non-human operation errors
  • Lifetime paid technical support after warranty expiration
  • Chinese and English documentation provided for installation, operation and maintenance
  • Mechanical and electronic parts provided for one year
  • Warranty copy provided with effective date, coverage and contact information
  • On-site equipment monitoring by engineers within 6 months after delivery
Our Customers and Applications

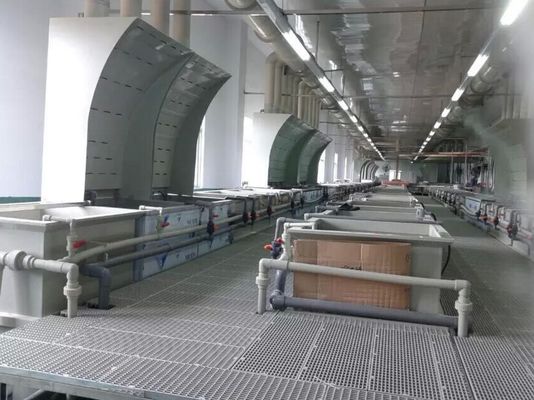

Semi-Automatic Anodizing Line With Manual Loading/Unloading For Irregularly Shaped Aluminum Parts 1

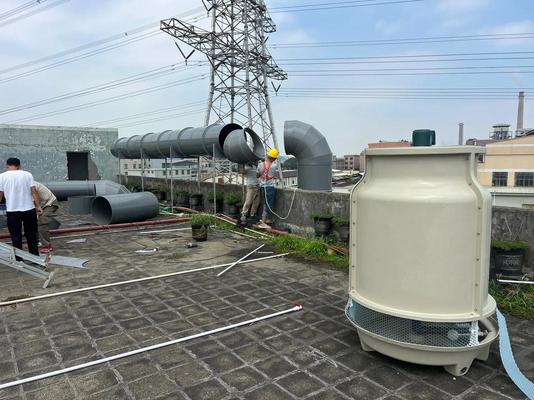

Semi-Automatic Anodizing Line With Manual Loading/Unloading For Irregularly Shaped Aluminum Parts 2 Semi-Automatic Anodizing Line With Manual Loading/Unloading For Irregularly Shaped Aluminum Parts 3 Semi-Automatic Anodizing Line With Manual Loading/Unloading For Irregularly Shaped Aluminum Parts 4
