Integrated Anodizing Machine Solves Small-batch Surface Treatment Problem

Brand Name: Hongshun
Model Number: JC-1682
MOQ: 1 set
Price: $12,000 to $16,000
Packaging Details: wooden box
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan
Certification:
CCC/CE
Application:
Small-batch Surface Treatment
Operating Voltage:
220AC ±10%,50/60Hz
Environmental Temperature:
-10°C To 40°C
Power Consumption:
4KW
Maximum Product Size:
400*200*100mm
Dimensions:
1600*800*1800 Mm
Supply Ability:
15 sets/month
Highlight:

small-batch anodizing machine

,

automated anodizing line equipment

,

integrated surface treatment solution

Product Description

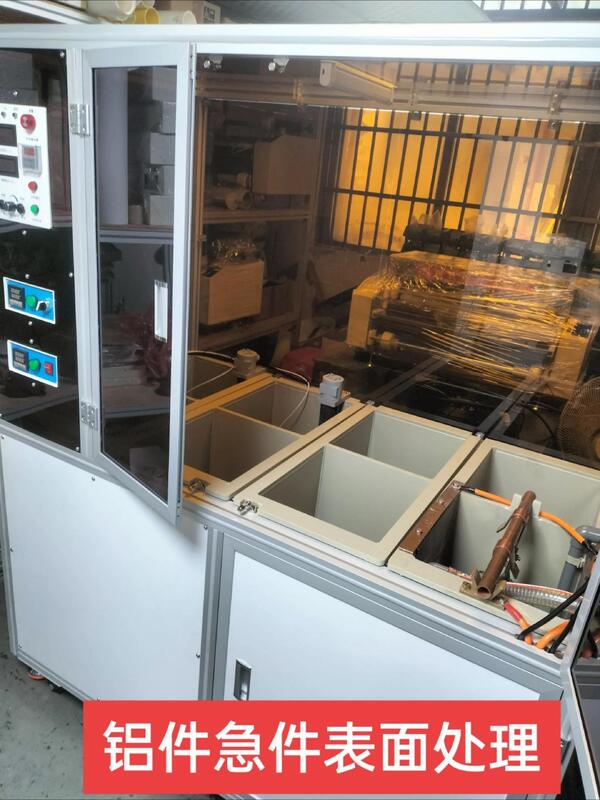

Integrated Anodizing Machine for Small-Batch Surface Treatment
This integrated small-scale anodizing equipment is specifically designed for prototyping and small-batch production of aluminum alloy products, addressing the challenges of high costs and complexity in traditional anodizing processes.
Compact Design & Key Features
Compact dimensions of 1600mm * 800mm * 1800mm with integrated water chiller system. The equipment includes a precision rectifier for controlling oxidation time and oxide film thickness, along with 8 specialized processing tanks.
  • Oxidation tank with temperature control
  • Multiple water washing stations
  • Dyeing tank for color application
  • Chemical cleaning tank
  • Sealing tank for final protection
  • Additional cleaning tanks
Technical Specifications
Dimensions 1600 * 800 * 1800 mm
Weight 300 kg
Operating Voltage 220AC ±10%, 50/60Hz ±1Hz
Power Consumption 4KW
Maximum Product Size 400 * 200 * 100 mm
Operating Environment Working temperature -10°C to 40°C
Safety Guidelines
  • Ensure proper ventilation in the operating environment
  • Immediately rinse eyes with clean water if contact occurs with oxidizing agents or chemical solutions
  • Exercise caution around high-temperature sealing and chemical polishing tanks to prevent burns
  • Disconnect power supply before maintenance or inspection
  • Disconnect power when machine will be unused for extended periods
Operating Procedure
  • Start refrigeration unit in advance to maintain oxidation tank temperature at 0-5°C
  • Preheat sealing and chemical polishing tanks to 80-100°C
  • Set voltage to 8V using control panel adjustment
  • Configure oxidation time to 15 minutes
  • Select appropriate hanging equipment for product type
  • Follow established processing sequence and timeline
  • Initiate oxidation process via control interface
  • Properly terminate process upon completion
Integrated Anodizing Machine Solves Small-batch Surface Treatment Problem 0
About Dongguan Hongshun Automation Equipment Co., Ltd.
Located in Dongguan City, the global manufacturing capital, we are professional manufacturers of high-precision surface treatment equipment with comprehensive turnkey solutions.
Our Product Range
  • Ultrasonic cleaning equipment
  • Vacuum hydrocarbon cleaning machines
  • High-pressure spray cleaning machines
  • Spraying lines and passivation acid washing equipment
  • Anodizing and electroplating equipment
  • Industrial pure water machines and reclaimed water reuse equipment
  • Tunnel drying furnaces and peripheral equipment
We provide complete surface treatment projects integrating independent R&D, production, installation, training, and after-sales service with comprehensive quality management systems and strong technical support.
