Energy Efficiency Automated Powder Coating Line Automotive Parts Metal Powder Coating Line

Brand Name:	Hongshun
Model Number:	HS-2460CPP
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Workpiece Name:

Automotive Parts

Maximum Workpiece Size Can Be Used:

L4000*W500*H1200mm Maximum Product Size

Process Speed:

3m/min

Chain Length:

Heavy 5T Chain 480m

Hanging Fixture Spacing:

150mm

Control The Power:

Single Phase AC220V-50Hz Single Phase + Ground Wire

Drive Power:

Three-phase AC380V-50Hz Three-phase Five-wire System

Supply Ability:

5 sets/month

Highlight:

Energy Efficiency Automated Powder Coating Line

Automotive Parts Automated Powder Coating Line

Automotive Parts Metal Powder Coating Line

Product Description

Energy Efficiency Automated Powder Coating Line for Automotive Parts

Our Automated Powder Coating Line delivers superior efficiency for automotive parts manufacturing. Featuring an advanced conveyor system, it rapidly processes components through pretreatment, powder application, and curing stages. Electrostatic spray guns ensure precise powder deposition, significantly reducing production time. The modular design facilitates easy maintenance and future expansion, making it ideal for coating car body parts, wheels, and other automotive components.

Suspended Conveyor System Specifications

Parameter	Specification
Length	460m
Type	5T heavy chain, pitch 150mm
Operation Mode	Continuous, counterweight tension
Single Load Capacity	≤ 35KG
Break Strength	7400kg.Sq.cm
Process Speed	3m/min
Operation Speed	0-6m/min adjustable
Main Materials	Track: 65753.0mm460m (including elbow, lifting) Flange plates: 400 sets Adjustment seat: Ø40002 sets Stretchable track: 90904.0mm 20 pieces Hanging bracket: 50100*T2mm square tube Paint and accessories: 1 type

Automated Powder Coating Process Flow

Loading → Spray pre-degreasing & residue removal → Main degreasing (swimming + ultrasonic + heating cleaning) → Spray water washing (I) → Spray water washing (II) → Activation by swimming → Spray washing (3) → Spray washing (4) → Swimming type passivation → Spray washing (5) → Spray washing (6) → Pure water cleaning + adjustable automatic blow water → Water drop removal → Dehydration drying furnace → Natural cooling → Online roasting → Anti-pull installation baking → PP board automatic coating powder spraying cabinet → Hurricane recovery powder supply center → Secondary recovery system → Grinding cabinet → Curing oven drying → Natural cooling → QC inspection → Unloading → Packaging

Pretreatment Process Timing

Process	Time	Process	Time
Spray pre-oil removal	1.5min	The swimming style main activated	4-5min
Swimming type main oil removal	4-5min	Spray washing 3	1.5min
Spray washing 1	1.5min	Spray washing 4	1.5min
Spray washing 2	1.5min	Swimming type passivation	4-5min
Spray washing 5	1.5min	Spray washing 6	1.5min
Pure water wash	1.5min

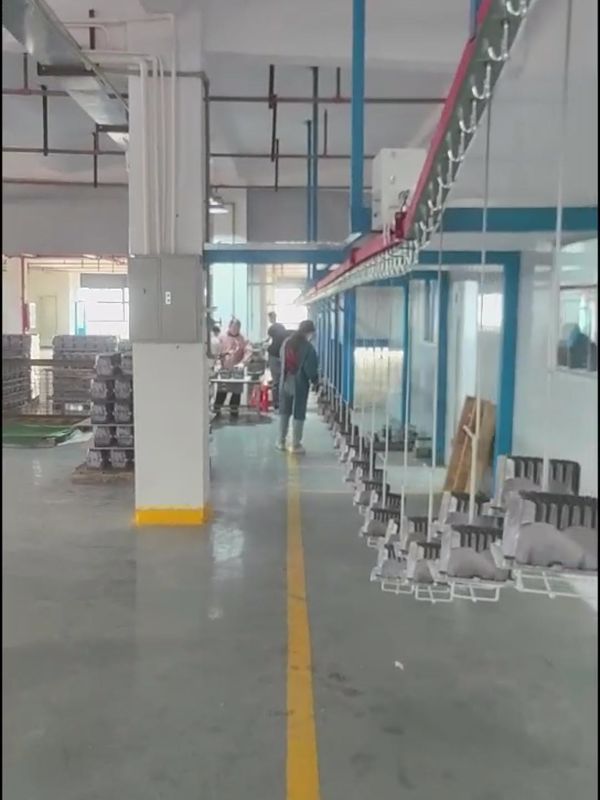

Application Gallery

Technical Support & Service Commitment

We extend our congratulations on your company's prosperous business and growing order volume. Our experienced engineering team stands ready to provide comprehensive technical support and service, backed by detailed pre-sale consultation and reliable after-sales service. We look forward to a productive and pleasant cooperation.
