Easy Operation Electrostatic Powder Coating Line AC220V With Remote Monitoring

Brand Name:	Hongshun
Model Number:	HS-AS260CPP
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Workpiece Name:

Metal Tanks

Maximum Workpiece Size Can Be Used:

L1000*W800*H1000mm Maximum Product Size

Swimming Type Passivation:

4-5min

Fan Power:

30kw

Control The Power:

Single Phase AC220V-50Hz Single Phase + Ground Wire

Drive Power:

Three-phase AC380V-50Hz Three-phase Five-wire System

Supply Ability:

5 sets/month

Highlight:

Easy Operation Electrostatic Powder Coating Line

Remote Monitoring Electrostatic Powder Coating Line

AC220V Powder Coating Paint Lines Systems

Product Description

Automated Powder Coating Line with Remote Monitoring

Our Automated Powder Coating Line with remote monitoring provides convenient operation and real-time performance tracking. The built-in monitoring system enables operators to monitor line performance from any location using mobile devices or computers. The modular design ensures straightforward installation and maintenance, making it ideal for multi-site operations and remote production optimization. Suitable for coating diverse products including metal tanks and plastic components.

Powder Supply Center Specifications

Dimensions: L1200 × D650 × H2050

Main Components

Vibration table powder supply device
Powder automatic recovery system
Spray gun and pneumatic cleaning system of recovery pipeline
Speed reducer

The powder supply center is engineered for rapid color change operations, replacing traditional powder supply buckets. External integrated powder pump groups facilitate easier cleaning. Powder is poured into the fluidized powder tank and transported via integrated powder pumps to supply the spray guns.

Equipped with an efficient vibrating screen (60 mesh), the system screens recovered powder to separate contaminants and large particles, ensuring only clean powder enters the supply center. As an integral component of the quick color change system, the powder supply center directly impacts final product spray quality and serves as the core of automated production.

Automated Powder Coating Process Flow

Loading → Spray pre-degreasing and residue removal → Main degreasing (swimming + ultrasonic + heating cleaning) → Spray water washing (I) → Spray water washing (II) → Activation by swimming → Spray washing (3) → Spray washing (4), swim lay type passivation, spray washing (5) → Spray washing (6) → Pure water cleaning + adjustable automatic blow water, water drainage, dehydration drying furnace, natural cooling, online roast → Under belt anti-pull installation baked → PP board automatic coating powder spraying cabinet → Hurricane recovery powder supply center → Secondary recovery system → Grinding cabinet → Curing oven drying → Natural cooling → QC inspection → Unloading → Packaging

Pretreatment Process Timing

Process	Time	Process	Time
Spray pre-oil removal	1.5 min	The swimming style main activated	4-5 min
Swimming type main oil removal	4-5 min	Spray washing 3	1.5 min
Spray washing 1	1.5 min	Spray washing 4	1.5 min
Spray washing 2	1.5 min	Swimming type passivation	4-5 min
Spray washing 5	1.5 min	Spray washing 6	1.5 min
Pure water wash	1.5 min

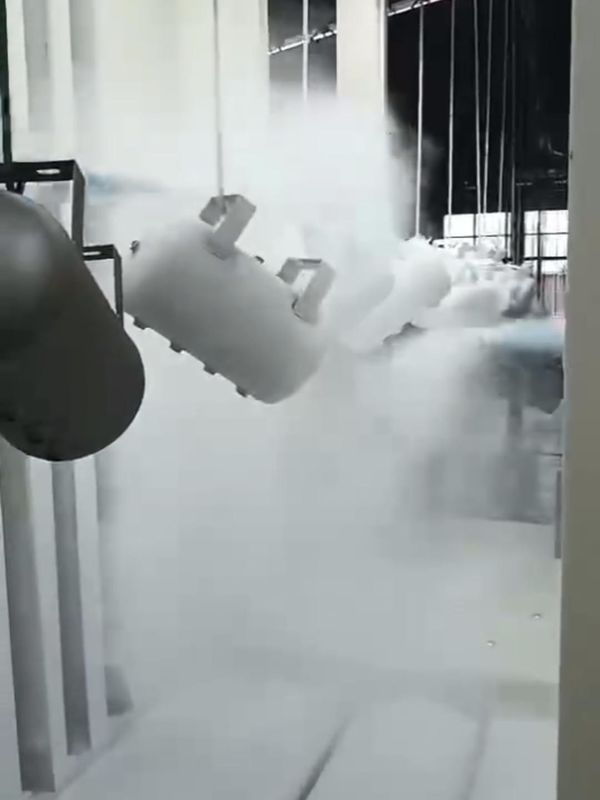

Application Gallery

Our solutions are designed to meet all technical requirements while minimizing investment and reducing production energy consumption, ultimately lowering overall production costs for our customers.
