Automated Powder Coating Line for High - Gloss Finishes on Appliance Parts

Brand Name:	Hongshun
Model Number:	HS-AS560CPP
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Workpiece Name:

Appliance Parts

Maximum Workpiece Size Can Be Used:

L1000*W800*H1000mm Maximum Product Size

Safety Standard:

1P54

Standard Sieve:

350 Microns

Control The Power:

Single Phase AC220V-50Hz Single Phase + Ground Wire

Drive Power:

Three-phase AC380V-50Hz Three-phase Five-wire System

Supply Ability:

5 sets/month

Highlight:

ac220v automated powder coating line

Product Description

Automated Powder Coating Line for High-Gloss Finishes on Appliance Parts

Our Automated Powder Coating Line delivers exceptional mirror-like high-gloss finishes for appliance parts through specialized polishing and curing processes. Engineered for precision powder application, this system enhances both aesthetic appeal and durability for components like water heaters and air conditioner casings.

Key System Components

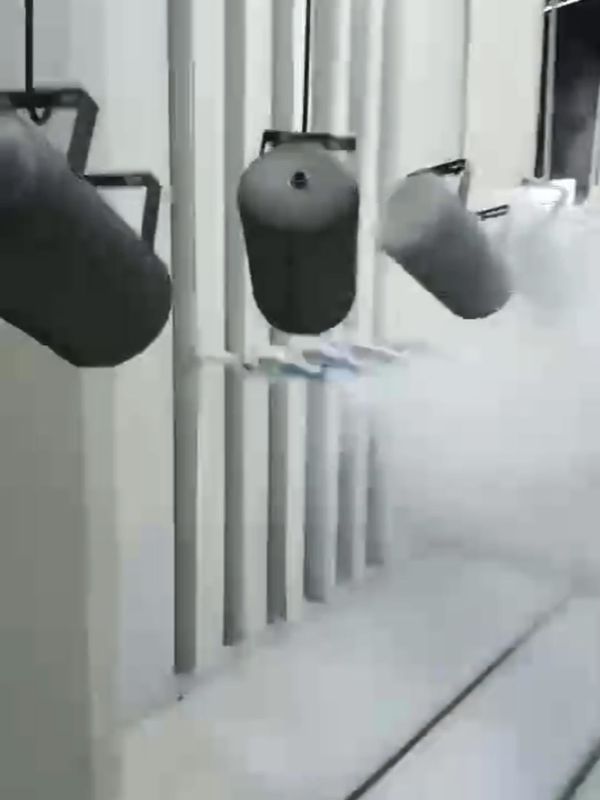

Wagner Powder Electrostatic Spray System:

8 sets of automatic powder spraying guns
4 sets of manual powder guns
Advanced imported Wagner powder spraying technology
Next-generation electrostatic spraying equipment

System Features

Optimized design with compact, aesthetically pleasing structure
Fully sealed controller body prevents powder leakage and circuit shorts
Lightweight split high-voltage electrostatic powder gun (480g)
Superior coverage for flat surfaces, negative corners, and complex geometries
High powder utilization rate with uniform, repeatable spraying effects
Compatible with all powder types including metal powders
Unique needle flow design prevents powder accumulation
Stainless steel powder bucket for easy cleaning
Advanced powder transfer pump with easy-clean internal design

Technical Specifications

Electronic Controller	Air Control	Powder Pistol
Input voltage: single phase 220V 50HZ	Electrovalve control power: 24VDC	Input air pressure: 0-18VAC
Input power: 50VA	Input pressure: 0-8bar	Power frequency: ~20KHZ
Output voltage: 0-18VAC	Output pressure: 0-5bar	Input current: up to 0.8A
Output frequency: ~20KHZ		Output current: up to 0.8A
Safety standard: IP54		Output voltage: 0-100KVDC
Spray gun weight: ~480g		Output powder: 480g/min (at 5 bar)
Control pneumatic voltage: 24VDC		Power cable: ~2m

Coating Process Flow

Loading → Spray pre-degreasing & residue removal → Main degreasing (swimming + ultrasonic + heating) → Spray water washing (I) → Spray water washing (II) → Activation (swimming) → Spray washing (3) → Spray washing (4) → Swimming passivation → Spray washing (5) → Spray washing (6) → Pure water cleaning + automatic blow water → Dehydration drying → Natural cooling → Online roasting → Anti-pull installation baking → Automatic powder spraying → Hurricane recovery powder supply → Secondary recovery system → Grinding → Curing oven drying → Natural cooling → QC inspection → Unloading → Packaging

Pretreatment Process Timing

Process	Time	Process	Time
Spray pre-oil removal	1.5 min	Spray washing 5	1.5 min
Swimming main oil removal	4-5 min	Spray washing 6	1.5 min
Spray washing 1	1.5 min	Pure water wash	1.5 min
Spray washing 2	1.5 min
Swimming activation	4-5 min
Spray washing 3	1.5 min
Spray washing 4	1.5 min
Swimming passivation	4-5 min

Customer Applications

Our production equipment is designed for maximum versatility, accommodating diverse product specifications while ensuring future upgrade convenience and cost-effectiveness for customer facility modifications.
