Cast Iron Manifolds Ultrasonic Cleaning System With High Flow Nozzles Drying Engine Parts

Brand Name:	Hongshun
Model Number:	HS-2500SC
MOQ:	1 set
Price:	$10,000 to $30,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CCC/CE

Applications:

Automotive Engine Parts

Conveyor Speed:

2-8m/min

Spray Pressur:

160bar

Power Supply:

380±10%/50HZ

Dryer Temperature:

Ultrasonic Frequency:

28KHZ

Supply Ability:

5 sets/month

Highlight:

Cast Iron Manifolds ultrasonic cleaning system

High Flow Nozzles ultrasonic cleaning system

Engine Parts ultrasonic cleaning machine

Product Description

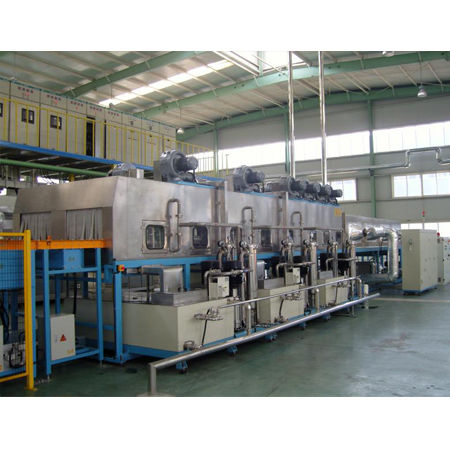

Cast Iron Manifolds Ultrasonic Cleaning System With High Flow Nozzles

High-performance spray washer designed for cleaning cast iron manifolds with high-flow nozzles and integrated drying system for automotive engine parts.

System Overview

High-flow nozzles deliver 160 bar spray pressure to effectively clean cast iron manifolds. The robust construction handles heavy components, while the 85℃ drying system removes moisture from internal channels. This system is essential in automotive engine part production for removing carbon deposits and oil residues, significantly improving engine performance.

Cleaning Performance Standards

Parameter	Requirement
Total Residue Weight	≤ 4.5mg
Metal Particle Diameter	≤ 600μm
Non-Metallic Particle Diameter	≤ 1800μm
Fiber Length	≤ 4000μm
Surface Finish	No watermarks (with pure water system), completely dry including blind holes

Process Flow

Manual feeding → Ultrasonic cleaning → Fixed-point spraying → Air cutting → Fixed-point spraying → Mobile spraying → Mobile air cutting → Fixed-point air cutting → Vacuum drying → Cooling section → Automatic unloading (truss manipulator) → Full inspection and packaging

Control System Configuration

Complete operation controlled via touch interface with automatic and manual modes
PLC-controlled storage tanks with level controllers for replenishment, heating, and pumping
Emergency stop functionality with sound and light alarms for abnormal conditions
Photoelectric sensors and emergency stop buttons at equipment ends
Lockable control panel to prevent unauthorized parameter modifications
Individual temperature setting controls with locking capability
Separate switching for pumps, motors, circulation, and heating systems with status display
Overload protection system for conveying mechanism
Dedicated power distribution cabinet with functional and electrical separation

For Complete Technical Solution: Contact us for customized design based on your specific product requirements and factory layout.

Our Customers

About Our Company

Dongguan Hongshun Automation Equipment Co., Ltd., located in Dongguan City - the global manufacturing capital, is a professional manufacturer of high-precision surface treatment equipment. Our comprehensive product range includes ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces, and peripheral supporting equipment and consumables.

We provide complete turnkey surface treatment solutions, integrating independent R&D, production manufacturing, installation training, and after-sales service. Our company maintains a comprehensive quality management system and strong technical capabilities to serve industrial manufacturing needs.
