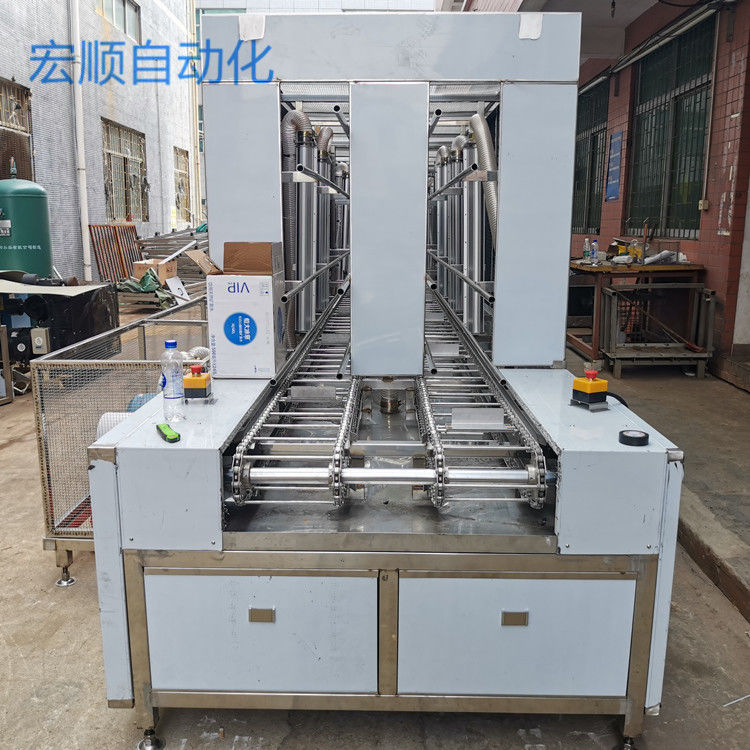

Spray Cleaning Line for Metal Brackets with Automated Loading Drying Furniture Industry
Automated loading system feeds metal brackets into 150bar spray cleaning. The 60℃ dryer dries brackets quickly, and the system integrates with production lines. Suitable for furniture industry, removing welding flux and oil, improving assembly efficiency by 30%.
Cleaning requirements Reference(residues):
|
1. Total weight less than or equal to 4.5mg
|
|
2. Metal diameter less than or equal to 600um
|
|
3. Non-metallic diameter less than or equal to 1800um
|
|
4. Fiber length is less than or equal to 4000um
|
|
5. After cleaning, there should be no watermark on the surface (with pure water machine), and it should be completely dry (blind hole)
|
Reference of process flow:(workpiece flow direction → left in and right out)
Manual feeding → ultrasonic cleaning → fixed-point spraying → air cutting → fixed-point spraying → mobile spraying → mobile air cutting → fixed-point air cutting → vacuum drying → cooling section → automatic unloading (truss manipulator) → full inspection and packaging
Dehumidification system: In order to prevent the fog from overflowing and affecting the working environment during cleaning, the fog discharge device should be set in the cleaning room to remove the fog inside the cleaning room before opening the door of the cleaning room.
Storage tank and filtration system: it is composed of water tank body, filtration system, temperature control system, liquid level controller, etc.
The storage tank is divided into cleaning tank and rinsing tank, which are connected to the filtration system respectively, so as to filter out some pollutants when the cleaning water is returned.
For a complete technical solution Of Spray Cleaning Line, please contact me. We will customize the design based on your product technical requirements and factory layout.
Our typical customers:
About Us:
Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
