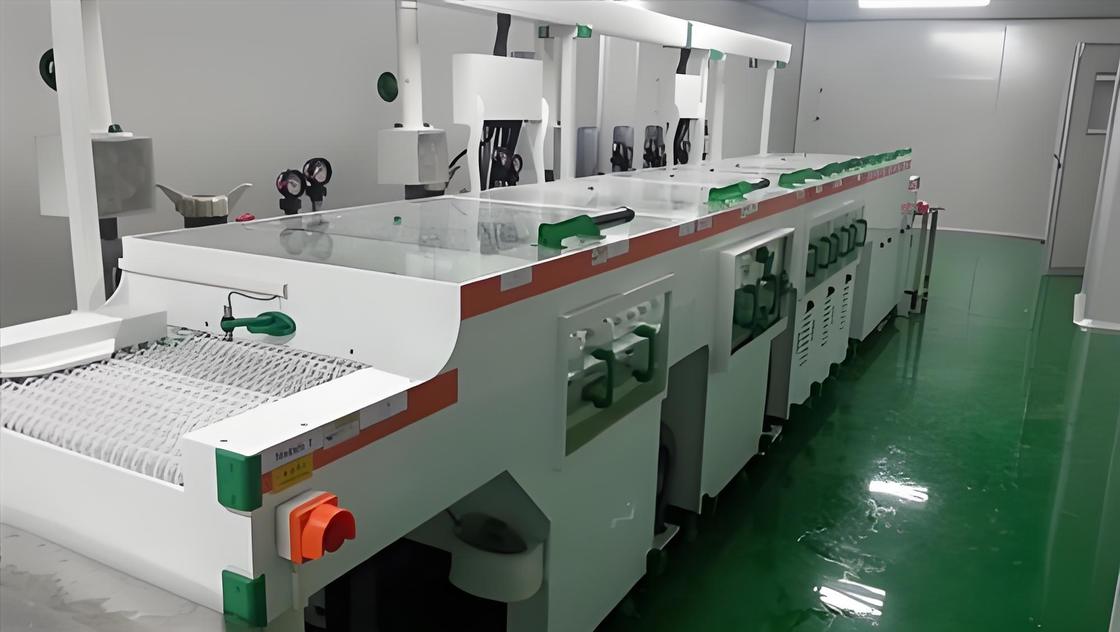

Pure Water Industrial Glass Washing Machine Customizable With Roller Brush

Brand Name:	Hongshun
Model Number:	HS-9060MAF
MOQ:	1 set
Price:	$20,000 to $40,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CCC/CE

Applications:

Tempered Glass

Processing Capacity:

250-350 Sheets/hour

Max Glass Size:

900×600mm

Power Supply:

380±10%/50HZ

PLC:

Mitsubishi Of Japan

Touch Screen:

Taiwan's "HITECH"

Pneumatic Controller:

Japan “SMC”

Supply Ability:

5 sets / month

Highlight:

Pure Water Industrial Glass Washing Machine

Roller Brush Industrial Glass Washing Machine

Customizable Horizontal Glass Cleaning Equipment

Product Description

Pure Water Industrial Glass Washing Machine Customizable With Roller Brush

Roller Brush & Pure Water Automatic Glass Cleaning Equipment

This specialized glass cleaning equipment is engineered specifically for tempered glass factories, ensuring impeccable surface quality critical for post-tempering processing. The dual-action system combines soft yet durable roller brushes to gently scrub away stubborn contaminants, paired with high-purity water rinsing that eliminates mineral residues—essential for maintaining tempered glass's structural integrity and optical clarity.

Featuring full automation with smooth conveying mechanisms, this equipment handles tempered glass sheets of various sizes without manual intervention, reducing breakage risks and boosting production consistency. Designed to integrate seamlessly into tempered glass manufacturing lines, it effectively prepares surfaces for subsequent processing steps like laminating or coating.

This reliable, efficient equipment meets industrial demands and is essential for factories aiming to elevate tempered glass quality while streamlining production workflows.

Key Features

Dual-action cleaning system with roller brushes and pure water rinsing
Fully automated operation with smooth conveying mechanisms
Handles various tempered glass sheet sizes
Reduces breakage risks and improves production consistency
Seamless integration into existing manufacturing lines
Prepares surfaces for laminating, coating, and other processes

Technical Specifications & Materials

Order No.	Main Unit	Brand/Material	Explanation
1	Conveying shaft spacing	100㎜	Rolling brush section 110㎜
2	Rack material	SUS304 50x50x2㎜ square tube
3	Main cleaning tank	"South Asia" transparent PVC board	T=10mm
4	Water box	Taiwan "South Asia" transparent/ivory PVC board	T=10mm
5	Door plank	Taiwanese "South Asia" ivory PVC board	T=6mm
6	Upper cover plate 1	Taiwan "South Asia" transparent PVC board	T=6mm T=1.5mm
7	Anti-leak liquid collection tray	Taiwanese "South Asia" ivory PVC board	T=8mm
8	Feeding roller 1	SUS304 shaft core
9	Pressing roller 2	SUS304 shaft core coated with rubber	Φ 32mm (brush section)
10	Feeding roller surface	White UPE roller + white fluorine rubber O ring	The two ends are supported by the guide wheel, and the middle is a freewheel of fluororubber
11	Final drive shaft	Imported bearing steel	φ20mm
12	Pipe system	"Anchor plate" PVC Sprinkler pipe: 3/4"PVC	Total inlet pipe: 1" PVC Total drain pipe: 2"PVC
13	Touch screen	Taiwan's "HITECH"	10.4 inches
14	PLC	Mitsubishi of Japan
15	Contactor/circuit breaker	"Spanx."
16	Frequency transformer	Japan's Panasonic
17	Thermostat	Japan "OMRON"
18	Inductor	Japan "OMRON"
19	Pneumatic controller	Japan "SMC"
20	Water pump	South China
21	High pressure positive blower	China's "Sen Sen"
22	Drive motor	Taiwan "Tai Li"
23	Roll brush motor	Taiwan "Tai Li"

For a Complete Technical Solution

Contact us to discuss your specific requirements. We will customize the design based on your product technical specifications and factory layout to provide the optimal glass cleaning solution for your tempered glass manufacturing needs.
