Name: Chromium Acid Aluminium Anodizing Machine Anodizing Oxidation For Military Industry
Brand: Dongguan Hongshun Automation Equipment Co., Ltd.
SKU: HS-5600-OP
Price: 425.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Applications: Military Industry

Relative Humidity: Less Than Or Equal To 90%

Water Pressure: 0.3Mpa

Main Power Supply: 380±10%/50HZ

Electronic Control System: Omron PLC

Oxide Layer: 5–25μm

Highlight:

Chromium Acid aluminium anodizing machine

Anodizing aluminium anodizing machine

Military Industry aluminum anodizing equipment

Basic Infomation

Place of Origin: Dongguan

Brand Name: Hongshun

Certification: CCC/CE

Model Number: HS-5600-OP

Payment & Shipping Terms

Packaging Details: film

Delivery Time: 75 days

Payment Terms: L/C,T/T

Supply Ability: 5 sets/month

Gallery

Chromium Acid Aluminium Anodizing Machine Anodizing Oxidation For Military Industry

Product Description

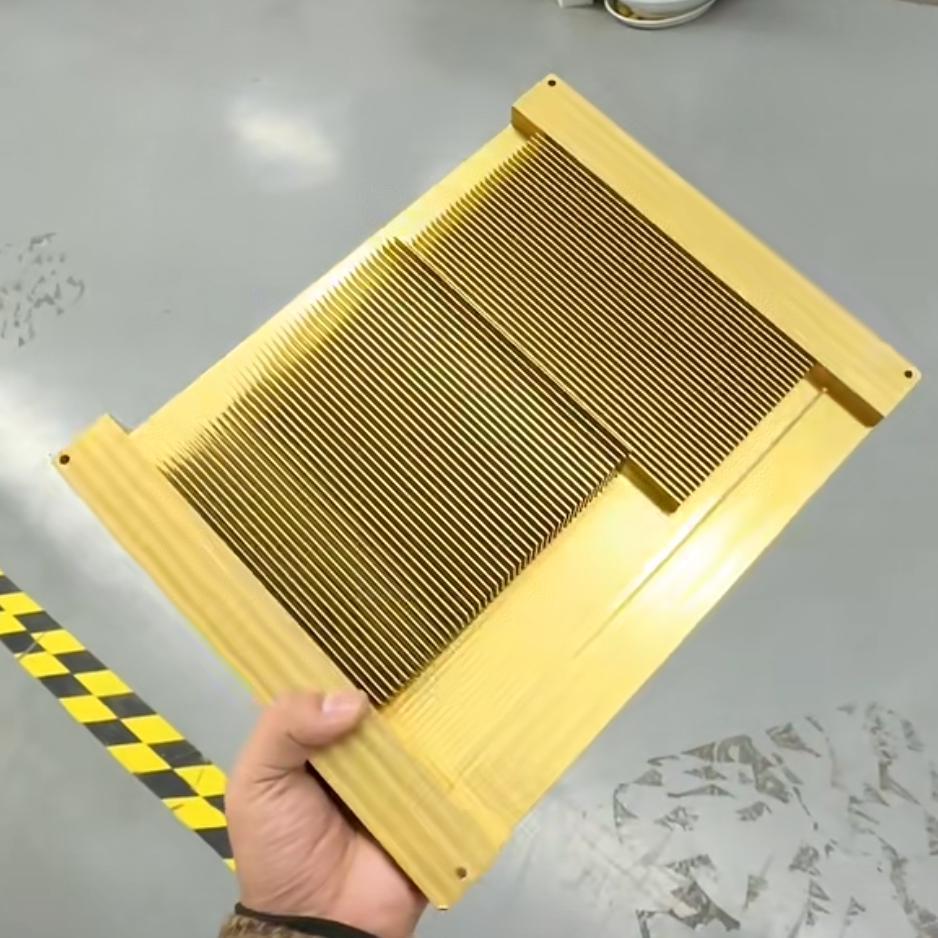

Chromium Acid Anodizing Oxidation Production Line For Military Industry, The Yellow Conductive Oxidation Process

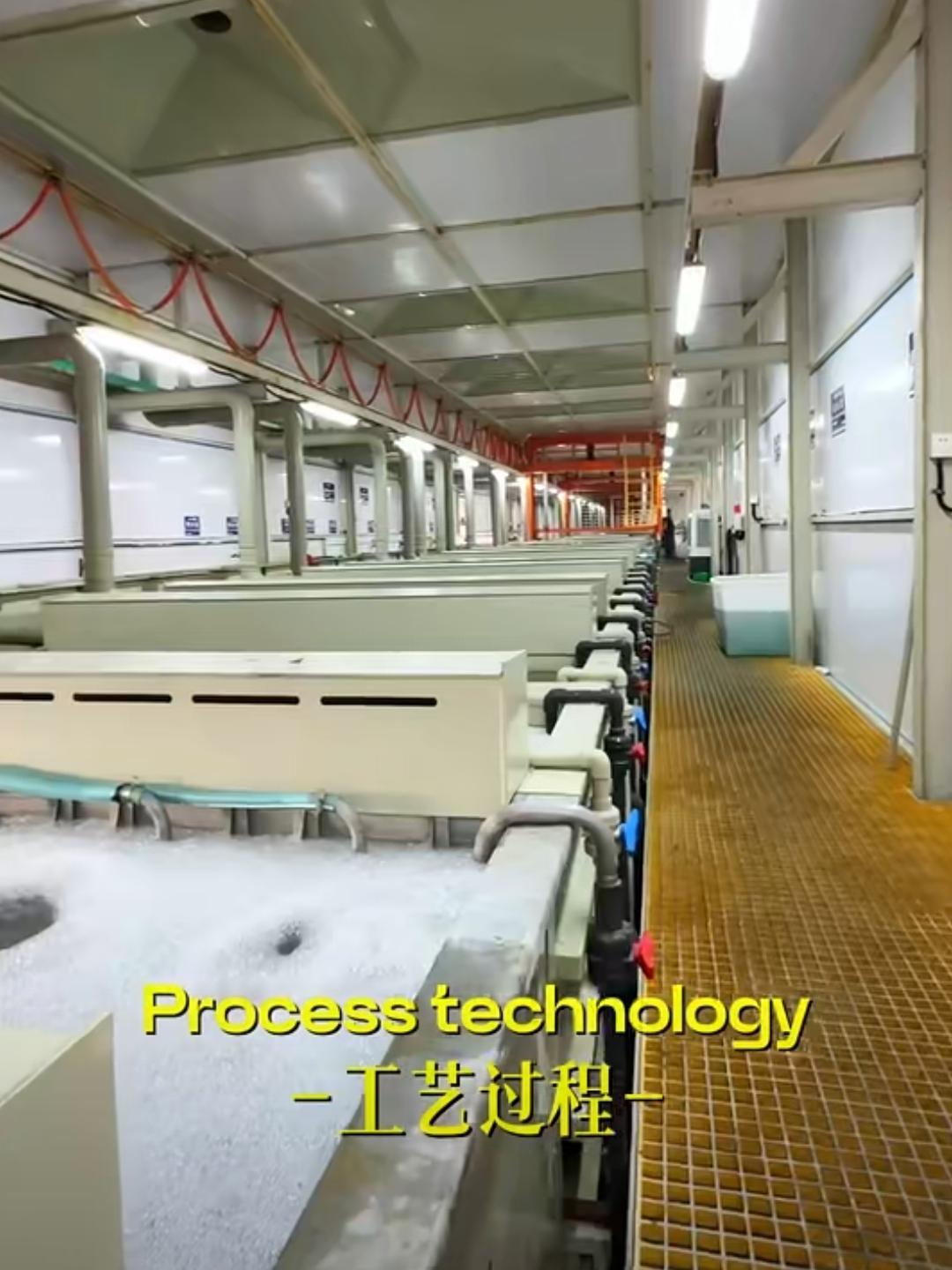

Anodizing Oxidation Production Line Overview:

The Chromium Acid Anodizing Oxidation Production Line, tailored for the military industry with a specialized yellow conductive oxidation process, delivers superior surface treatment for military-grade components. This high-performance line creates a durable yellow oxide film through precise chromium acid anodizing, ensuring exceptional corrosion resistance, wear protection, and reliable electrical conductivity—critical for military equipment operating in harsh environments.

Engineered to meet strict military standards, it guarantees consistent film adhesion, thickness, and performance across complex part geometries. The automated workflow includes rigorous pre-treatment and controlled oxidation stages, minimizing variability and ensuring compliance with defense specifications.

Ideal for military aerospace, weaponry, and electronic components, the yellow conductive finish enhances both functionality and identification. Combining military-grade durability with conductive performance, this production line is a trusted solution for defense manufacturers prioritizing reliability, compliance, and long-term operational excellence.

Material list for Anodizing Oxidation Production Line:

device name	Ingredients specifications	place of production	brand	remarks
gangway	The main structure is made of A3 square tube and angle timber, and the structure is in the form of a landing.	domestic
gangway	Pedal 15mm fiberglass shed grid strong grid plate	Guangzhou	Guangzhou glass steel plant
filtering machine	Type: Precision single barrel filter magnetic suction filter machine material PP and SS cylinder	Dongguan	national treasure	Taiwan
pipe system	All pipe fittings are configured with standard products All the water stop valves are double actuated PVC ball valves	Guangzhou	South Asia Taiwan	South Asia Plastics (Guangzhou) Co., LTD
commutator	Type: three-phase oil-cooled SCR control rectifier type Output voltage: 0-25V (volt) Output current: 3000A	Guangzhou	Jewel	Guangzhou
Exhaust air pipe	Main air pipe: 6MM PP plate is used, and the pipe diameter is Φ500mm Suction hood: PP board is used, 8mm thick washing tower plate is 10mm thick	Hebei	Lida
Stainless steel tank	Material: SS304/3mm thick bending chamfer welding	Foshan	Tricyclic
Plastic tank	Material: PP15mm welding manufacturing	Taiwan	Lida	enter port
Whole machine rack	All the racks are made of A3 square tube, and the leading rail is made of stainless steel flat steel	Foshan	Respect to Yuan Hengyu
Portal crane	The body is made of SS steel plate, bent and welded	Foshan	Tricyclic
Portal crane	Italian worm gear electromagnetic brake motor is adopted	Italy	Simic	enter port
Electronic control system	The intermediate relay of Omron PLC series is selected in Japan	Shanghai	OMRON	Japan
	AC contactor	Shanghai	Schneider	Germany
	frequency transformer	Shanghai	Mitsubishi	Japan
	Kunlun Tongtai touch screen	Beijing	Kunlun is in a state of flux	China
thermostat	Digital display temperature control and sensor	Shanghai	OMRON	Japan
cooling-water machine	The compressor is American Taikang compressor or French Myoyle	Guangdong	Dian Electric

For a complete technical solution of Anodizing Oxidation Production Line, please contact me. We will customize the design based on your product technical requirements and factory layout.
