Tunnel Type Cleaning Machine For Large Quantities Medium-sized Workpieces

Brand Name:	Hongshun
Model Number:	HS-4500TC
MOQ:	1 set
Price:	$30,000 to $70,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CCC/CE

Applications:

Medium-sized Workpieces

Conveyor Speed:

1-5m/min

Spray Pressur:

120bar

Power Supply:

380±10%/50HZ

Dryer Temperature:

Ultrasonic Frequency:

28KHZ

Supply Ability:

5 sets/month

Highlight:

tunnel type spray cleaning machine

medium-sized workpiece cleaning machine

large quantity spray cleaning machine

Product Description

Tunnel Type Cleaning Machine For Large Quantities Medium-sized Workpieces

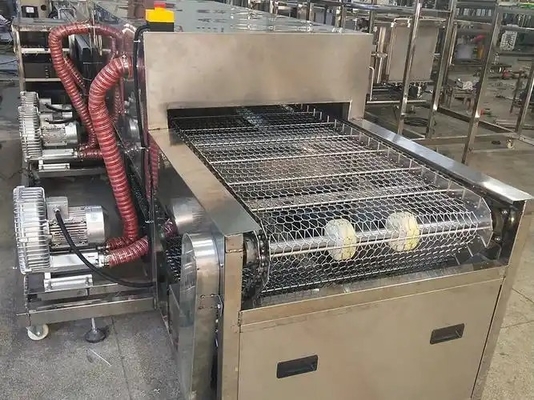

The Tunnel Type Cleaning Machine with Net Belt Conveyor is engineered for high-efficiency cleaning of large quantities of medium-sized workpieces, ideal for automotive, hardware, and machinery manufacturing sectors. Its integrated net belt conveyor enables continuous, automated workpiece transport through the tunnel, eliminating manual handling and boosting throughput—perfect for mass-production scenarios.

The machine delivers thorough cleaning by removing oils, greases, metal shavings, and contaminants from medium-sized parts (e.g., gears, brackets, housings) via optimized spray or immersion systems (configurable to needs). The net belt design ensures stable workpiece positioning while allowing full exposure to cleaning agents, guaranteeing uniform, residue-free results across batches.

With adjustable conveyor speed and cleaning parameters, it adapts to diverse workpiece materials and dirt levels. By streamlining large-volume cleaning into a seamless, automated process, this machine reduces labor costs and improves consistency, making it a reliable solution for manufacturers scaling medium-sized workpiece production.

Main Materials Specifications

Component	Specifications
Equipment Frame	Imported stainless steel square tube and profile
Equipment Tank & Chamber	Imported SUS304L plate with 2.5mm thickness
Door Panel	SUS304 stainless steel plate with 5mm tempered glass window
PLC System	Mitsubishi series
Frequency Converter & Driver	Delta brand
Touch Screen	Taiwan Weilun brand / MCGS (10")
Spray Pump	Southern stainless steel pump series or equivalent
SUS Nozzle	Taiwan Changyuan or similar brand
Drive Motor	Taiwan Yongkun or equivalent brand
Overload Protection Clutch	Taiwan Dongyuan or equivalent brand
Thermostat	Omron or similar Japanese brand
Electronic Control Devices	French Schneider or equivalent brands
Air Leakage Switch	Schneider or similar French brand
Cylinder	SMC brand or equivalent quality brand

Process Flow

Manual feeding → Ultrasonic cleaning → Fixed-point spraying → Air cutting → Fixed-point spraying → Mobile spraying → Mobile air cutting → Fixed-point air cutting → Vacuum drying → Cooling section → Automatic unloading (truss manipulator) → Full inspection and packaging

For a complete technical solution of Tunnel Type Cleaning Machine, please contact us. We will customize the design based on your product technical requirements and factory layout.
