Tunnel Type Cleaning Equipment Includ Spray Ultrasonic Pure Water Rinse Wind Cut Dry

1 set
MOQ
$30,000 to $70,000
Price
Tunnel Type Cleaning Equipment Includ Spray Ultrasonic Pure Water Rinse Wind Cut Dry
Features Gallery Product Description Chat Now
Features
Specifications
Applications: All-around Industrial Part Cleaning
Conveyor Speed: 1-4m/min
Spray Pressur: 5-8bar
Power Supply: 380±10%/50HZ
Dryer Temperature: 100℃
Ultrasonic Frequency: 30KHZ
Basic Infomation
Place of Origin: Guangdong
Brand Name: Hongshun
Certification: CCC/CE
Model Number: HS-4200TC
Payment & Shipping Terms
Packaging Details: film
Delivery Time: 50 days
Payment Terms: L/C,T/T
Supply Ability: 5 sets/month
Product Description

Tunnel Type Cleaning Equipment With Mesh Belt Conveyor,includ Spray, Ultrasonic, Pure Water Rinse, Wind Cut, Dry


Tunnel Type Cleaning Equipment Overview:

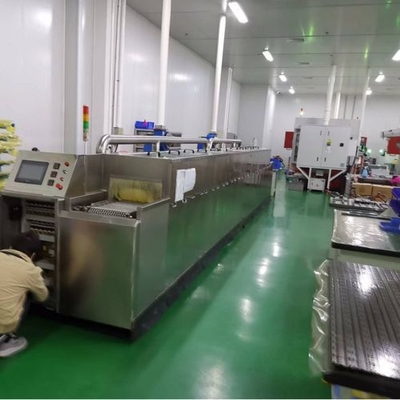

This tunnel-type cleaning equipment, paired with a stainless steel mesh belt conveyor, integrates 5 core functions—spray, ultrasonic, pure water rinse, wind cut, and dry—for all-around industrial part cleaning. The mesh belt (304 stainless steel, adjustable speed 0.5-4m/min) steadily transports parts (hardware, auto components, electronics) through each stage without fixtures.

First, high-pressure spray (5-8bar) blasts loose contaminants; then 28-40kHz ultrasonic waves dissolve stubborn oils/grease. Next, 18.2MΩ·cm pure water rinse eliminates residues, followed by high-velocity wind cut (0.6-0.9MPa) removes surface moisture, and final hot air dry (60-100℃) ensures 100% dryness.

Processing 500-700 parts/hour, it fits high-volume lines. A auto parts client noted, “One-stop cleaning cut our process time by 40%.” PLC-controlled for precision, it’s ideal for factories needing efficient, consistent cleaning without multi-machine hassle.


Description of main materials used in the Tunnel Type Cleaning Equipment:



main materials

Ø The equipment frame is made of imported stainless steel square tube and profile.

Ø The equipment tank and chamber are made of imported SUS304L plate with a thickness of 2.5mm respectively. The equipment door panel is made of SUS304 stainless steel plate, and the front side front panel is transparent tempered glass window with T=5mm.

Ø PLC uses "Mitsubishi" series.

Ø Frequency converter and driver are delta brand; touch screen (10") Taiwan Weilun brand /MCGS

Ø The spray pump is "Southern" stainless steel pump series or the same brand.

Ø SUS nozzle is made of Taiwan "Changyuan" or similar brand.

Ø The drive motor is Taiwan "Yongkun" or equivalent brand

Ø Overload protection clutch adopts Taiwan "Dongyuan" or equivalent brand;

Ø The thermostat adopts Omron or similar brand from Japan;

Ø The electronic control devices are all using French "Schneider" or equivalent brands;

Ø The air leakage switch is made of Schneider or similar brand in France

Ø The cylinder is SMC brand or equivalent quality brand


Reference of process flow:(workpiece flow direction → left in and right out)

Manual feeding → ultrasonic cleaning → fixed-point spraying → air cutting → fixed-point spraying → mobile spraying → mobile air cutting → cooling section → automatic unloading (truss manipulator) → full inspection and packaging


 For a complete technical solution Of  Tunnel Type Cleaning Equipment, please contact me. We will customize the design based on your product technical requirements and factory layout.


Our typical customers:

   Tunnel Type Cleaning Equipment Includ Spray Ultrasonic Pure Water Rinse Wind Cut Dry 0    Tunnel Type Cleaning Equipment Includ Spray Ultrasonic Pure Water Rinse Wind Cut Dry 1




About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
