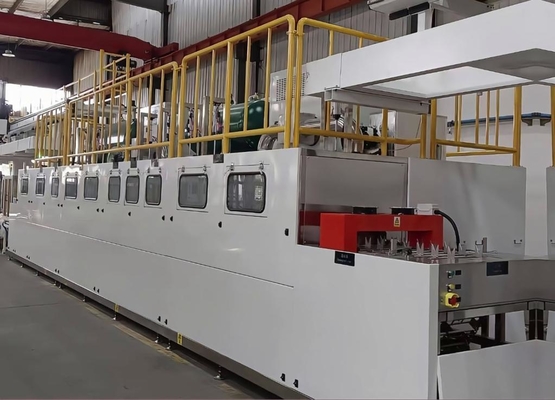

Tunnel Type Cleaning Drying Production Line Turnkey Solution For Large Quantities

1 set
MOQ
$30,000 to $70,000
Price
Tunnel Type Cleaning Drying Production Line Turnkey Solution For Large Quantities
Features Gallery Product Description Chat Now
Features
Specifications
Applications: Large-quantity Industrial Part Processing
Mesh Belt Conveyor Speed: 1-4m/min
Spray Pressur: 5-8bar
Power Supply: 380±10%/50HZ
Dryer Temperature: 70℃
Ultrasonic Frequency: 28KHZ
Basic Infomation
Place of Origin: Guangdong
Brand Name: Hongshun
Certification: CCC/CE
Model Number: HS-5200TC
Payment & Shipping Terms
Packaging Details: film
Delivery Time: 50 days
Payment Terms: L/C,T/T
Supply Ability: 5 sets/month
Product Description

Tunnel Type Cleaning Drying Production Line Turnkey Solution For Large Quantities


Tunnel Type Cleaning Drying Production Line Overview:

This tunnel-type cleaning and drying production line offers a full turnkey solution, tailored for large-quantity industrial part processing—ideal for auto components, hardware, and electronics. It integrates seamless cleaning (high-pressure spray + ultrasonic wash + pure water rinse) and drying (wind cut + hot air dry) in one continuous system, eliminating the need for separate equipment or manual transfer.

From design, installation to staff training, we handle every step to match your production scale (800-1200 parts/hour). The stainless steel mesh belt conveyor (adjustable speed 1-3m/min) ensures stable part transport, while PLC control maintains consistent cleaning/drying quality.

A machinery factory client said, “This turnkey line cut our setup time by 2 months and boosted output by 50%.” Durable, corrosion-resistant components support 24/7 operation, making it a hassle-free, high-efficiency solution for large-batch production needs.


Description of main materials used in the Tunnel Type Cleaning Drying Production Line:



main materials

Ø The equipment frame is made of imported stainless steel square tube and profile.

Ø The equipment tank and chamber are made of imported SUS304L plate with a thickness of 2.5mm respectively. The equipment door panel is made of SUS304 stainless steel plate, and the front side front panel is transparent tempered glass window with T=5mm.

Ø PLC uses "Mitsubishi" series.

Ø Frequency converter and driver are delta brand; touch screen (10") Taiwan Weilun brand /MCGS

Ø The spray pump is "Southern" stainless steel pump series or the same brand.

Ø SUS nozzle is made of Taiwan "Changyuan" or similar brand.

Ø The drive motor is Taiwan "Yongkun" or equivalent brand

Ø Overload protection clutch adopts Taiwan "Dongyuan" or equivalent brand;

Ø The thermostat adopts Omron or similar brand from Japan;

Ø The electronic control devices are all using French "Schneider" or equivalent brands;

Ø The air leakage switch is made of Schneider or similar brand in France

Ø The cylinder is SMC brand or equivalent quality brand


Reference of process flow:(workpiece flow direction → left in and right out)

Manual feeding → ultrasonic cleaning → water spraying → fixed-point spraying → pure water spraying → mobile wind cutting → Hot air drying → automatic unloading (truss manipulator) → full inspection and packaging


 For a complete technical solution Of  Tunnel Type Cleaning Drying Production Line, please contact me. We will customize the design based on your product technical requirements and factory layout.


Our typical customers:

   Tunnel Type Cleaning Drying Production Line Turnkey Solution For Large Quantities 0    Tunnel Type Cleaning Drying Production Line Turnkey Solution For Large Quantities 1




About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
