Vacuum Degassing Hydrocarbon Cleaner for Complex Blind-Hole Components

Brand Name:	Hongshun
Model Number:	HS-6384VHC
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CCC/CE

Applications:

Complex Blind-Hole Components

Floor Load Capacityr:

≥400kg/m²

Work Rhythm:

5-7min / Basket

Power Supply:

380±10%/50HZ

Ultrasonic Frequency:

30-50 KHz

Drying Time:

5-7 Minutes

Supply Ability:

5 sets / month

Highlight:

vacuum degassing hydrocarbon cleaner

hydrocarbon cleaner for blind-hole components

vacuum hydrocarbon cleaning line

Product Description

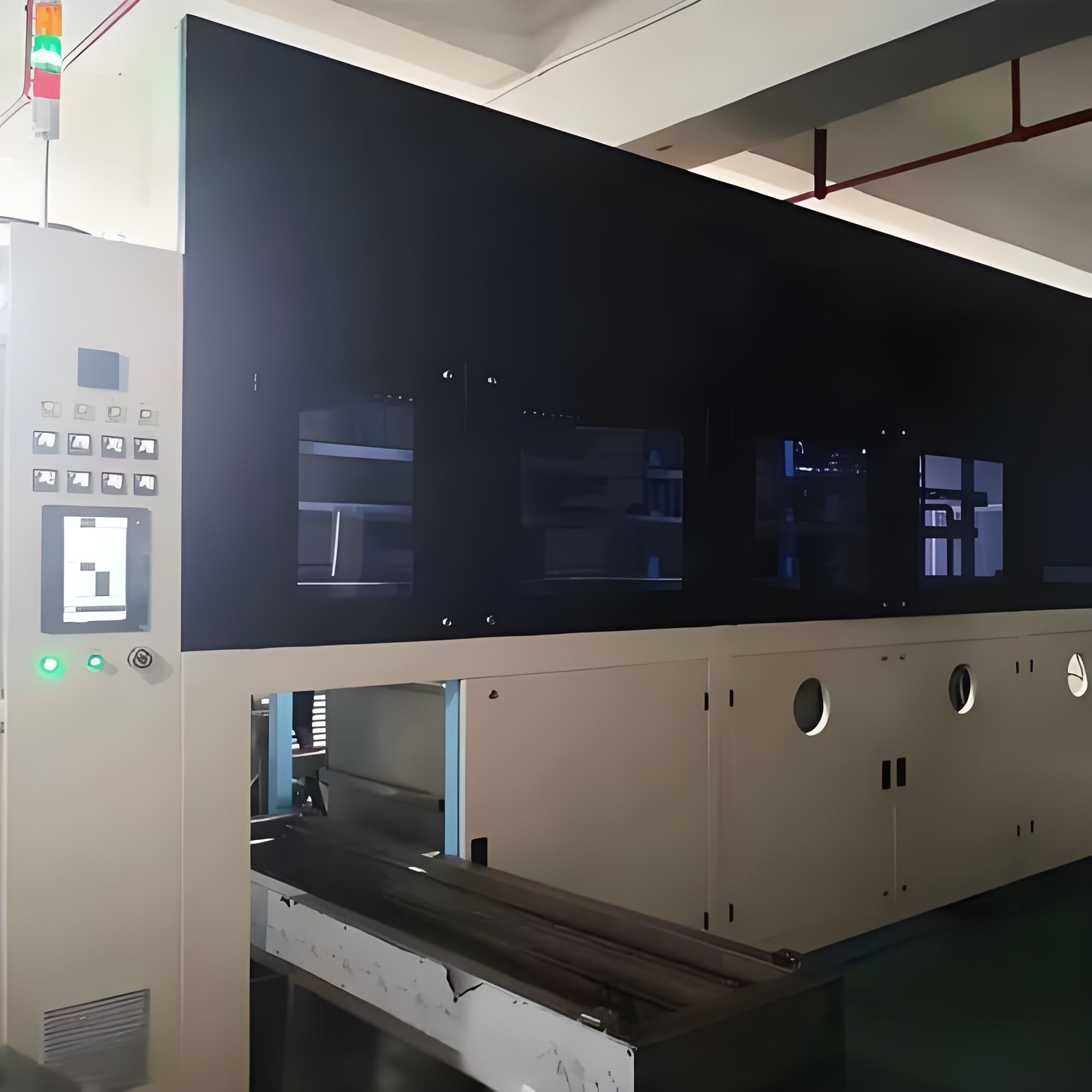

Vacuum Degassing Hydrocarbon Cleaner for Complex Blind-Hole Components

This industrial-grade vacuum degassing hydrocarbon cleaner is specifically engineered for thorough cleaning of complex components with blind holes, ensuring complete removal of contaminants through advanced vacuum degassing technology.

Energy Consumption & Operational Specifications

The HS-6384VHC 6-tank automatic vacuum hydrocarbon cleaner operates with industrial efficiency, featuring transparent energy and consumable requirements. Average power consumption is 65-70KW/h during normal operation, with total installed power of 140KW (3-phase 380V). Compressed air demand is 400 NL/min at 0.4-0.6MPa for driving cylinders and pneumatic valves.

Consumables & Maintenance Requirements

Item	Consumption Rate	Maintenance Schedule
Hydrocarbon Solvent	As required	Based on cleaning volume
Filter Cartridges	≈15 pieces/month	10μ/5μ filters replaced as needed
Heat Transfer Oil	140L	Replace every 2500 working hours
Vacuum Pump Lubricating Oil	0.2L	Check and add every 200 working hours

Installation & Site Requirements

Installation requires indoor space with temperature range of 5-38℃ and floor load capacity ≥400kg/m². The machine requires 1-meter maintenance clearance around it for accessibility. Utility connections include 3-phase 380V main power supply, φ12mm compressed air pipe, and φ180mm exhaust pipe for the built-in 400W multi-blade exhaust fan (requires on-site installation to outdoor). Integrated 20HP air-cooled industrial chiller with φ51mm pipe connection controls solvent temperature for safe operation.

For a complete technical solution, please contact us. We will customize the design based on your product technical requirements and factory layout.
