Semi-Automatic Multi-Tank Vacuum Hydrocarbon Cleaning Machine with Hot Air Drying

Brand Name:	Hongshun
Model Number:	HS-6384MF
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CCC/CE

Applications:

Precision Hardware

Distillation Recovery Unit:

300L

Work Rhythm:

5-7min / Basket

Power Supply:

380±10%/50HZ

Ultrasonic Frequency:

30-50 KHz

Drying Time:

5-7 Minutes

Supply Ability:

5 sets / month

Highlight:

semi-automatic hydrocarbon cleaning machine

multi-tank vacuum cleaning machine

hydrocarbon cleaning machine with hot air drying

Product Description

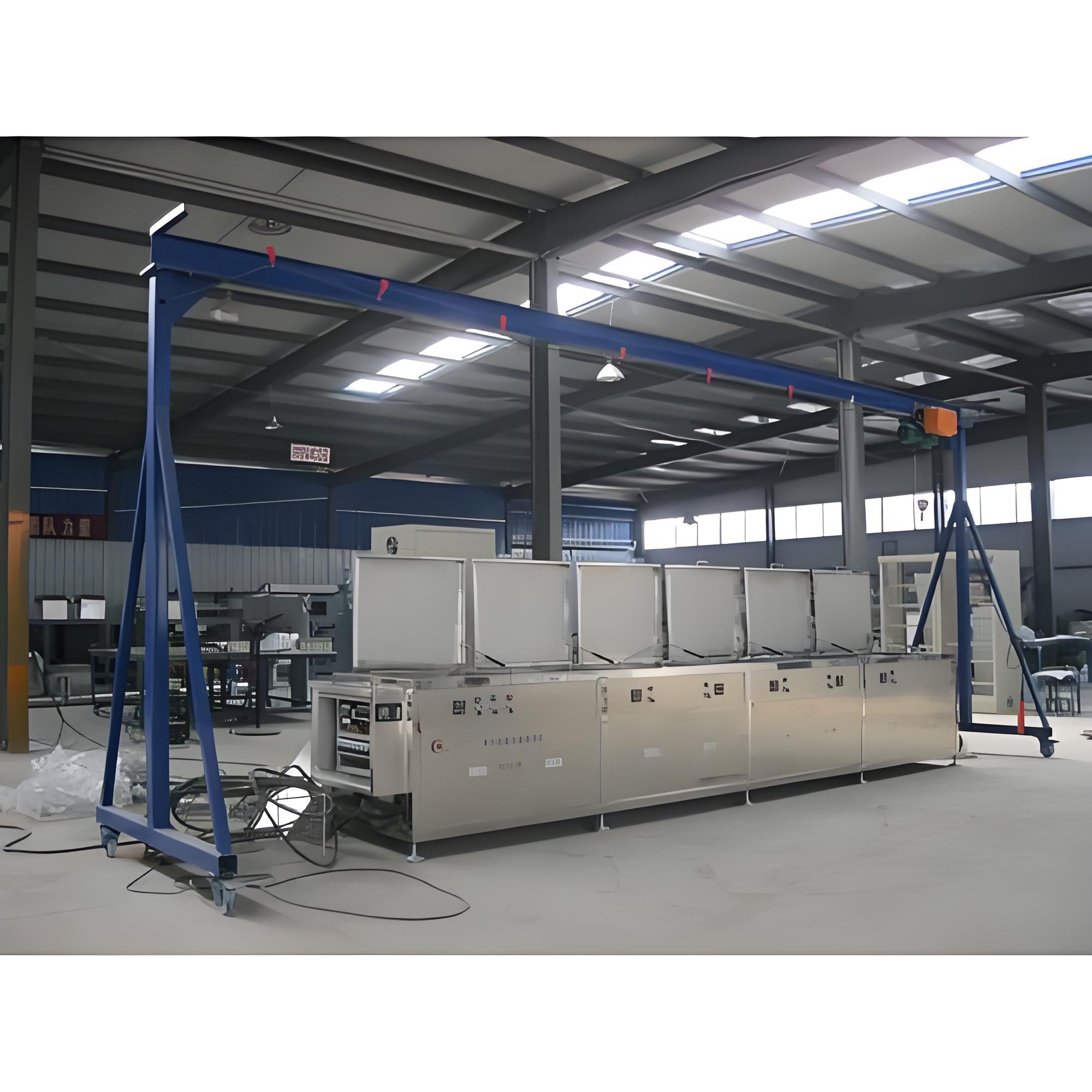

Semi-Automatic Multi-Tank Vacuum Hydrocarbon Cleaning Machine with Hot Air Drying

Our Semi-Automatic Multi-Tank Vacuum Hydrocarbon Cleaning Machine delivers precision cleaning for small-to-medium parts including precision hardware, electronic components, and automotive bearings, featuring integrated hot air drying for complete processing in a single system.

Multi-Stage Cleaning Process

The multi-tank design enables sequential cleaning stages: pre-washing removes heavy grime, vacuum-assisted hydrocarbon cleaning provides deep penetration into blind holes, and final rinsing eliminates all residues. The integrated hot air drying system (50-80℃ adjustable) ensures fast, watermark-free drying, reducing post-cleaning wait time by 30%.

Operational Efficiency

Semi-automatic operation balances efficiency with flexibility - automated tank transfer reduces labor requirements while manual part loading accommodates diverse component shapes. Compliant with industrial safety standards including anti-leakage and solvent recovery systems.

Tank Design & Durability Features

Degassing Tanks (1# & 2#)

Constructed from SUS304 2mm plates for rough cleaning, featuring three-sided ultrasonic transducers (bottom and sides) with hard chrome plating for corrosion resistance. Includes 400W variable-frequency oscillation motor for enhanced solvent contact.

Vacuum Precision Tanks (3# & 4#)

Built with thicker SUS304 10mm plates to withstand high vacuum pressure, featuring SMC cylinder-operated 20mm aluminum lids for airtight sealing. Dual-frequency ultrasonic system (28KHz/40KHz) provides versatility for both heavy dirt and delicate parts. Advanced filtration: 10μ for tank 3# and 1μ for tank 4#.

Vacuum Drying Tanks (5# & 6#)

SUS304 10mm plate construction with hydrocarbon vapor (90-130℃) steam bathing and high vacuum system (Cuiman RT0.30S roots pumps + CNST VG155 liquid-ring pumps) for rapid solvent evaporation. Includes 201 stainless steel liquid collection pan (1.5mm thick) for spill protection.

Operating Consumption Reference

Order Number	Name	Wastage	Remarks
1	Hydrocarbons	Add as required	Depends on cleaning volume
2	Filter cotton core	About 12 per month	Replace as required
3	Heat medium oil	100L/2500 hours	Replace every 2500 work hours
4	Vacuum pump lubricating oil	0.2L/200 hours	Check and add every 200 work hours
5	Power consumption	About 30kw/hour	Average value
6	Compressed air	400 NL/min	Drive use (cylinder, pneumatic valve)

For a complete technical solution for Semi-Automatic Multi-Tank Vacuum Hydrocarbon Cleaning Machine, please contact us. We will customize the design based on your product technical requirements and factory layout.
