Customizable Vacuum Hydrocarbon Cleaning Equipment for Automotive Spare Parts

Brand Name:	Hongshun
Model Number:	HS-6684MFG
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CCC/CE

Applications:

Automotive Spare Parts

Total Ultrasonic Power:

1.8KWx3=5.4kW

Work Rhythm:

5-7min / Basket

Power Supply:

380±10%/50HZ

Ultrasonic Frequency:

30-50 KHz

Drying Time:

5-7 Minutes

Supply Ability:

5 sets / month

Highlight:

customizable vacuum hydrocarbon cleaner

automotive parts cleaning equipment

vacuum hydrocarbon cleaning line

Product Description

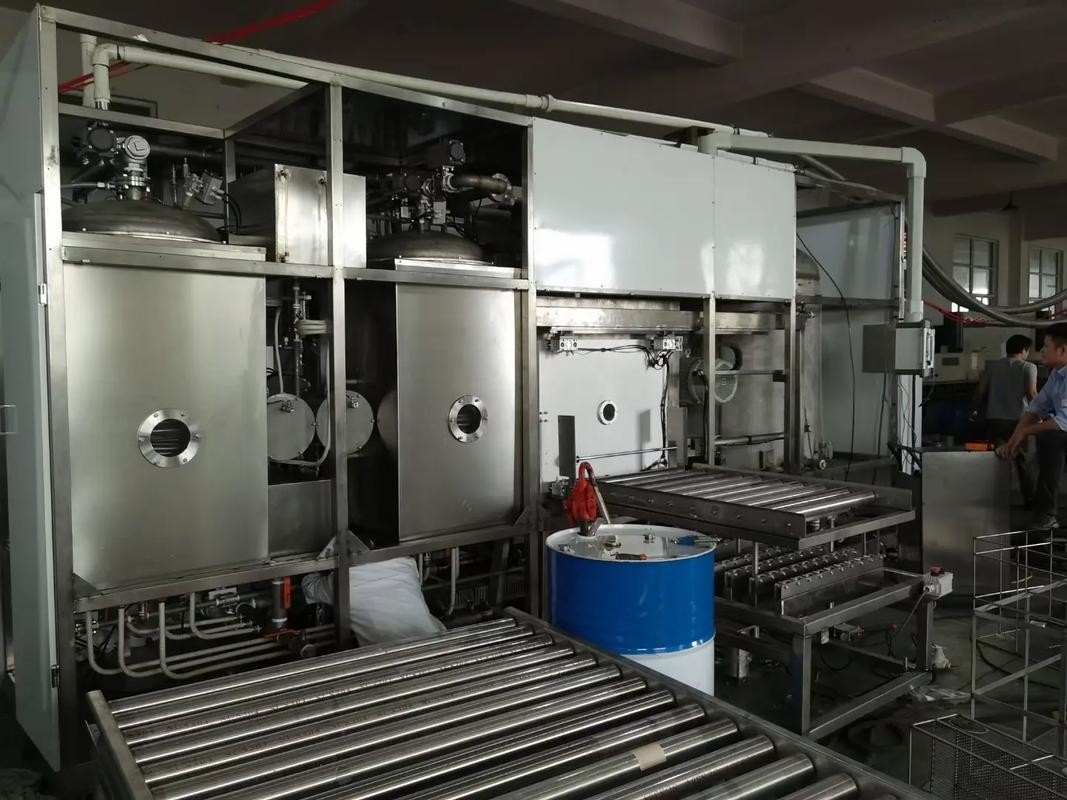

Customizable Vacuum Hydrocarbon Cleaning Equipment for Automotive Spare Parts

Our Customizable Vacuum Hydrocarbon Cleaning Equipment is engineered specifically for automotive spare parts cleaning applications, delivering thorough, residue-free degreasing essential for optimal automotive performance.

Equipment Overview

This versatile cleaning system is designed to handle diverse automotive components—from small precision parts like bearings and sensors to large assemblies including gearboxes and brake calipers.

Customization Options

Adjustable vacuum chamber sizes (0.5-3m³) to accommodate various part dimensions
Scalable ultrasonic power (30-100kHz) for cleaning delicate or heavily soiled components
Optional heating modules (40-70℃) to effectively tackle tough grease and contaminants
Customizable cleaning cycles optimized for light contaminants or heavy oil buildup

The system incorporates advanced oil separation and solvent regeneration technology, recovering up to 90% of solvent to significantly reduce operating costs. The sealed vacuum system ensures safe, low-emission operation, making it ideal for automotive repair shops and spare parts manufacturers requiring strict cleanliness standards.

Automation & Mechanical Arm System

The HS-6684MFG model features comprehensive automation that minimizes manual intervention while ensuring consistent cleaning quality throughout the production process.

Key Automation Features

Load-bearing gantry mechanical arm system for automated basket transport between tanks
150kg effective load capacity (including basket weight)
Precision movement powered by 400W Mitsubishi/Panasonic servo motors
Automated drip-draining after each process stage to prevent cross-contamination
Complete workflow automation from loading through cleaning to discharge
250W multi-blade cooling fan for part temperature management before unloading

The programmable logic controller (PLC) coordinates all tank operations including degassing, ultrasonic cleaning, vacuum processing, and drying cycles. Each step is timed (minimum 5 minutes per basket, adjustable per product requirements) to ensure optimal cleaning results.

The intuitive touchscreen interface allows operators to easily set parameters such as ultrasonic power and vacuum timing, with real-time monitoring capabilities for different automotive component types including various zinc-magnesium-aluminum alloys.

Operating Consumption Reference

Order Number	Name	Wastage/Consumption	Remarks
1	Hydrocarbons	Add as required	Depends on cleaning volume
2	Filter Cotton Core	Approximately 12 per month	Replace as required
3	Heat Medium Oil	100L/2500 hours	Replace every 2500 operating hours
4	Vacuum Pump Lubricating Oil	0.2L/200 hours	Check and add every 200 operating hours
5	Power Consumption	Approximately 30kw/hour	Average value
6	Compressed Air	400 NL/min	Drive use (cylinder, pneumatic valve)

For a complete technical solution for Vacuum Hydrocarbon Cleaning Equipment, please contact us. We will customize the design based on your specific product technical requirements and factory layout.
