Name: Multi-Functional Vacuum Hydrocarbon Cleaner: Ultrasonic + Vacuum Drying + Distillation
Brand: Dongguan Hongshun Automation Equipment Co., Ltd.
SKU: HS-6388MFG
Price: 90.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Applications: Precision Parts

Solvent Recovering: 92% For Reuse

Work Rhythm: 5-7min / Basket

Power Supply: 380±10%/50HZ

Ultrasonic Frequency: 30-50 KHz

Drying Time: 5-7 Minutes

Basic Infomation

Place of Origin: Guangdong

Brand Name: Hongshun

Certification: CCC/CE

Model Number: HS-6388MFG

Payment & Shipping Terms

Packaging Details: film

Delivery Time: 55 days

Payment Terms: L/C,T/T

Supply Ability: 5 sets / month

Gallery

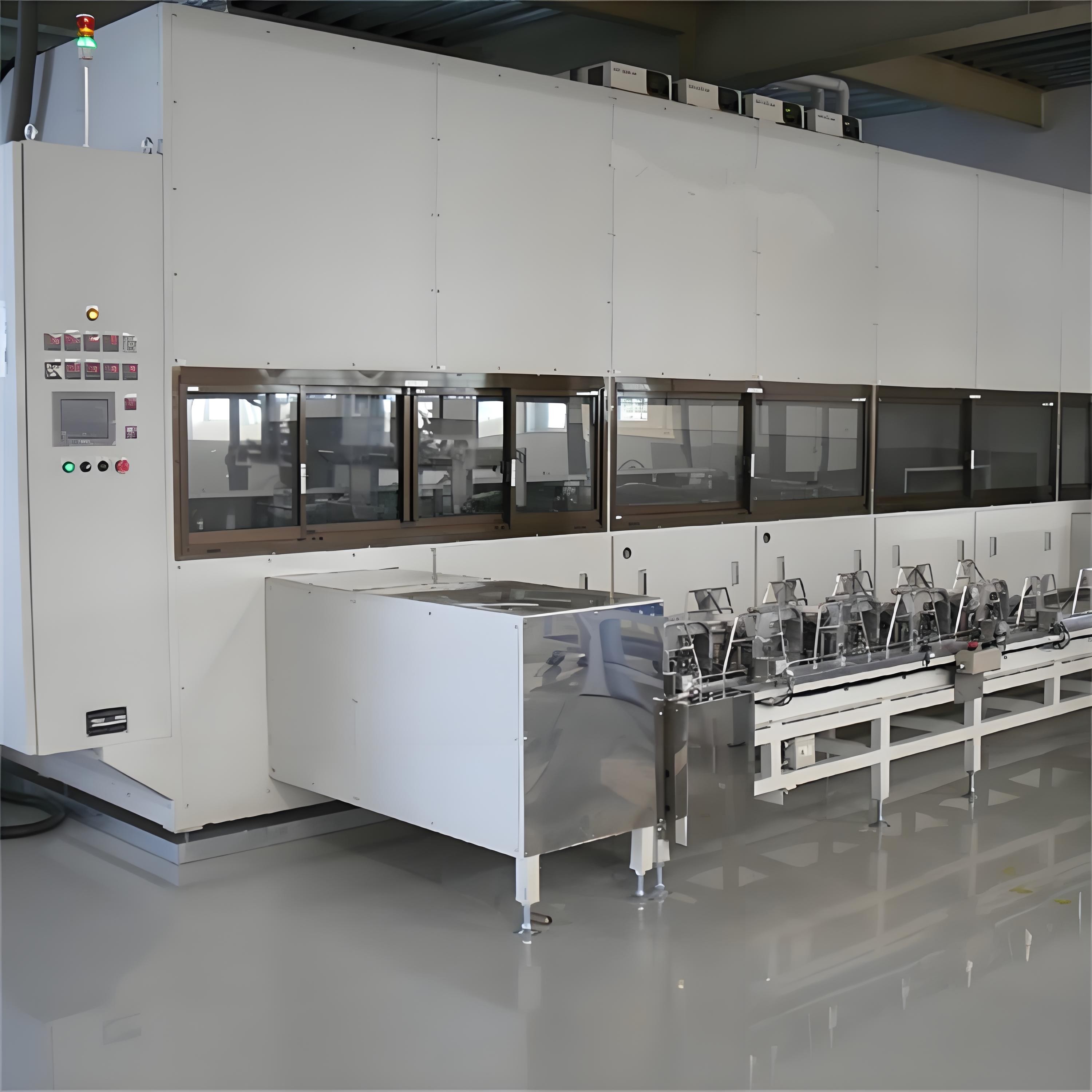

Multi-Functional Vacuum Hydrocarbon Cleaner: Ultrasonic + Vacuum Drying + Distillation

Product Description

Multi-Functional Vacuum Hydrocarbon Cleaner: Ultrasonic + Vacuum Drying + Distillation

Overview Of Vacuum Hydrocarbon Degreasing Machine:

Our Multi-Functional Vacuum Hydrocarbon Cleaner combines three core technologies—ultrasonic cleaning, vacuum drying, and solvent distillation—into one system, delivering all-in-one efficiency for precision parts across electronics, automotive, and medical sectors.

Its ultrasonic function (40-120kHz) generates micro-bubbles to dissolve submicron contaminants (flux, dust, oil) from tiny gaps like circuit board crevices or bearing grooves. The integrated vacuum drying then lowers solvent boiling point, enabling fast, residue-free drying without heat damage. Plus, the built-in distillation module purifies used solvent (recovering 92% for reuse), slashing material costs and waste.

Designed for versatility, it handles diverse parts—from delicate electronic connectors to small automotive gears—with adjustable ultrasonic power and vacuum levels. The intuitive control panel lets you switch between functions or run full cycles automatically. CE/RoHS compliant, it saves workshop space vs. three separate machines. For manufacturers seeking compact, multi-tasking cleaning solutions, this all-in-one system balances performance, sustainability, and cost-efficiency.

Vacuum System Performance: Enhancing Cleaning & Drying Efficiency

The HS-6388MFG’s vacuum system is a critical component, designed to enhance both cleaning effectiveness and drying speed. It uses a combination of liquid-ring pumps and roots pumps, tailored to the needs of different tanks. The 3# and 4# vacuum precision cleaning tanks share a "CNST" VG95/2.2KW liquid-ring pump, which creates a vacuum environment to expel air from part surfaces, blind holes, and gaps. This allows hydrocarbon solvent to fully infiltrate, eliminating cleaning blind spots—a common issue in atmospheric cleaning where air traps prevent solvent contact.

For the 5# and 6# vacuum drying tanks, the system is upgraded to a two-stage configuration: Cuiman RT0.30S roots pumps (0.75KW for 5#, 1.75KW for 6#) paired with "CNST" VG155 liquid-ring pumps (4KW for 5#, 5.5KW for 6#). This setup achieves a higher vacuum degree, triggering the "vacuum boiling effect"—where hydrocarbon solvent on part surfaces boils at a lower temperature (due to reduced pressure) and evaporates rapidly. As a result, drying time is shortened to ≥5 minutes per basket, far faster than the 1-hour+ drying time of atmospheric methods.

The vacuum system also improves safety: by reducing oxygen concentration in the machine, it eliminates the risk of hydrocarbon solvent combustion (even when heated to above its flash point during drying). SMC PSE-series vacuum gauges monitor vacuum levels in real time, with the PLC adjusting pump operation to maintain stable pressure. This precision ensures consistent cleaning and drying results, even for large batches or complex parts.

Consumption of Multi-Functional Vacuum Hydrocarbon Cleaner for reference:

order number	name	wastage	remarks
1	hydrocarbons	Add as required	It depends on the amount of cleaning
2	Filter cotton core	About 12 per month	Replace as required
3	Heat medium oil	100L/2500 hours	Replace every 2500 hours of work
4	Vacuum pump lubricating oil	0.2L/200 hours	Check and add every 200 hours of work
5	power consumption	About 30kw/hour	average value
6	compressed air	400 NL/min	Drive use (cylinder, pneumatic valve)

For a complete technical solution Of Multi-Functional Vacuum Hydrocarbon Cleaner, please contact me. We will customize the design based on your product technical requirements and factory layout.
