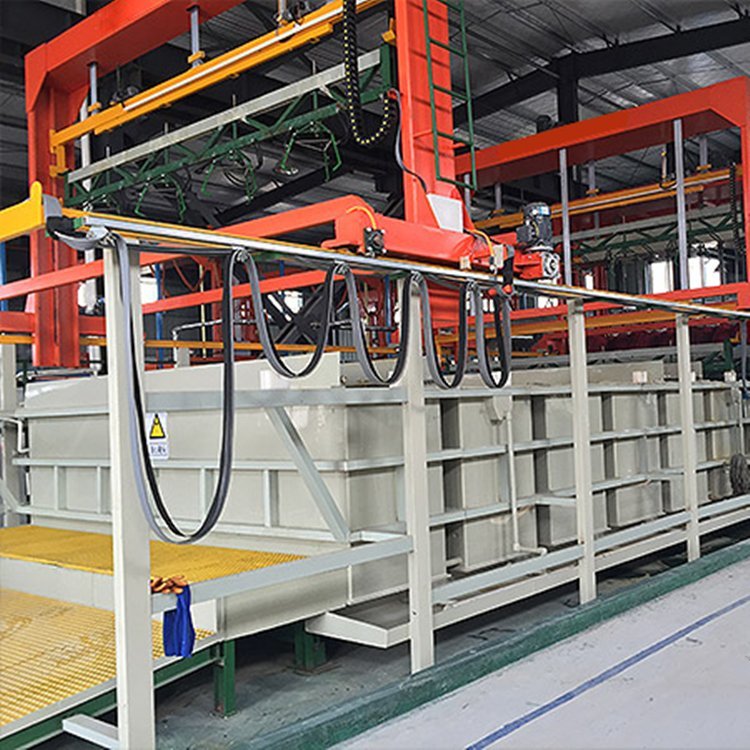

High-Temperature Resistant Automatic Anodizing Line with Steam Heating

1 set
MOQ
$200,000 to $500,000
Price
High-Temperature Resistant Automatic Anodizing Line with Steam Heating
Features Gallery Product Description Chat Now
Features
Specifications
Applications: For Aluminum Degreasing & Coloring
Steam Temperature: 80-90℃
Water Pressure: 0.3Mpa
Main Power Supply: 380±10%/50HZ
Environmental Temperature: 0℃~45℃ Is Most Suitable
Chillers: 20HP
Highlight:

high-temperature resistant anodizing line

,

automatic anodizing line with steam heating

,

automated anodizing line with warranty
Basic Infomation
Place of Origin: Dongguan
Brand Name: Hongshun
Certification: CCC/CE
Model Number: HS-2115
Payment & Shipping Terms
Packaging Details: film
Delivery Time: 75 days
Payment Terms: L/C,T/T
Supply Ability: 5 sets/month
Product Description
High-Temperature Resistant Automatic Anodizing Line with Steam Heating
High-Temperature Resistant Automatic Anodizing Line with Steam Heating for Aluminum Degreasing & Coloring

Our high-temperature resistant automatic anodizing line is specifically engineered for demanding aluminum surface treatment processes requiring elevated temperatures for degreasing and coloring operations.

Key Features:
  • Chemical degreasing tank constructed from 3mm 304 stainless steel with steam heating (0.2-0.5Mpa) reaching 80-90℃ for effective oil removal
  • 50mm rock wool insulation layer with 1mm 304 stainless steel outer cover to minimize heat loss
  • Four coloring tanks (3mm 304 stainless steel) with steam heating maintained at 50-60℃ for optimal color absorption
  • Reinforced A3 steel frames with heat-resistant paint to prevent deformation
  • 20HP air-cooled chillers for rapid cooling of anodizing tanks to 15-20℃
  • Omron PLC control system for automatic steam flow and chiller operation adjustment
  • Heat-resistant gaskets and electrical wiring for safe operation
  • PP duct exhaust system for fume removal
Equipment Working Conditions
Environmental temperature 0℃~45℃ is most suitable
Relative humidity ≤ 90%
Water pressure 0.3Mpa
Source of steam 0.2~0.5Mpa
Main power supply 380±10%/50HZ,25V-3000A rectifier, Refrigerator 22.5KW, Filter 8KW
Process Flow
High-Temperature Resistant Automatic Anodizing Line with Steam Heating 0
For a complete technical solution of Automatic Anodizing Line, please contact us. We will customize the design based on your product technical requirements and factory layout.
Installation and Training
  • Installation: We provide all installation details and perform on-site installation and debugging at your facility.
  • Training: Comprehensive on-site training covering normal operation, maintenance, troubleshooting, and emergency procedures.
Our Typical Customers
High-Temperature Resistant Automatic Anodizing Line with Steam Heating 1 High-Temperature Resistant Automatic Anodizing Line with Steam Heating 2
