Before Gluing Float Glass Washing Machine Compact Space Efficient Power Saving

Brand Name:	Hongshun
Model Number:	HS-BL850
MOQ:	1 set
Price:	$20,000 to $40,00
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Convey Height:

950mm±20 Mm

Work Width:

850mm (effective Maximum 850 Mm)

Transporting Velocity:

1-6m/min (variable Frequency Stepless Adjustable) ,normal Operating Speed 4m/min

Product Usage:

Flat Glass Cleaning

Total Power:

43.98KW

Product Warranty:

1 Year

Supply Ability:

5 sets / month

Highlight:

Before Gluing Float Glass Washing Machine

Space Efficient Float Glass Washing Machine

Compact Industrial Glass Washing Machine

Product Description

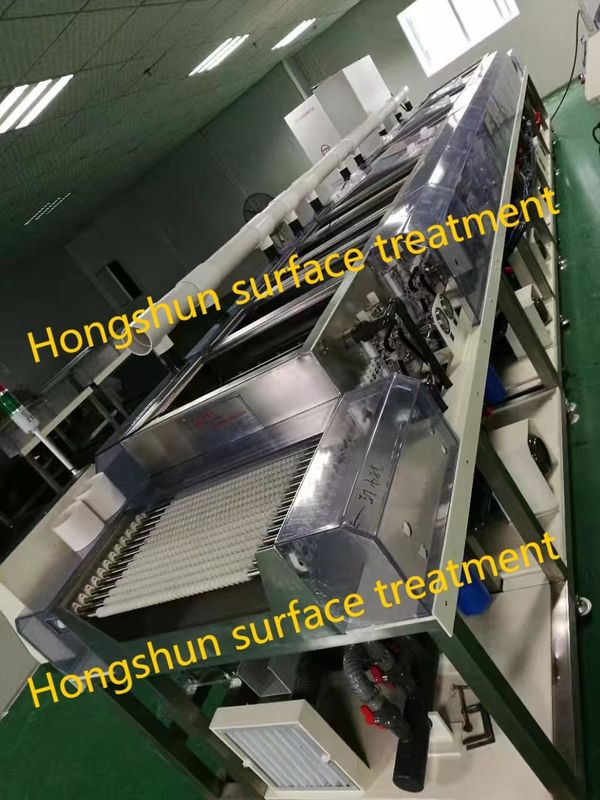

HS-BL850 Flat Glass Roller Brush Cleaning Machine

Compact, space-efficient glass cleaning machine designed for pre-gluing processes with power-saving features and advanced cleaning technology.

Cleaning Process Flow

Flat glass input → High-pressure spray washing → Air cutting 1 → Plate brushing and water washing for degreasing (2 sets) → Roller brushing and water washing for degreasing (2 sets) → Plate brushing and water washing for degreasing 2 (2 sets) → Roller brushing and water washing for degreasing 2 (2 sets) → Air cutting 2 → DI water spray washing → Pure water roller brushing and water washing (4 sets) → Medium-pressure spray washing → High-pressure spray washing → Pure water washing → Three sets of air knife drying → Material discharge + static elimination

Workpiece Specifications

Substrate Size (MIN)	200 × 300 mm
Substrate Size (MAX)	730 × 900 mm
Substrate Thickness	0.4 - 3 mm

Technical Specifications

Parameter	Specification
Conveyor Height	950mm ± 20mm
Work Width	850mm (effective maximum 850mm)
Driving Mode	Spiral gear transmission (external transmission)
Transport Velocity	1-6 m/min (variable frequency stepless adjustable) Normal operating speed: 4 m/min
Direction of Flow	Left in and right out (customer determined) No snake phenomenon allowed during glass cleaning
Cleaning Finish	No scratches, no water stains, no roller marks, no dirt (100 grade clean room / 3000lux), no breakage
Device Size	Approximately 9490 (L) × 2000 (W) × 1350 (H) mm (excluding electric control cabinet and air cabinet)

Resource Consumption

Resource	Consumption
Total Power Consumption	43.98 KW
Total Gas Consumption	7200 L/MIN, pressure 0.6 MPa
Pure Water Consumption	20-30 L/Min (pure water of more than 15 megΩ provided by customer)
Total Air Extraction	5 M³/min (exhaust system provided by customer)
Power Source	3φ 380V ± 10% 50Hz
Water Supply	Pure water, pressure 0.2 MPa

Advanced Design Features

Water and electricity saving design
Comprehensive filter system: water, liquid and gas filtration
Nozzle pressure adjustment with pressure gauge and ball valve control
Frequency converter for main transmission
Frequency converter for brush operation
Overtemperature protection with upper limit of 50℃ for water tank spray liquid
Pump protection with high, medium and low liquid level protection for tanks
Automatic water replenishment via electromagnetic valve at middle and high tank levels
